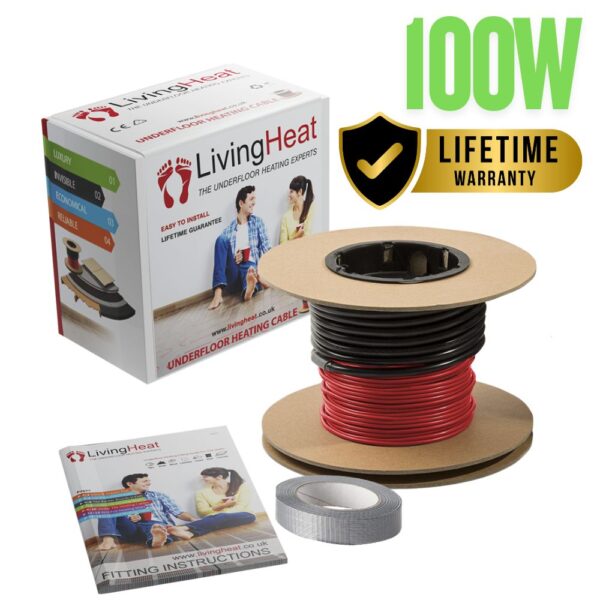

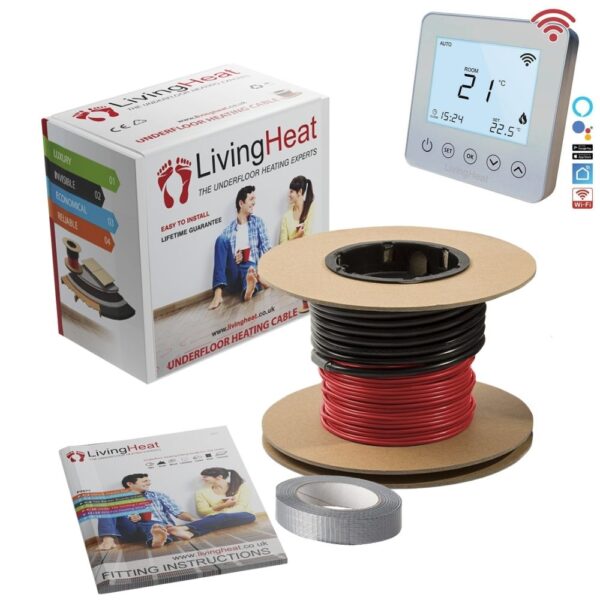

Underfloor Heating Cable 100W/M²
From: £17.99 Inc. VAT
£14.99 Ex. VAT
UFH Loose Cable
100 W/M²
The 100 W/M² underfloor heating cable is designed to provide efficient background or comfort heating in your home or commercial space.
When spaced at 120 mm, this cable delivers 100W/M², which provides a comfortable secondary heat source under the floor.
For optimal performance, we recommend covering 70–90% of the available floor area.
Installing an insulation layer beneath the heating cable is highly recommended, especially on concrete subfloors, as concrete can absorb heat and reduce system efficiency.
Our detailed installation guides will help you plan and fit your system correctly. For personalised advice or a free design service, call us at 01803 316060.
Features
- 100 W/m² when spaced at 120 mm for even, reliable heat
- Suitable for domestic and commercial installations
- IPX7 waterproof rating for peace of mind
- Ideal as background or comfort heating
- Compatible with most floor types, including tile, stone, and engineered wood
- Designed to work with HC Decoupling Mat
- Compatible with XPS Insulation Boards and Tile Backers
- Can be embedded in Flex Adhesive or Self-Level
- Available in multiple wire sizes
- Longest UK wire runs up to 200 LM
- Free technical support and after-sales assistance
- Lifetime guarantee for confidence in long-term performance
- Next-day delivery service

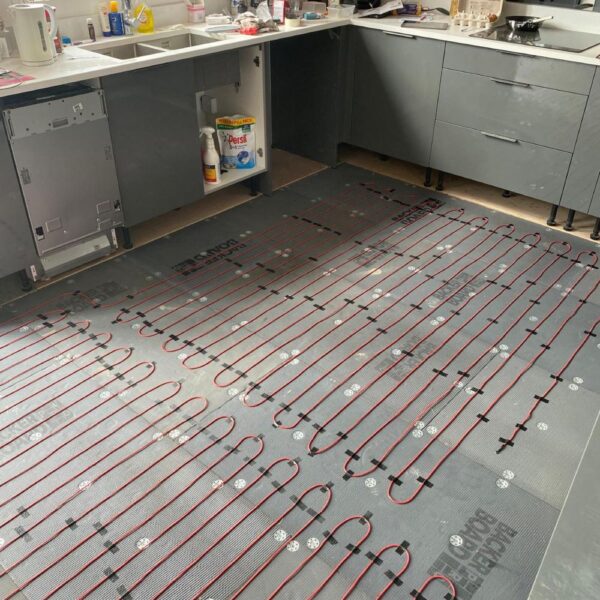

Underfloor Heating Cable Floor Build-Up
Start with a clean subfloor, either plywood or concrete. Apply a thin 4 mm bed of flexible adhesive to secure your insulation boards.
The insulation layer creates a stable base for laying your heating cable.

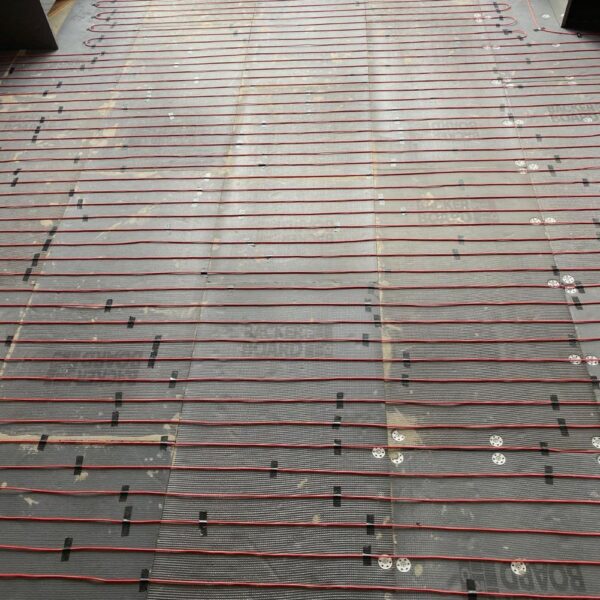

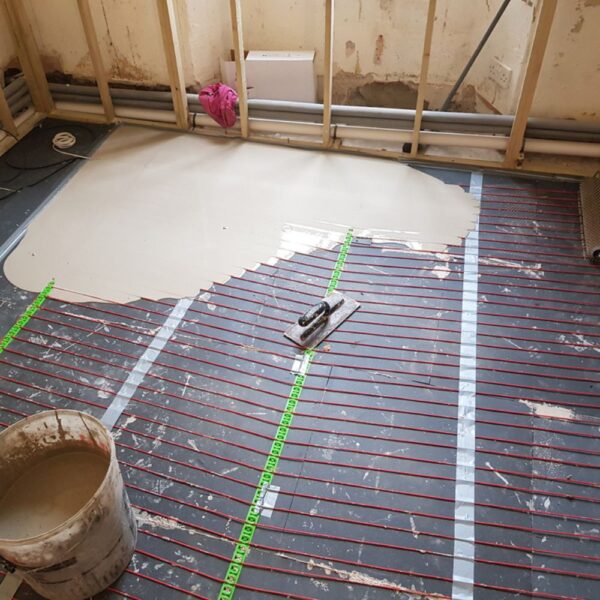

Lay the 100 W/m² cable at 120 mm spacing. You can then either embed the cable directly into the adhesive or cover it with a self-levelling compound to provide even heat distribution and protection during tiling.
Finally, lay the tiles using a standard 6 mm bed of flexible adhesive. Ensure the adhesive layer is even for optimal heat transfer and cable coverage.
Example Floor Build-Up:
- 4 mm bed of flexible adhesive
- 6 mm insulation board (10 mm & 20 mm options also available)
- 2.5 mm underfloor heating cable 100 W/m², embedded in adhesive or leveling compound
- 6 mm bed of tile adhesive
- 10 mm tiles (example)
Free Underfloor Heating Design Service
Living Heat provides a free underfloor heating design service to simplify your project.
Our team can calculate the ideal cable layout and coverage to suit your floor and heating requirements.
For a free quote or expert guidance, call 01803 316131.
Our advice is always free, and we will recommend the most efficient underfloor heating solution for your home or commercial space.
Product Reviews
Technical Information
Product Overview
Product Name: Underfloor Heating Cable
Brand: Living Heat
Heating Type: Electric loose cable underfloor heating
Application: Under-tile underfloor heating system
Electrical & Thermal Performance
Heat Output: 100 W/m² (spacing dependent)
Heating Function:
Designed primarily for secondary heating
Can be used as primary heating when covering approximately 70–90% of the floor area
Recommended Coverage:
At least 80% of usable floor space for effective secondary heating
Cable Construction & Layout
Cable Type: Loose underfloor heating cable

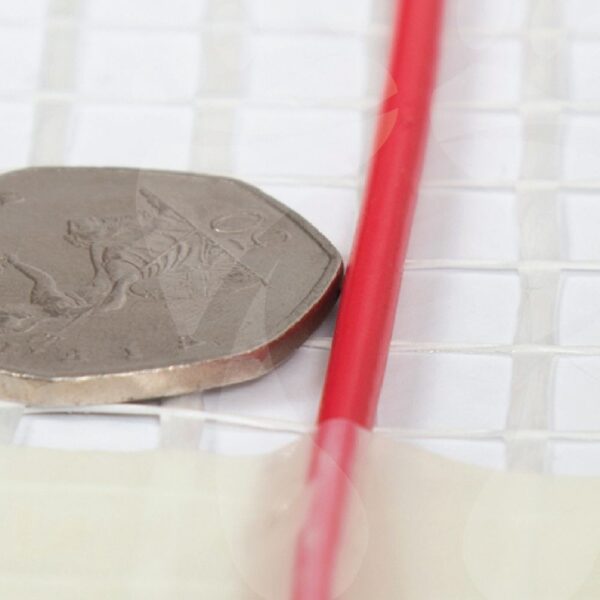

Cable Thickness: Approx. 2.5 mm (embedded in adhesive or levelling compound)

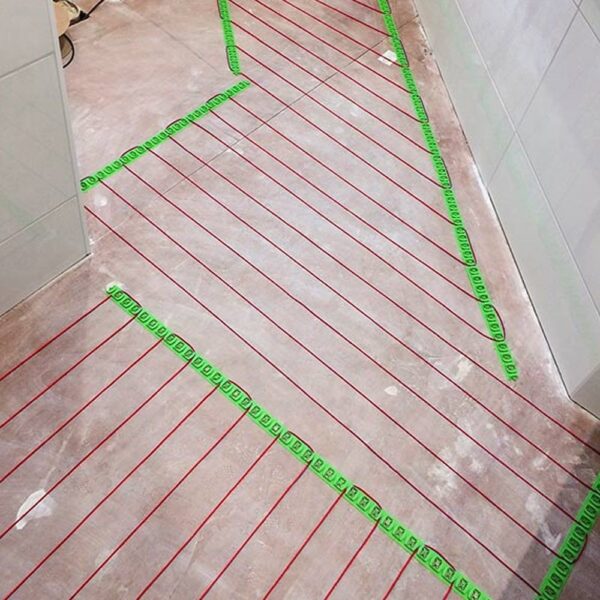

Installation Flexibility:
Fully free-form layout
Ideal for irregular room shapes and areas with obstacles
Available Lengths: Range of cable lengths to suit various room sizes
Maximum Continuous Cable Length: Up to 200 linear metres
Installation Method
Installation Type:
Installed within flexible tile adhesive or self-levelling compound
Recommended Subfloor Preparation:
Insulation layer strongly recommended, particularly on concrete subfloors, to reduce heat loss and improve warm-up times
Installation Environments:
Suitable for both domestic and commercial applications
Floor Compatibility
Compatible Floor Finishes: Wide range of tiled and finished floors
Compatible Systems & Accessories:
HC Decoupling Matting
XPS Insulation Boards
Tile Backer Board Insulation
Typical Floor Build-Up
Indicative floor build-up (thicknesses as stated):
2–4 mm flexible adhesive (bonding insulation boards)
6 mm insulation board
Alternative options: 10 mm & 20 mm
2.5 mm 100 W/m² underfloor heating cable, embedded in adhesive or levelling compound
4–7 mm flexible tile adhesive
Tiles (10 mm in example)
Total build-up height will vary depending on materials used.
Safety & Compliance
Ingress Protection Rating: IPX7 (waterproof)
Usage Rating: Suitable for domestic and commercial installations
Warranty, Support & Delivery
Warranty: Lifetime guarantee
Technical Support: Free technical support before, during, and after installation
After-Sales Support: Included
Delivery: Next-day UK delivery available
Design Service: Free professional UFH design service
