Wi5 WiFi Thermostat
From: £67.99 Inc. VAT
£56.66 Ex. VAT

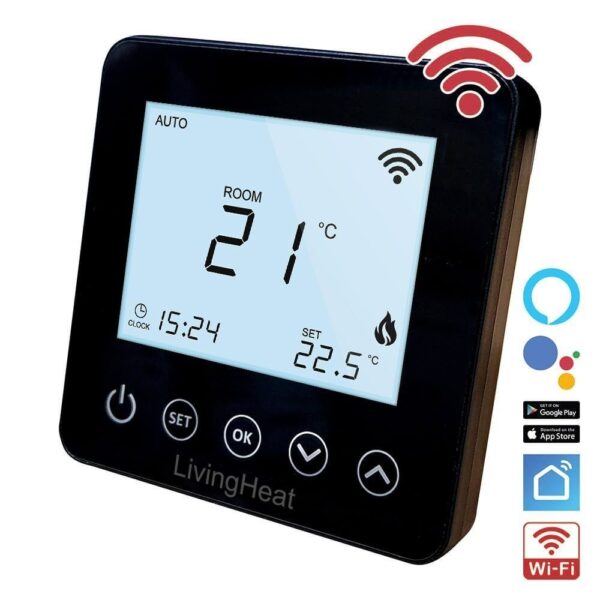

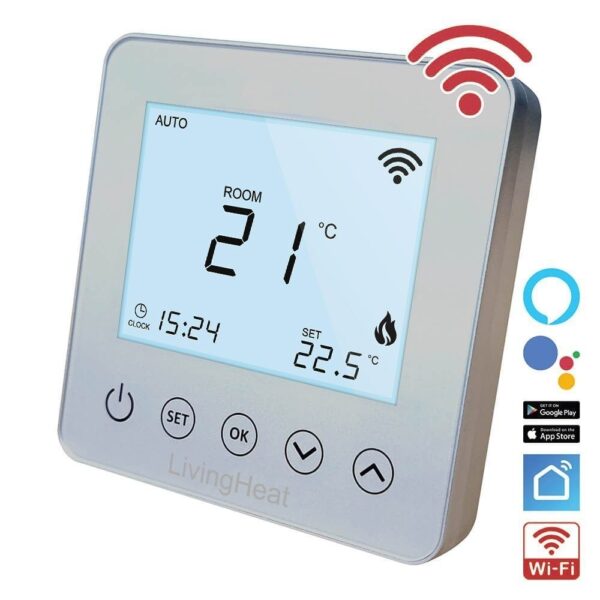

Wi5 Wi-Fi Smart Thermostat
Reliable Smart Control For UFH

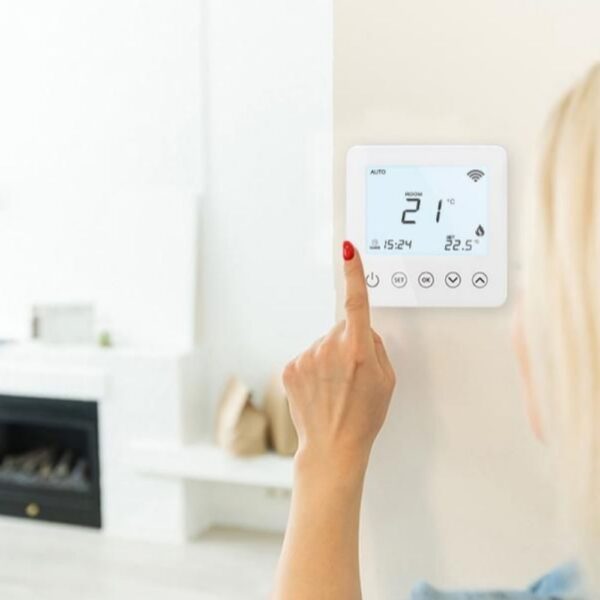

The Wi5 Wi-Fi Underfloor Heating Thermostat delivers advanced smart control in a sleek, modern design.
Its ultra-flat gloss screen, micro bevel edges, and intuitive interface make the Wi5 simple to operate while offering powerful control features.
The Wi5 works with all electric underfloor heating systems and includes air and floor temperature sensors to maintain precise, efficient heating throughout your home or office.
Connect the Wi5 to your Wi-Fi network and enjoy full remote control via smartphone or tablet. Adjust your heating from anywhere in the world, anytime, for ultimate convenience and comfort.
Link multiple Wi5 thermostats to a single device or multiple devices to control several zones at once, perfect for both residential and commercial installations.
Use the Wi5 to manage floor temperature, create smart schedules, and simplify daily comfort control.
For added peace of mind, the Wi5 comes with a 1-year manufacturer’s warranty.
What You Need to Know – Technical Overview
The Wi5 handles heating loads up to 16 amps (3600 watts).
For larger areas or higher loads, install a relay or contactor, or split the system into zones with additional thermostats.
Always connect the thermostat to a dedicated power supply from the main consumer unit and protect it with an appropriate RCD at the fuse board or within the underfloor heating power supply.
Free Technical Support
All Living Heat thermostats include detailed wiring diagrams and clear fitting instructions.
Our expert technical support team is ready to answer questions and help you install and set up your Wi5 thermostat quickly and easily.
Features & Technical Specifications
| Wi5 Thermostat Specifications | |
|---|---|
| Wi-Fi Connectivity to Smart Devices | Control heating instantly from anywhere with the smartphone app |
| Full Fitting Instructions & Free Phone Helpline | Floor Temperature Sensor |
| Low-Profile Design | Fits minimum 35mm deep single-gang back box |
| 1-Year Manufacturer’s Warranty | Supply Voltage: 230 / 240V |
| 16 Amp / 3600 Watt Maximum Load | Temperature Range: 1°C – 70°C |
| Extendable Floor Probe (3–15m) | Free App for iOS & Android Devices |
| 3 Programming Modes: 5+2, 6+1 or 7-Day | Air & Floor Temperature Sensors |
Free Underfloor Heating Design Service
Living Heat offers a free underfloor heating design service to make installation simple and stress-free.
For a free quote or more information, call 01803 316131.
Our expert advice is always free, and we can recommend the most efficient underfloor heating system for your project.

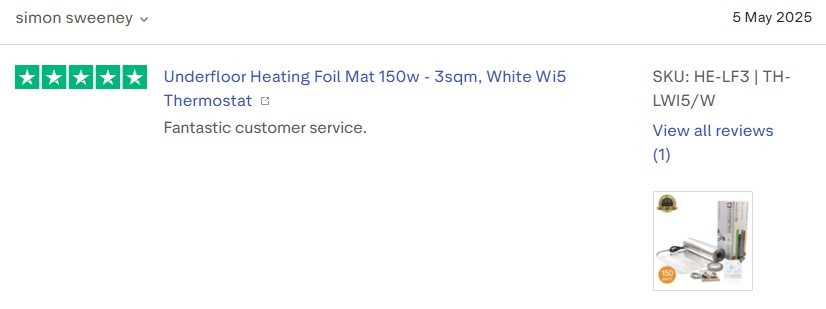

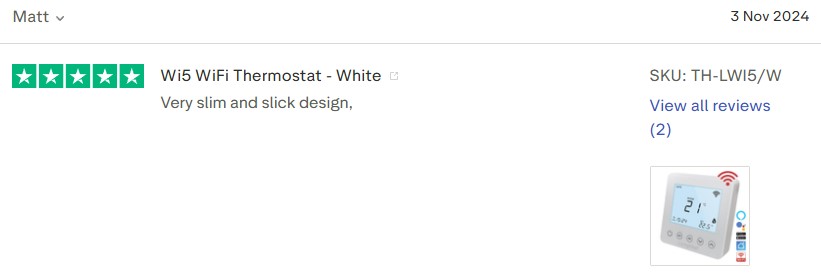

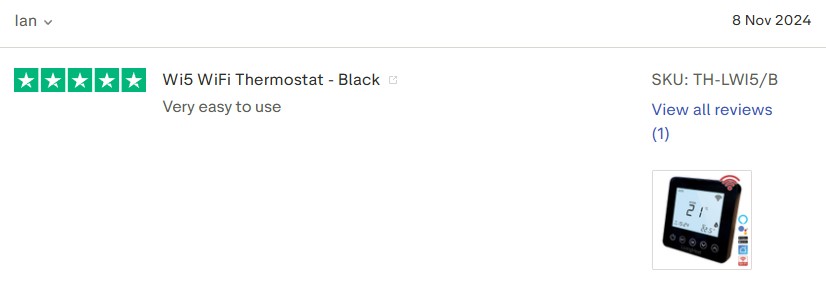

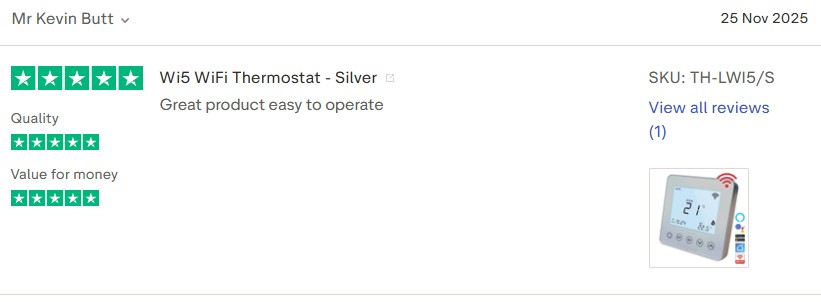

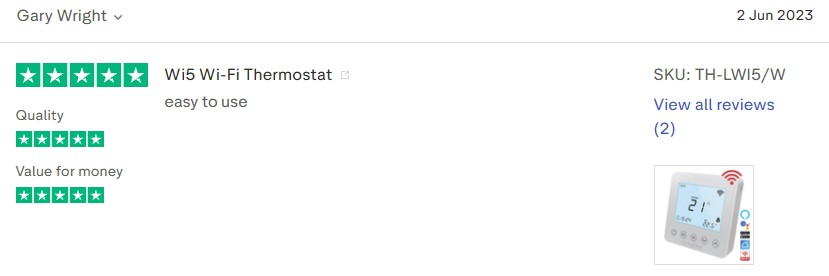

Product Reviews
Technical Information
Wi5 Wi-Fi Smart Thermostat
Technical Data Sheet
The Wi5 Wi-Fi Thermostat is a smart, programmable thermostat with full remote control via smartphone or tablet.
It combines modern design with a low-profile glossy screen and intuitive touch interface.
Compatible with all electric underfloor heating systems, it includes built-in air and floor sensors for accurate temperature management.
Product Information
Product Type:
Wi-Fi Smart Thermostat
Application:
Electric Underfloor Heating Systems
Control Mode:
Fully Programmable with Manual Override
Smart Connectivity:
Wi-Fi Control via iOS / Android App, Remote Access from Anywhere
Display Type:
Ultra-Flat Gloss Touch Screen
Power Supply:
230 / 240V AC
Maximum Switching Load:
16 Amps (3600 Watts)
Temperature Control
Temperature Adjustment Range:
1°C – 70°C
Temperature Sensors:
Built-in Air Sensor and External Floor Sensor
Floor Sensor Length:
3m (Extendable up to 15m)
Programming Options:
3 Period Modes: 5+2, 6+1, or 7-Day Schedule
Installation & Construction
Installation Method:
Flush Mounted
Back Box Requirement:
Single Gang – Minimum 35mm Depth
Design:
Low-Profile, Modern Gloss Finish
Protection Rating:
IP20 – Indoor Use Only
Output Type:
Relay Switching
Compatibility
Suitable Heating Systems:
Heating Mats
Heating Cables
Foil Heating Systems
Compliance & Warranty
Compliance:
CE Marked
Warranty:
1-Year Manufacturer’s Warranty
Installation Notes
The Wi5 thermostat must be installed by a qualified electrician in accordance with current wiring regulations.
A dedicated power supply with appropriate RCD protection is required.
For loads exceeding 16 amps or larger heating areas, additional contactors or zoning with multiple thermostats may be required.
Technical Support & Design Service
All Living Heat thermostats come with full wiring diagrams and comprehensive fitting instructions.
Free technical support is available for guidance or installation advice.
Living Heat also offers a free underfloor heating design service.
For a free quote or expert advice, contact 01803 316131.
