Tile Backer Board Washers

Strong Fixings for Reliable Tile Backer Board Installation

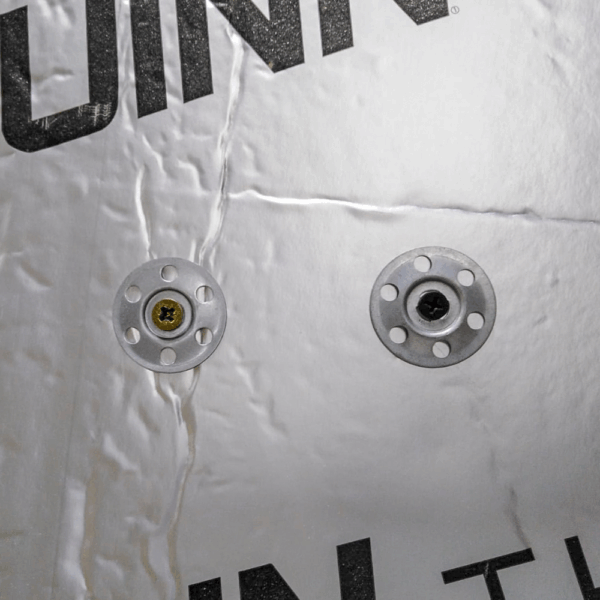

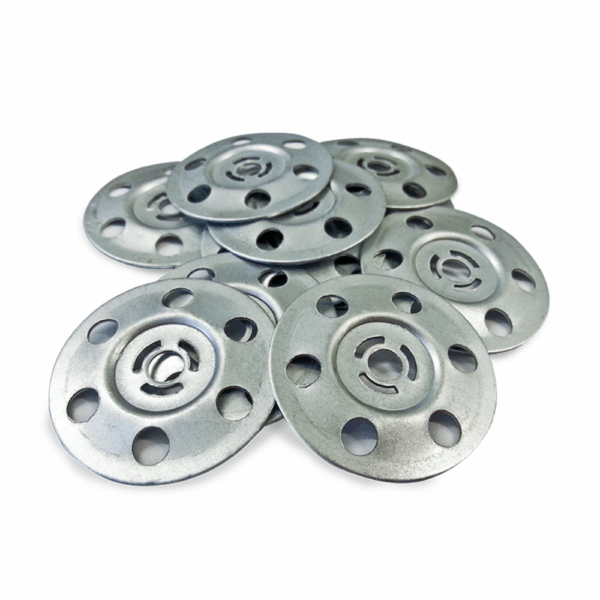

Tile Backer Board Washers are high-quality metal fixings designed to secure tile backer and insulation boards to walls and floors.

They hold each board firmly in place, creating a smooth, stable surface that’s ready for tiling or underfloor heating installation.

Made for a Perfect Fit

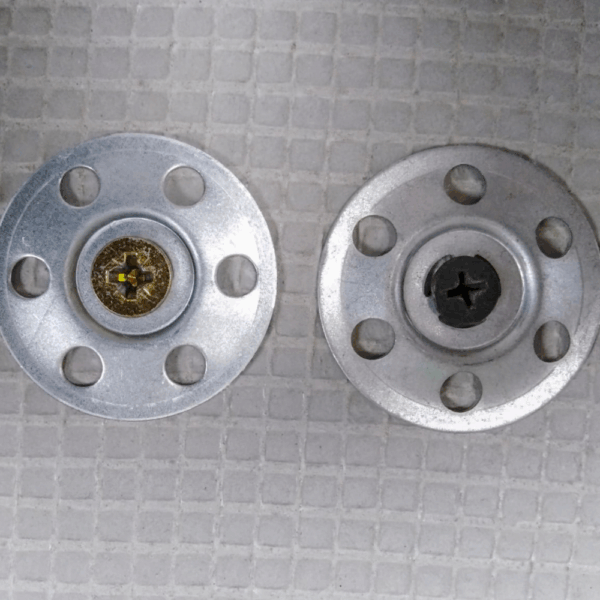

Each washer has a precision countersunk centre that allows the screw to sit flush without damaging the surface.

The flat rim keeps boards level, ensuring tiles and finishes align perfectly across the installation.

Extra Grip and Bond Strength

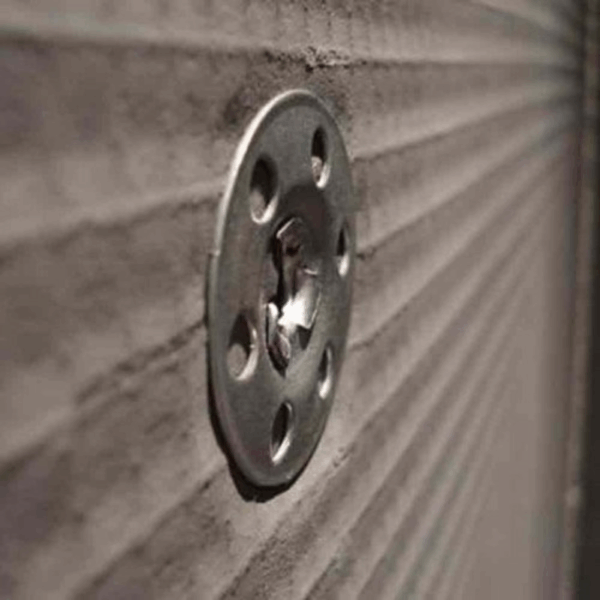

The perforated steel surface lets adhesives, plasters, and thinset mortar bond securely through the washer.

This added keying improves adhesion, reduces movement, and increases long-term stability for tiled walls and floors.

Built to Last

Manufactured from zinc-coated galvanised steel, these washers are rust-resistant and corrosion-proof.

They’re ideal for wet rooms, bathrooms, kitchens, and other humid environments where lasting durability is essential.

Technical Details

• Product Name: Tile Backer Board Washers
• Material: Zinc-Coated Galvanised Steel (Anti-Rust Coating)

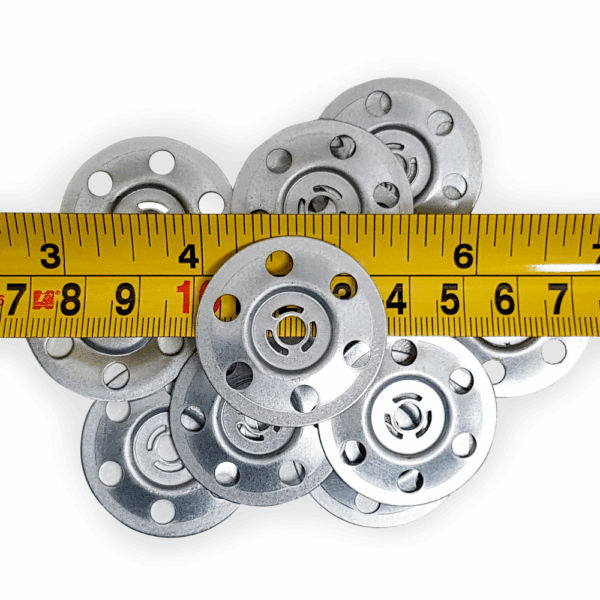

• Diameter: 35 mm (±1 mm)
• Centre Hole: 5 mm – fits most standard fixing screws
• Thickness: 0.6 mm
• Surface: Perforated for maximum adhesive bond strength
• Applications: Floors, walls, tile backer boards, fibre cement boards, and plasterboard systems
• Recommended Use: 15 washers per 1200 x 600 mm board / 300 mm centres
• Compatible With: Living Heat Tile Backer Boards, Wedi, Marmox, Jackoboard, and other insulation board systems

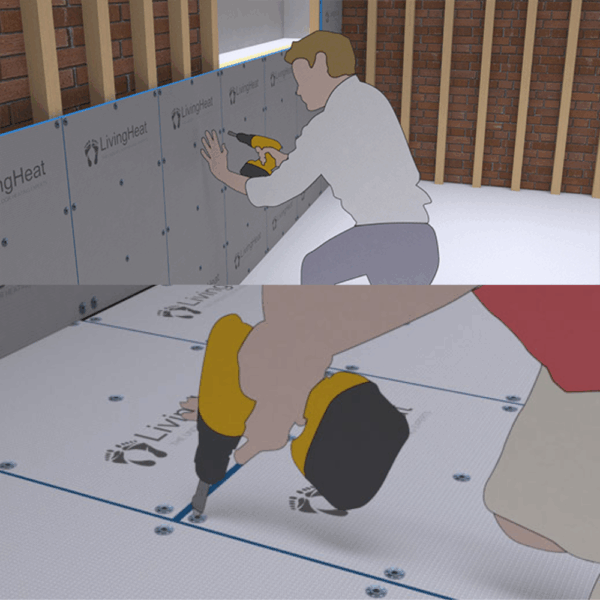

Simple Installation

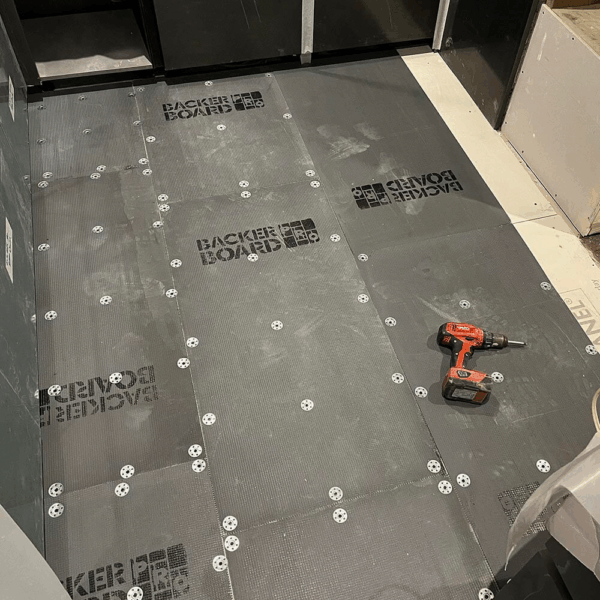

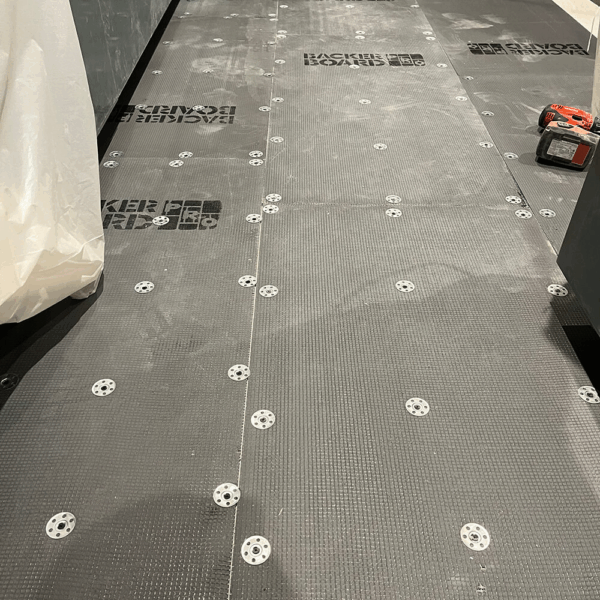

Use around 15 washers per board for a secure and even fixing.

Ensure each board is tight and stable before tiling to prevent movement.

Suitable for both wall and floor screw fixings in residential and commercial projects.

Tile Backer Board Washers from Living Heat are quick to fit, corrosion-resistant, and built for long-term reliability.

They deliver strong, even support for a clean, professional finish in any tile backer or insulation board installation.
