Underfloor Heating Mats 200w


  • Low Profile Under Tile Mat – 3mm
  • Domestic Or Commercial Installs
  • IPX7 Waterproof Rating
  • Suitable As Secondary / Primary Heat
  • Compatible With Most Floor Types
  • Can Be Used With SF Decoupling
  • Compatible With XPS & Tile Backers
  • Embed In Adhesive Or Self Level
  • Multiple Wire Sizes Available
  • Largest Mat In UK At 12SQM
  • Free Technical Assistance
  • After Sales Support
  • Lifetime Guarantee
  • Next Day Delivery Service
SKU: TM200 Categories: , Tags: , , , , , ,
IMPORTANT! All our electric underfloor heating systems must be run via suitable 'Fused Spurs'. Please consult an electrician if in doubt.

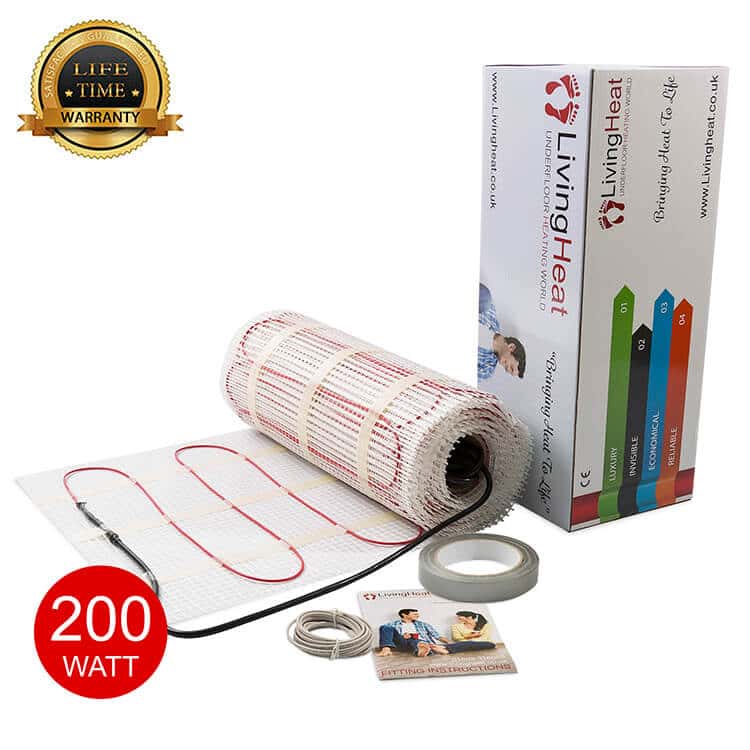

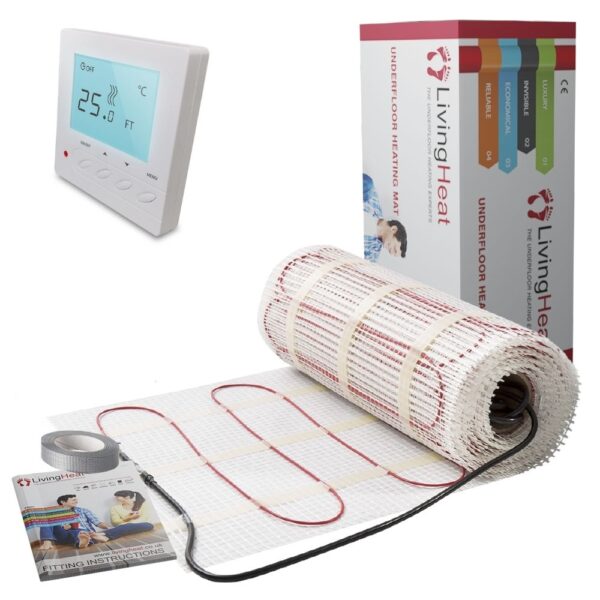

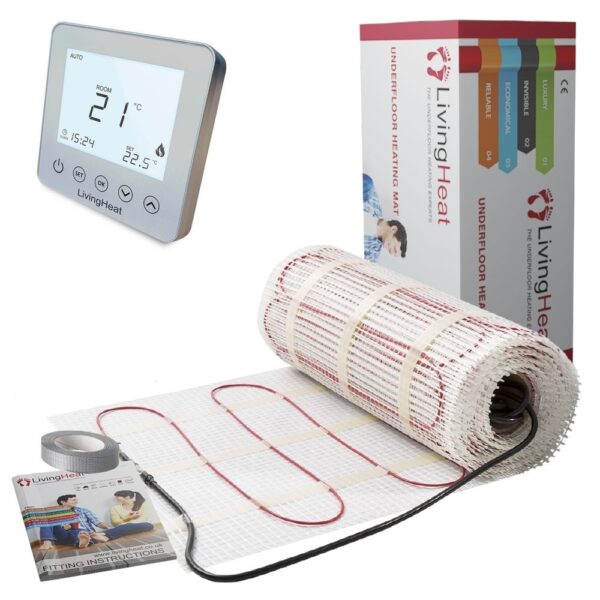

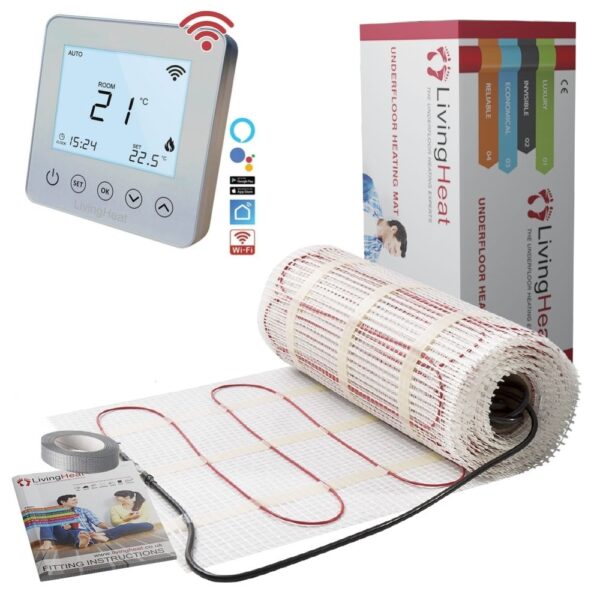

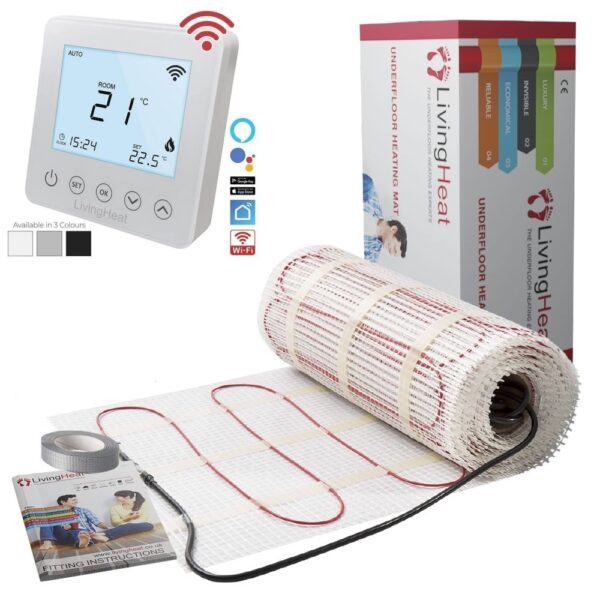

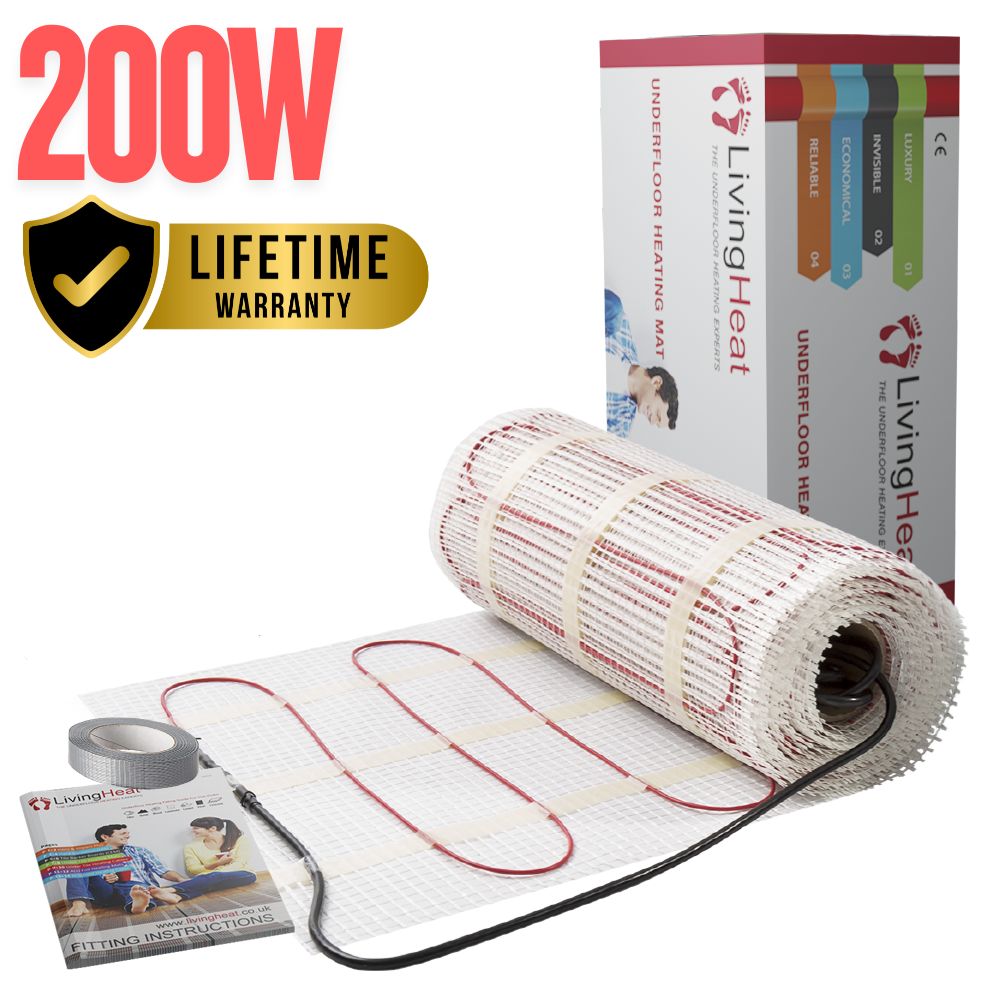

Underfloor Heat Mat 200w

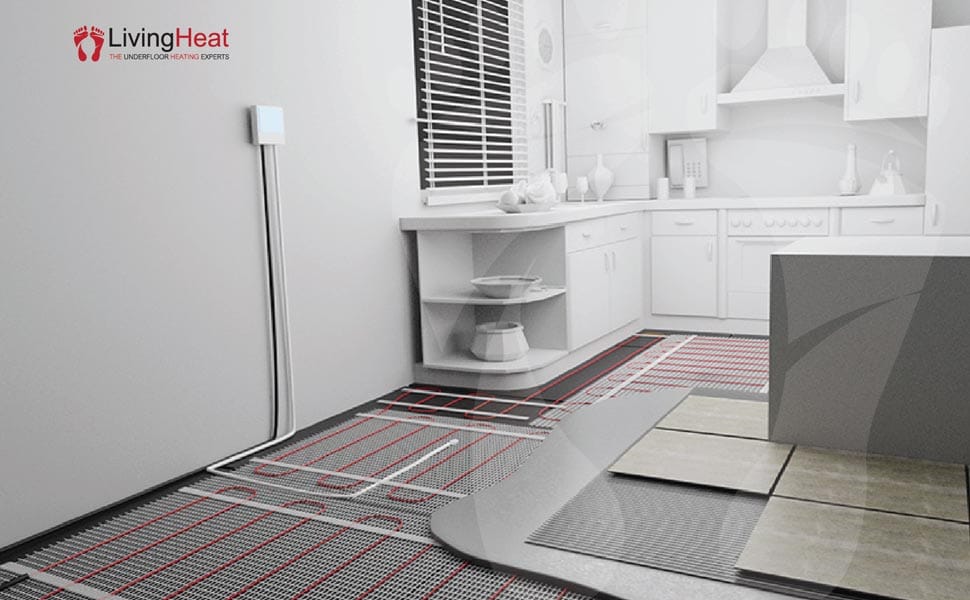

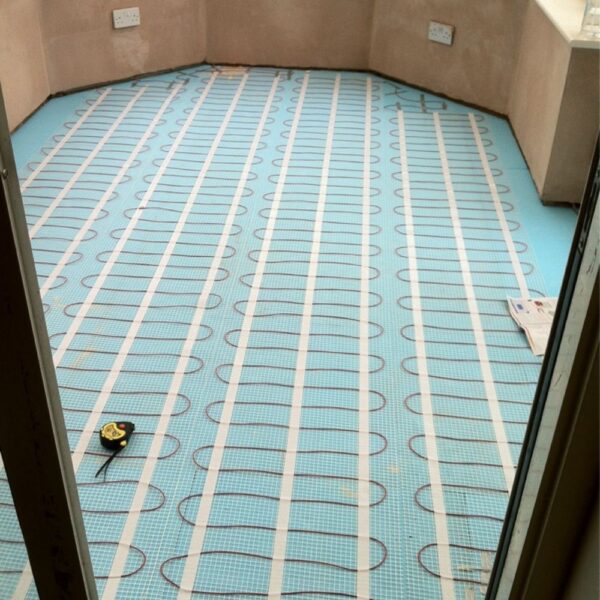

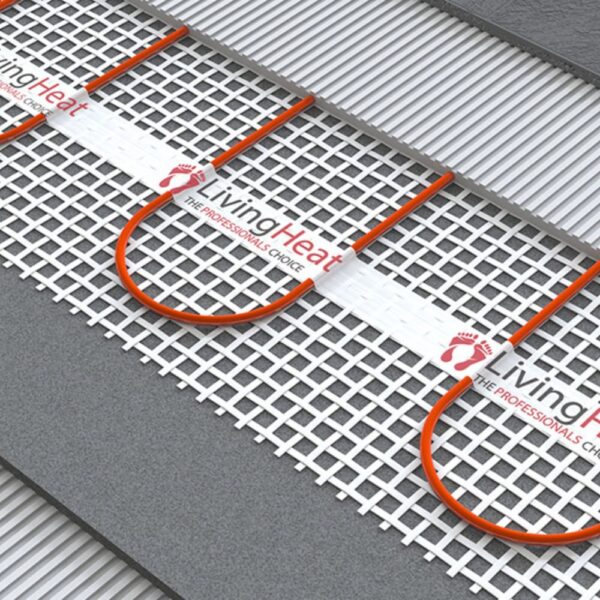

Underfloor Heat mat 200w/m2. The perfect choice if looking to achieve a primary heat source with your under floor heating system. As long as sufficient floor area is achieved (over 80% floor coverage), then no other heat source would be required. The mats are very easy to install. The mats are available in sqm sizes ranging from 0.5sqm to 12sqm, with larger areas required to be covered with more than the single mat. As the mats are 0.5m in width, they are simply rolled out, with the mesh backing cut and then mat rotated to cover your desired heated area. This makes them an ideal option in square or rectangular shaped areas. The Living Heat mat can be manipulated around objects and corners, with the cable being removed from off the mesh backing. We also strongly recommend that an insulation board is installed directly under the heating system to drastically increase the response and efficiency of the heating. This is especially the case on a concrete sub floor, as the concrete substrate will absorb the heat before it eventually risings up into your floor. Insulation is still advised even if the sub floor is already well insulated If you have any questions or would just like a little advice take a look at our installation guides. Finally give us a call for a personal and also free design service on 01803 316060.

A choice of underfloor heating thermostat

We offer one of the largest ranges of thermostat options which is ever expanding. All our Living Heat thermostats will fit a standard single gang back box. The maximum load of thermostats is 16amps which gives them the ability to control up to 3600 watts without the need for a relay or contactor. These industry leading thermostats are all designed to be easy to use and install. To find out more about each underfloor heating thermostats unique features.

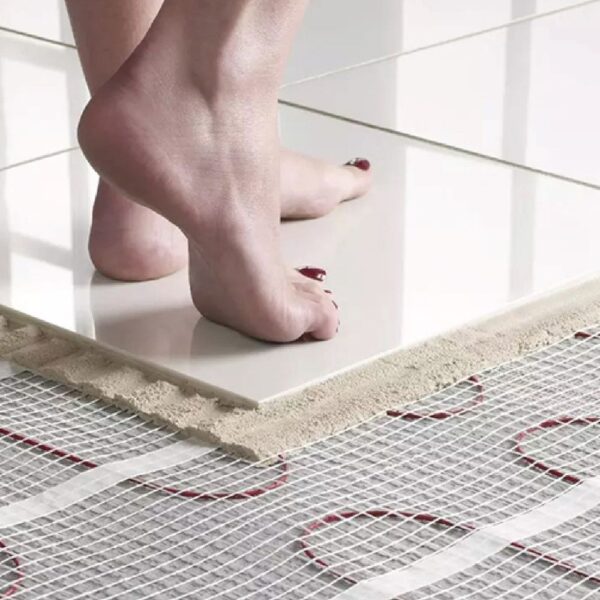

Underfloor Heating Mats Floor Build Up

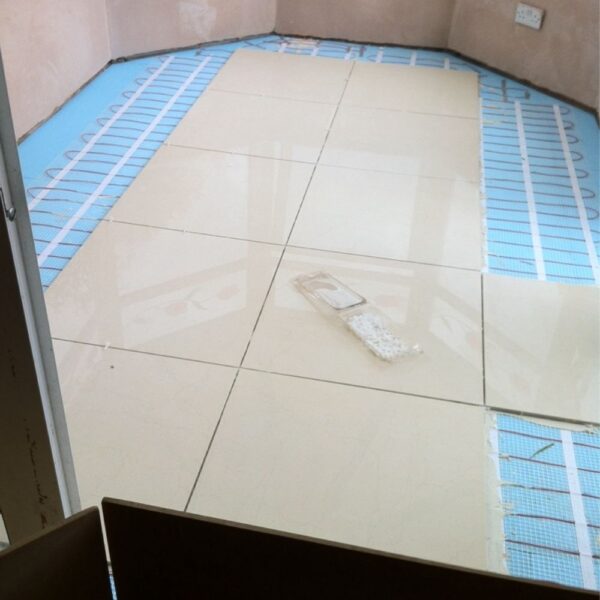

Starting at the sub floor which can be either wood or concrete. The following layer will be a thin bed of flexible adhesive about 4mm thick to stick down your insulation boards. Next you will have your insulation board itself. Creating a base to lay your underfloor heating mats. Once the mats are laid you have two options. In this example we have shown the tiles being laid directly onto the heating mats however a self levelling compound can also be poured over the cables prior to tiling. Providing an even conduction of heat and a protective layer whilst tilling. And finally the tiles can be stuck down with a standard 6mm bed of flexible adhesive. Please also ensure that the tiles are laid with an even bed of adhesive for equal heat distribution and cable coverage. So in conclusion the floor will be raised dependent on a few variables by:

  • 3mm bed of flexible adhesive.
  • 6mm insulation board. (10mm & 20mm insulation also available).
  • 3mm Underfloor Heating mats 200w. Enveloped into levelling or tile adhesive.
  • 5mm bed of tile adhesive.
  • Tiles in this example 10mm tiles

Making a total additional floor height of 27mm dependent on chosen variables of insulation and tile heights. Underfloor Heat Mat Living Heat Underfloor Heating Design Service At Living Heat we offer a free design service to make the whole process a little easier. If you would like a free quote or just a little more information please feel free to get in touch with us on 01803 316131. Our time and advice is free and we can recommend the best underfloor heating system for you.

Additional information


, , , , , , , , , , , , , , , ,

Supply Voltage

230/240v 50hz

Mat Width


Connection tail

3m long cold / connection tails.


Full fitting instructions and warranty card.


Lifetime warranty on heating system.


Free technical help line.

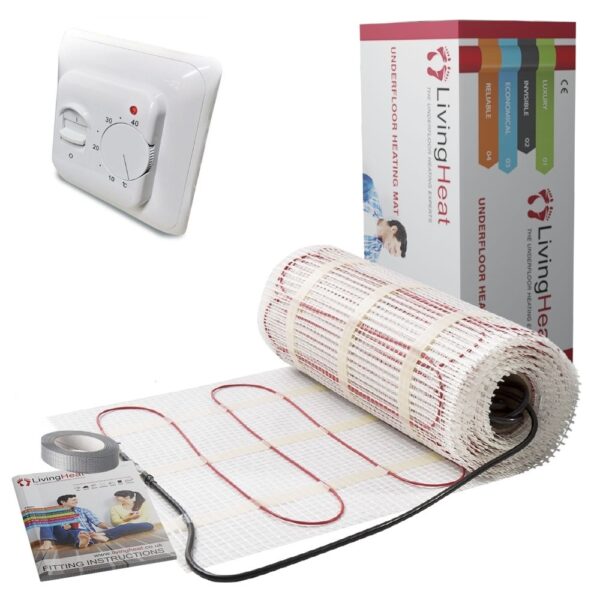

M5 Thermostat

Manual Thermostat
Simple Control
Large LED

M100 Thermostat

Manual Thermostat
On/Off Switch
Turn Dial

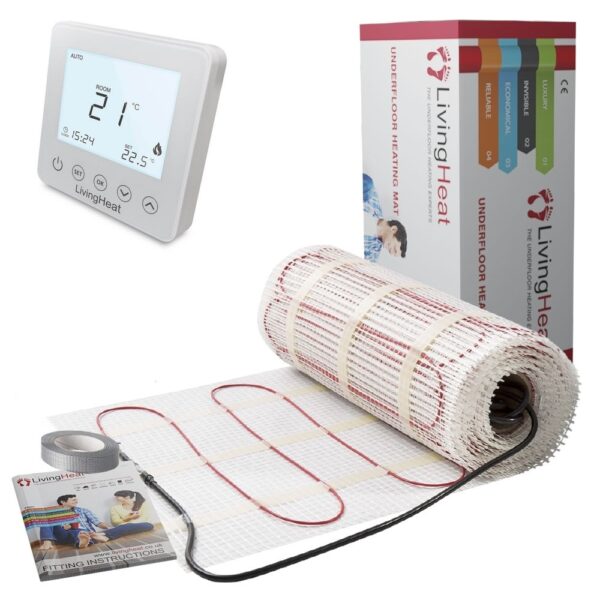

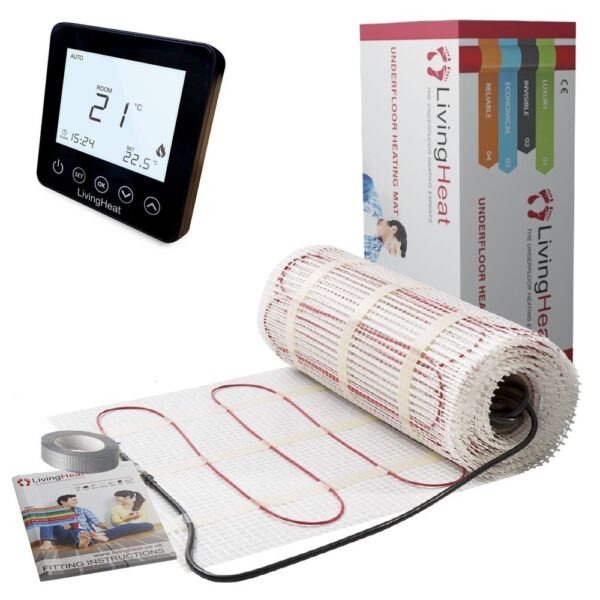

T5 Thermostat

Touch Screen
Large LED Screen

D600 Thermostat

Push Button
Large LED Screen

T700 Thermostat

Touch Screen
Large LED Screen

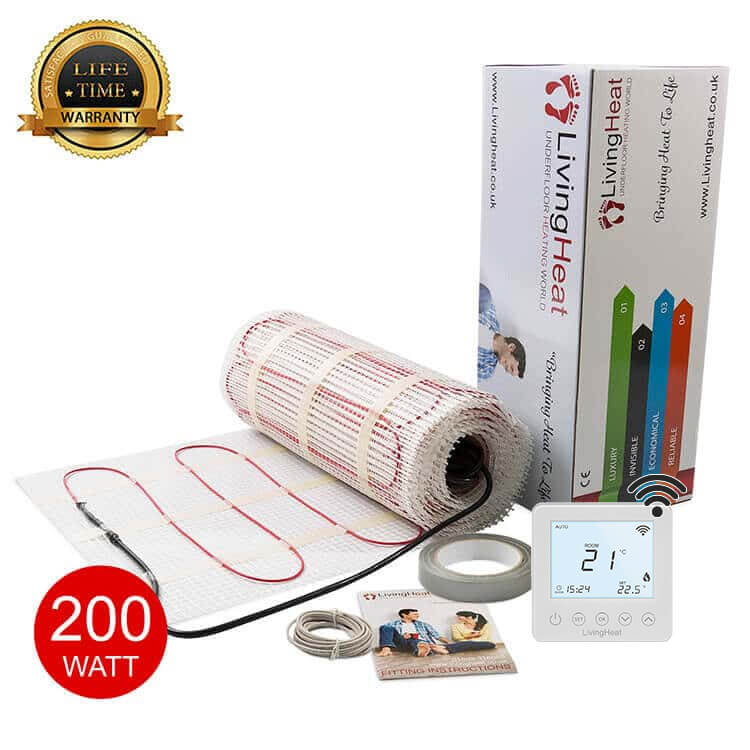

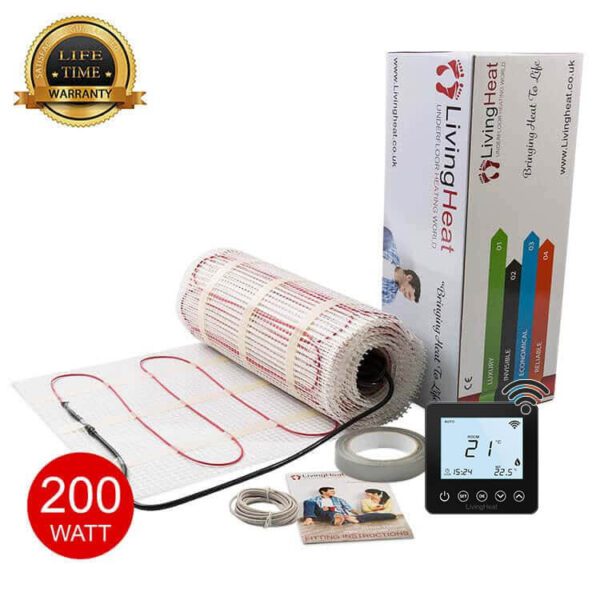

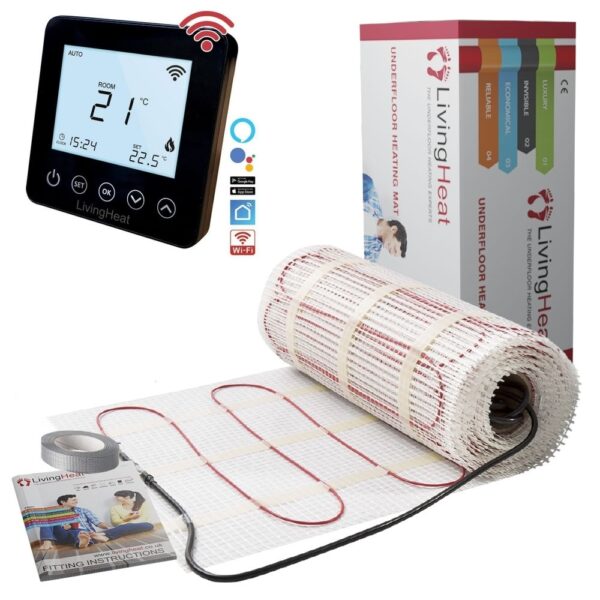

Wi5 Thermostat

Touch Screen
Large LED Screen
Wi-Fi Compatibility

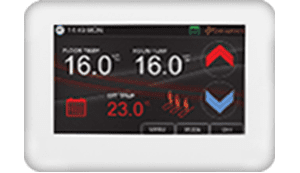

CT1000 Thermostat

Colour Touch Screen
Large LED Screen

i8 Thermostat

Touch Screen
Large LED Screen
Wi-Fi Compatibility


Electric Underfloor Heating Fitting Instructions

This PDF (1.85mb) instruction guide covers Living Heat Underfloor Heating Mats and Loose Cable Systems as well help and advice regarding installation of suitable hard and tile backer board insulation boards. This guide should answer most questions you may have regarding installing electric underfloor heating systems, but if you still have questions please feel free to contact us and one of our technical team will be happy to help.
