Tile Backer Thermal Insulation Boards

From: £8.99 Inc. VAT
£7.49 Ex. VAT

Part No: N/A

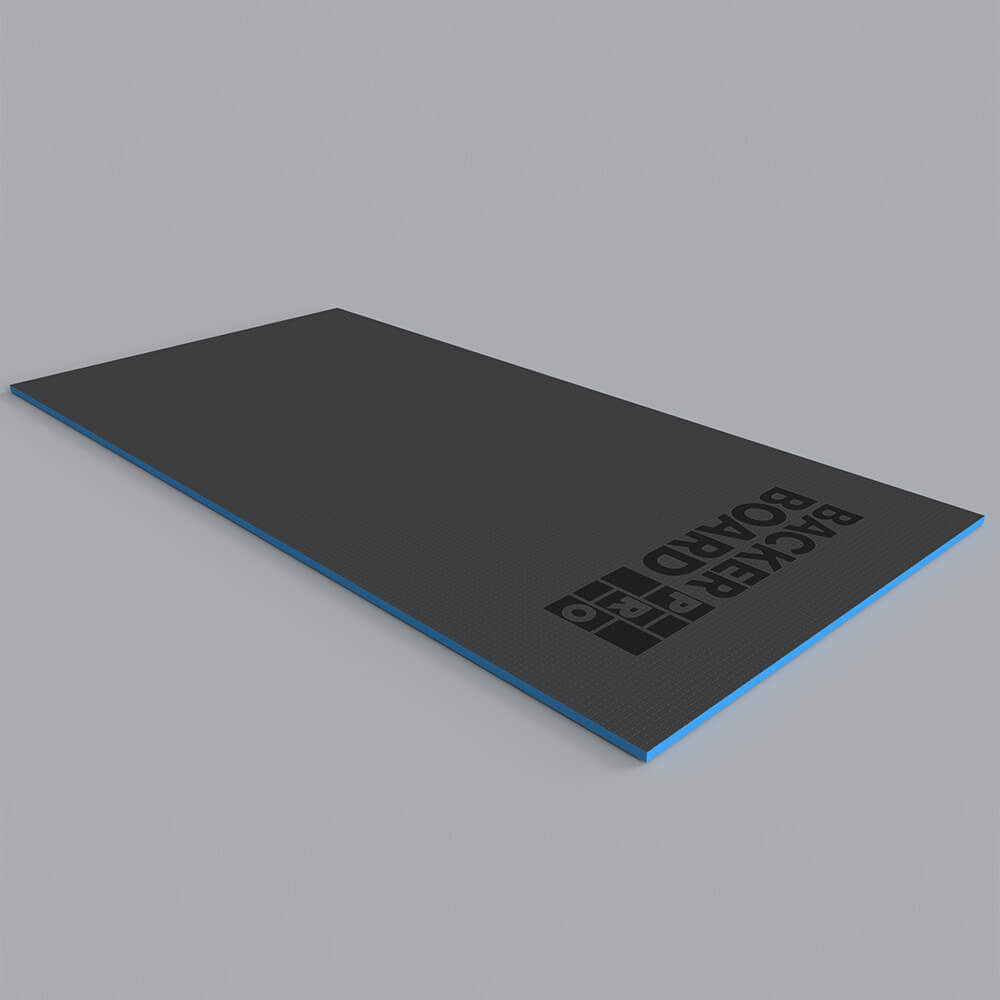

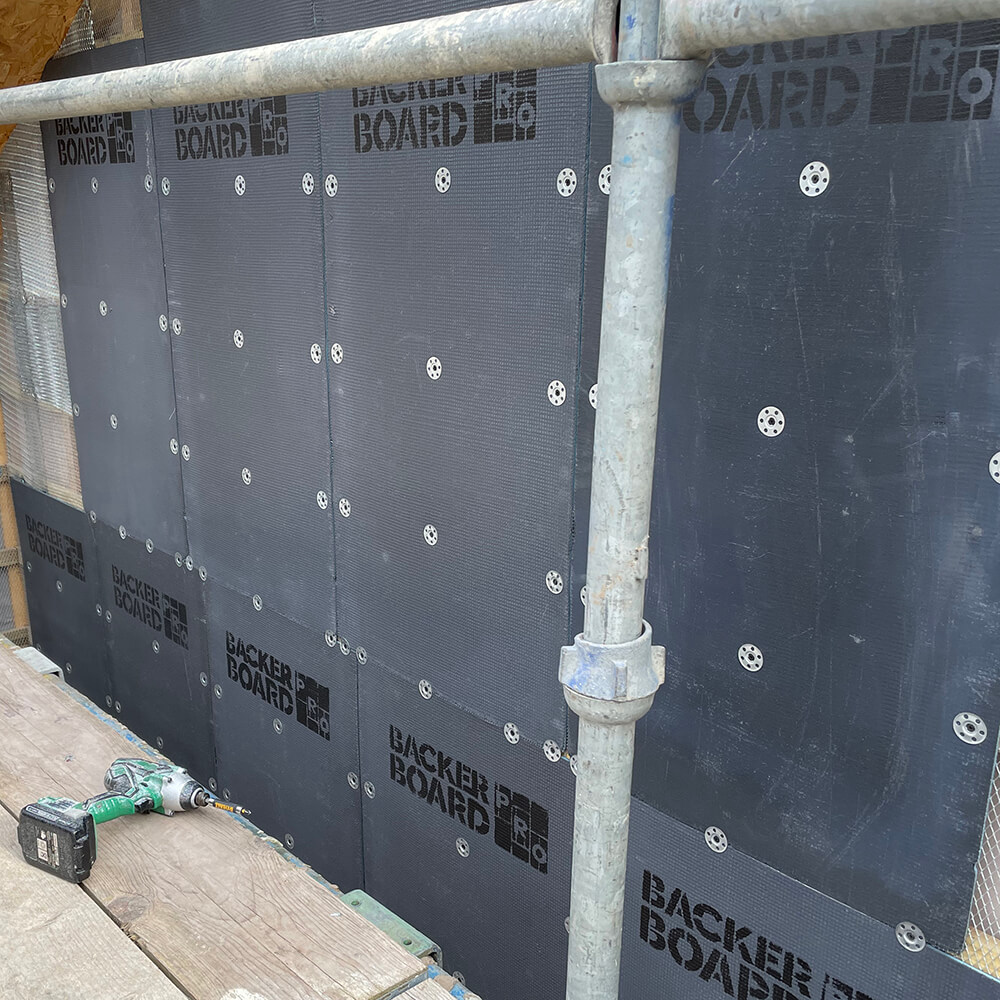

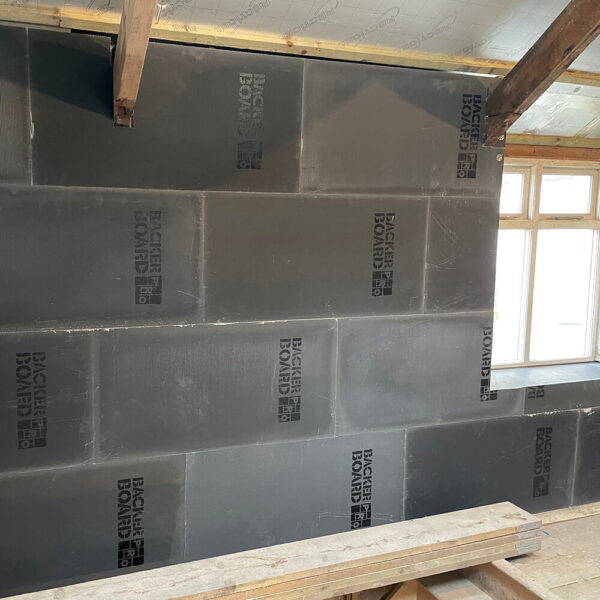

Tile backer thermal insulation boards are designed with a waterproof highly insulating core and reinforcing nylon mesh and polymer surface coating. This creates a very versatile highly insulated yet strong waterproof board suitable for internal and external use. These boards can be used on walls, floors or ceilings and can be tilled, plastered, or rendered over. Often used as a direct replacement for plasterboard they are ideal for creating wet rooms and for fitting underfloor heating directly over. Please note 6mm boards are only recommended for use on floor only.

Tile Backer Thermal Insulation Boards

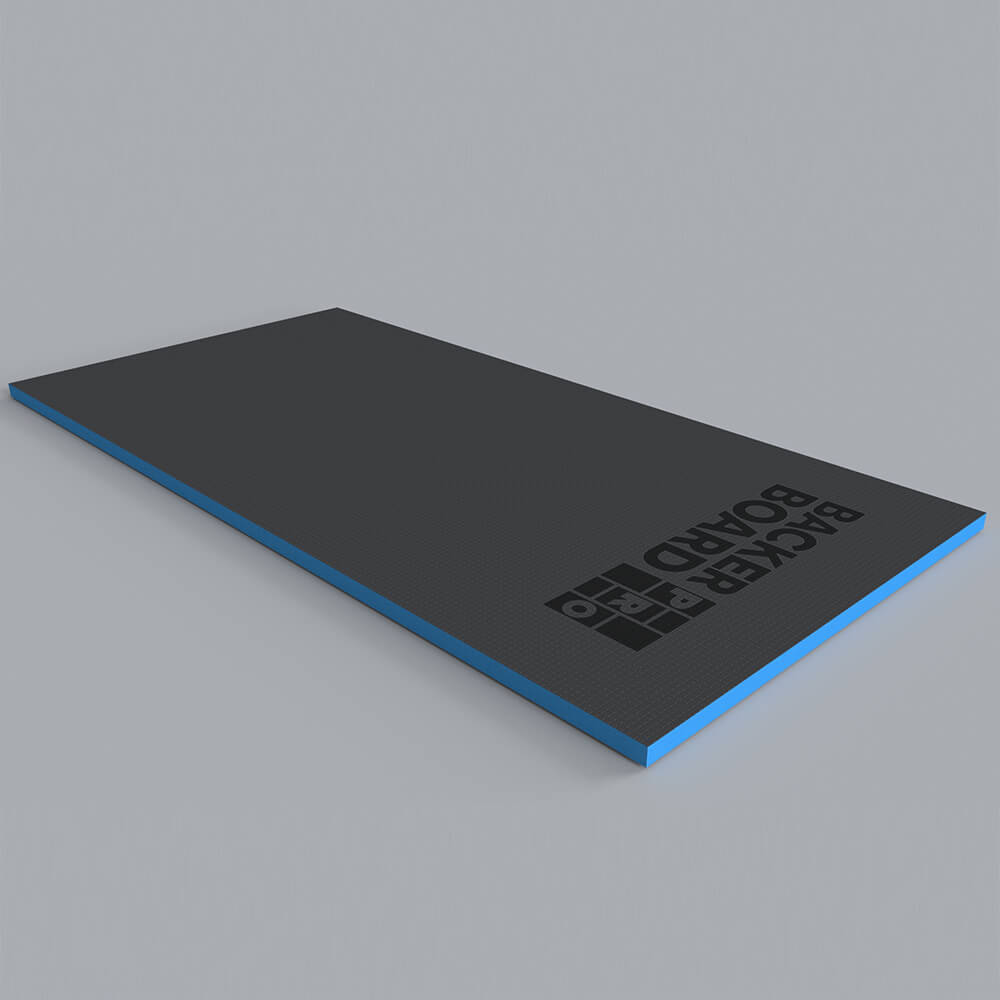

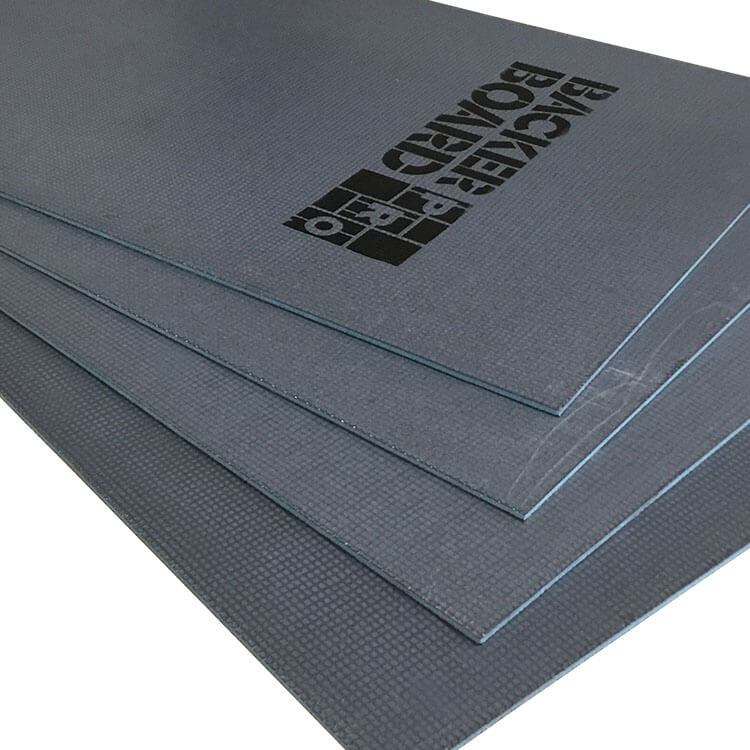

Tile Backer Board Insulation is available in 6mm, 10mm, 20mm & 30mm depths and is designed to insulate and resurface walls and floors. These Professional Series insulation boards can be tiled onto, plastered over, and also rendered. Perfect in wet room areas.

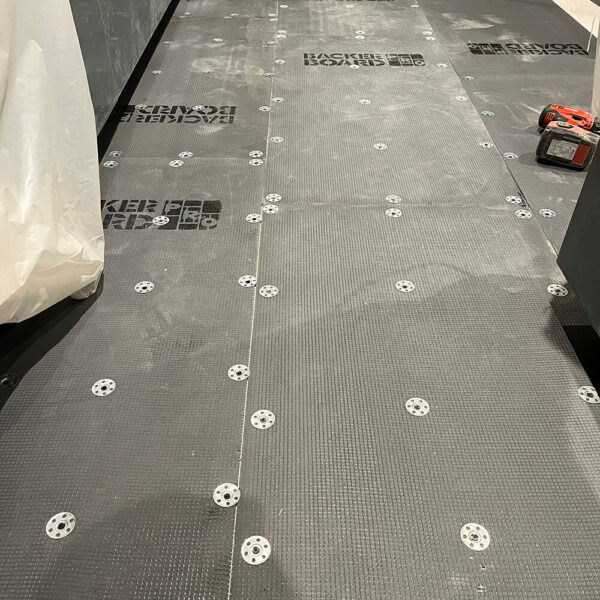

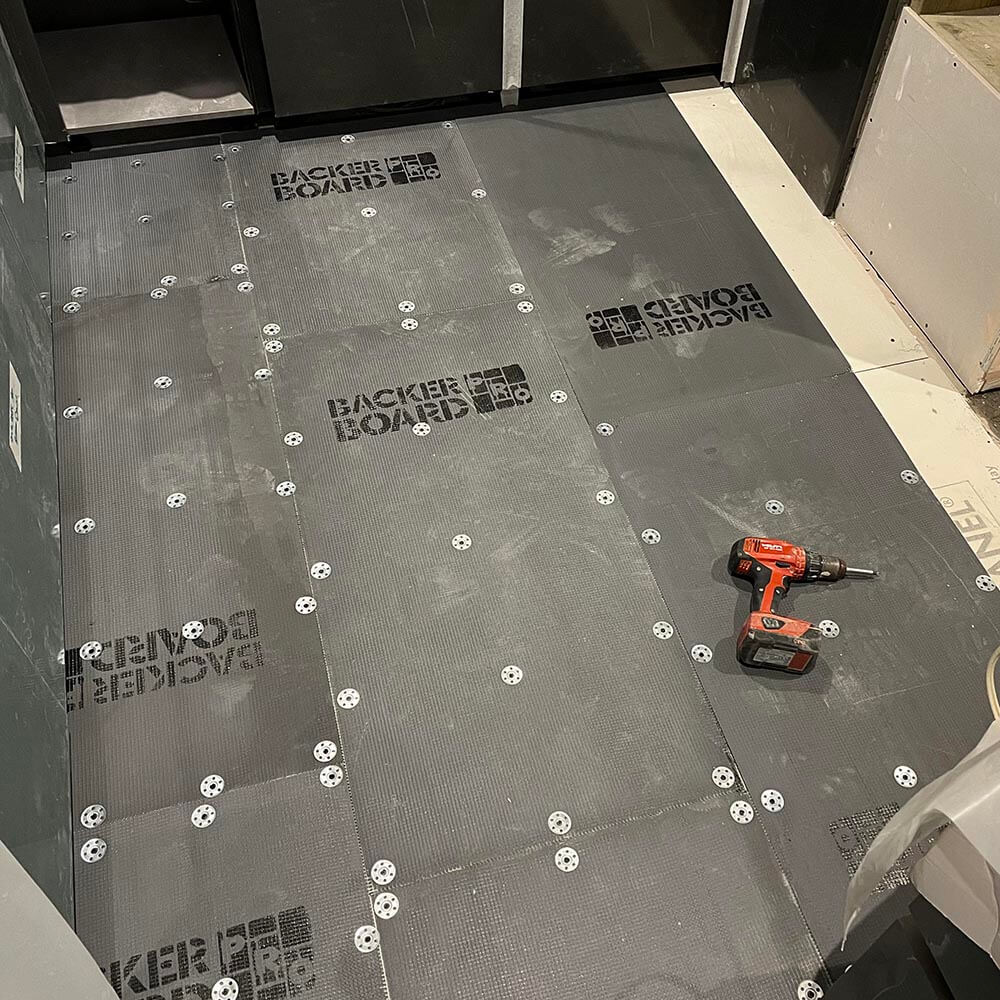

Likewise very applicable if you have a wooden subfloor, as the tile backer boards can be screwed directly to the wooden floor with cement board washers. In addition, the insulation boards can also be glued down with a flexible tile adhesive.

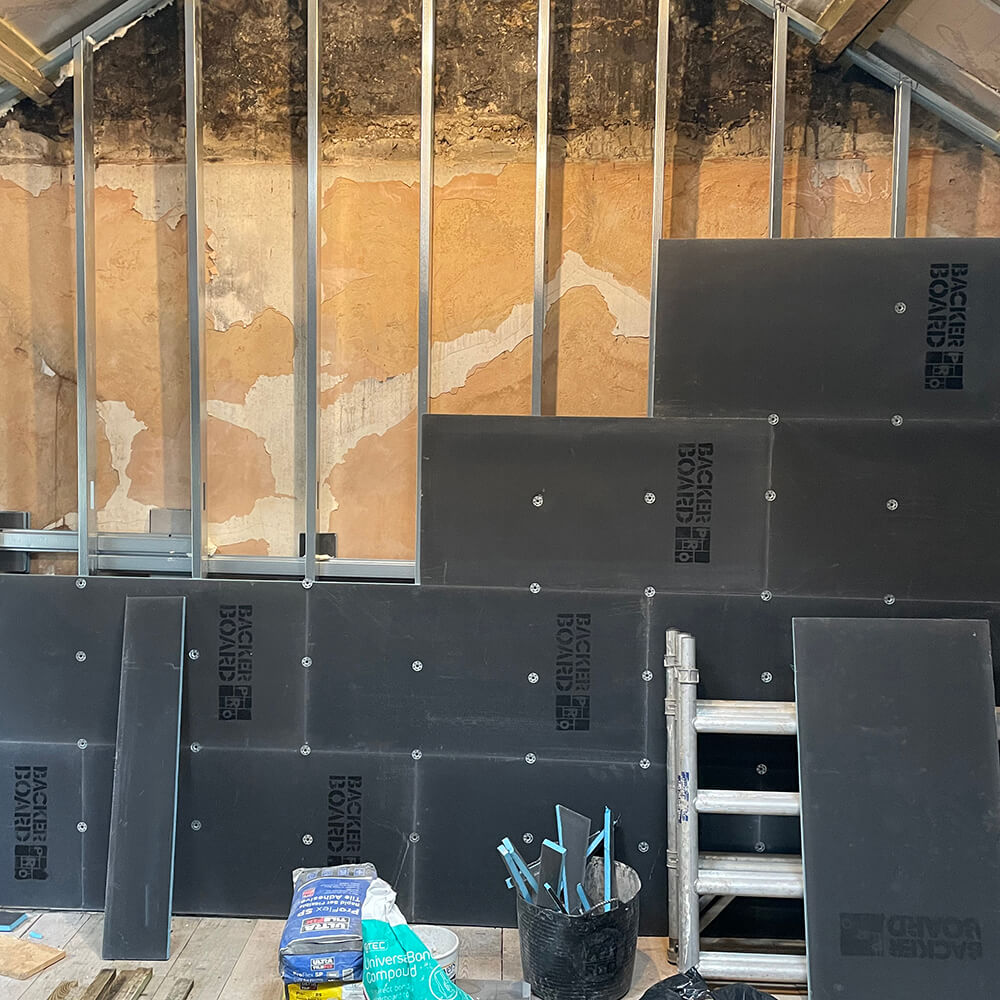

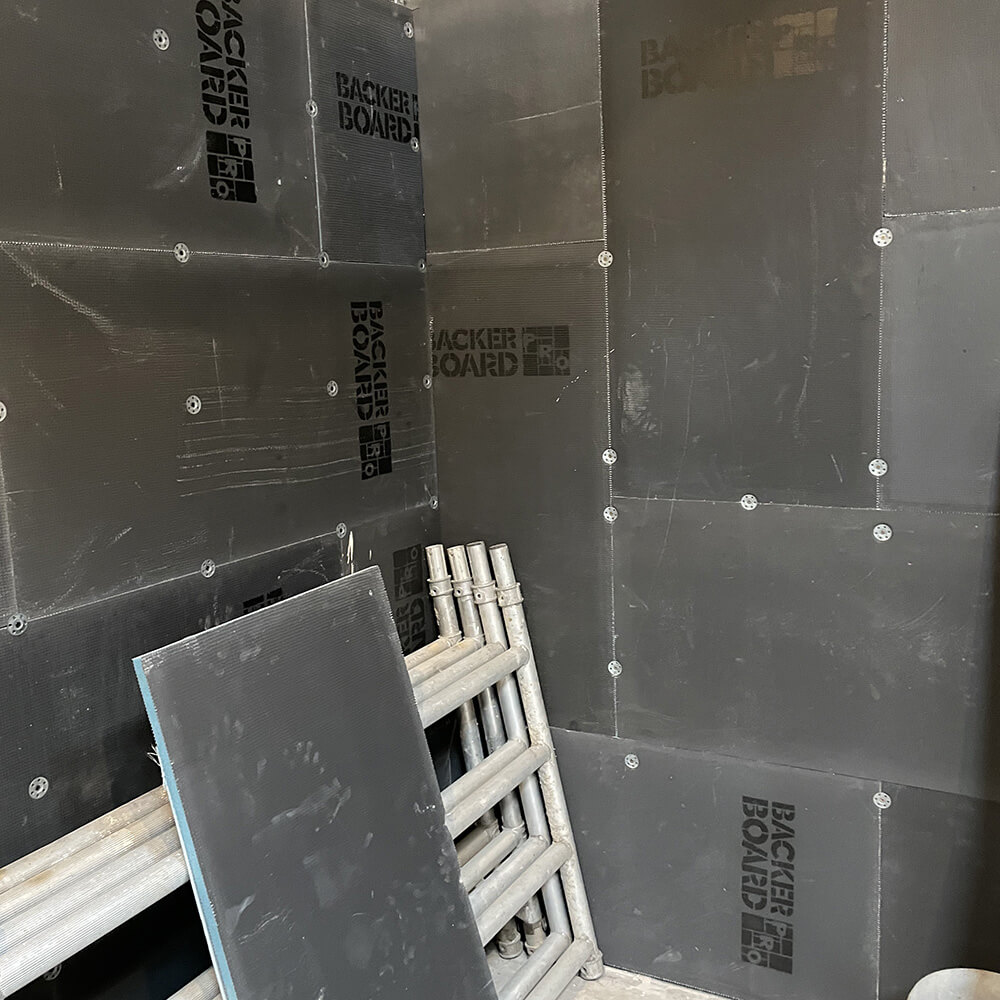

Please note that the 6mm boards are not suitable for walls. In this case, 10mm or 20mm boards should be selected for walls in cases where tiles are being installed over the insulation boards.

Please feel free to contact our technical department if you would like any further information on your specific project.

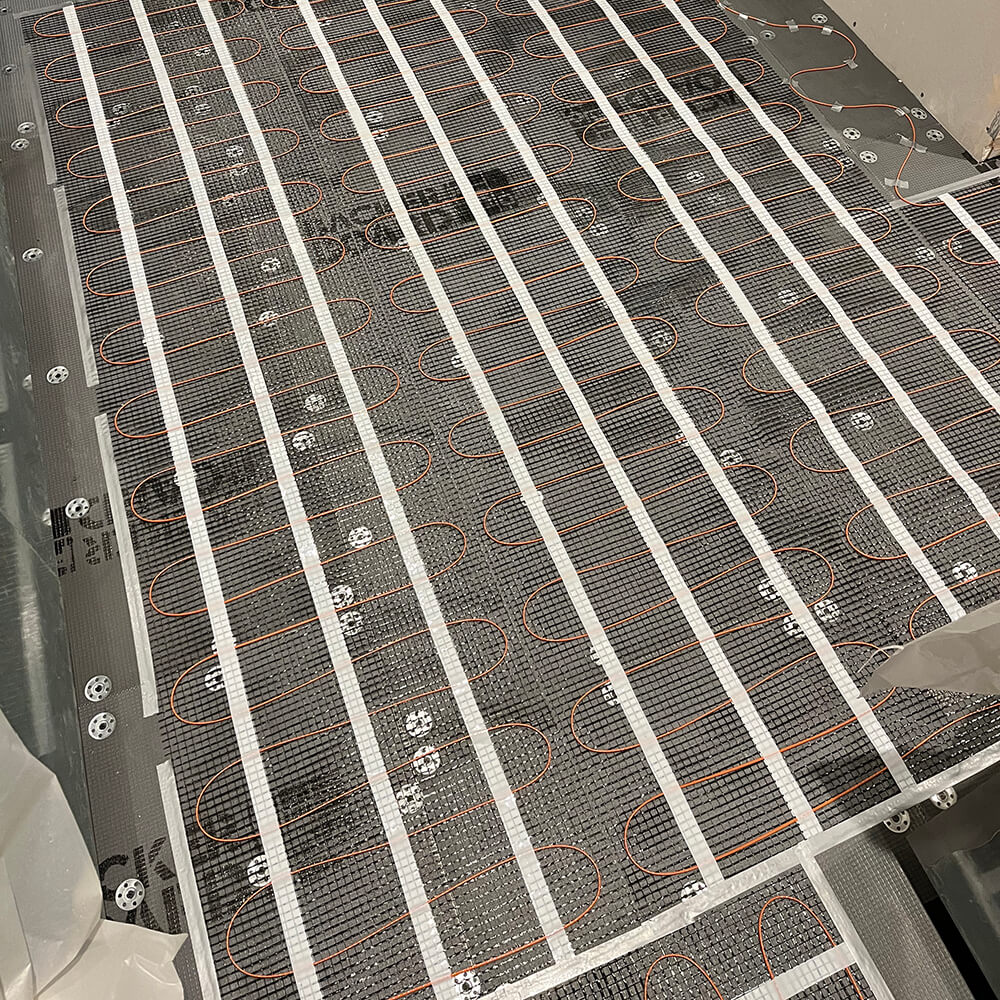

Tile backer insulation boards also greatly improve the overall efficiency of your underfloor heating system. For example on a concrete floor without insulation, warm-up times can be first of all up to an hour, and with insulation warm-up times can be as little as 10 minutes. Because the insulation creates a quicker warm-up time this reduces the cost of your heating bills.

  • Available in 6, 10, 20 & 30mm
  • Perfect For Wet Rooms
  • Domestic Or Commercial Installs
  • 100% Waterproof
  • Compatible With Most Floor Types
  • Compatible With Fixing Discs
  • UFH Compatible
  • Can Be Directly Tiled On
  • Easy To Cut & Handle
  • Free Design & Quotation Service
  • Free Technical Assistance
  • After Sales Support
  • Next Day Delivery Service

For Use With

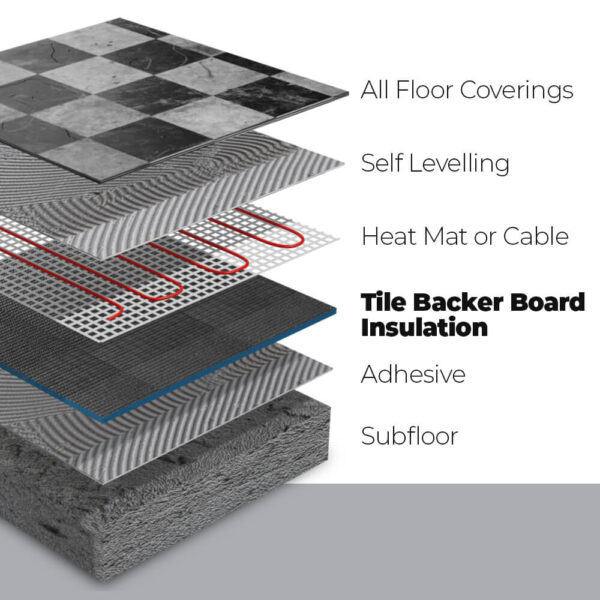

  • All types of electric and water underfloor heating systems
  • On top of concrete and timber sub-floors
  • Under all ceramic, porcelain, natural slate, and stone floors
  • For use on walls and floors, ideal for wet rooms

Additional information

Size / Quantity

6mm Tile Backer Board, 10mm Tile Backer Board, 20mm Tile Backer Board, 30mm Tile Backer Board, 6mm Tile Backer Boards (Half Pallet 240 Boards), 6mm Tile Backer Boards (Full Pallet 480 Boards), 10mm Tile Backer Boards (Half Pallet 150 Boards), 10mm Tile Backer Boards (Full Pallet 300 Boards)

Water penetration (96 hours)

0.00 Waterproof

Board Size

1200mm x 600mm



Thermal Conductivity W/mK

0.027 Prevents heat loss

Thermal Resistance sqmK/W

0.85 Blocks out cold

Fire Protection Class

BS 3837 B1 DIN British Standard

Compression strength KPa 25%

400 A minimum of 40 metric tonnes, (yes tonnes!) can be placed on 1 m2 without damage
