Wetroom Shower Base Tray + Fast Flow Square Drain

From: £119.99 Inc. VAT
£99.99 Ex. VAT

Part No: N/A

Wet Room Shower Tray Kit With Insulated Shower lay tray & Drain Cover Choice

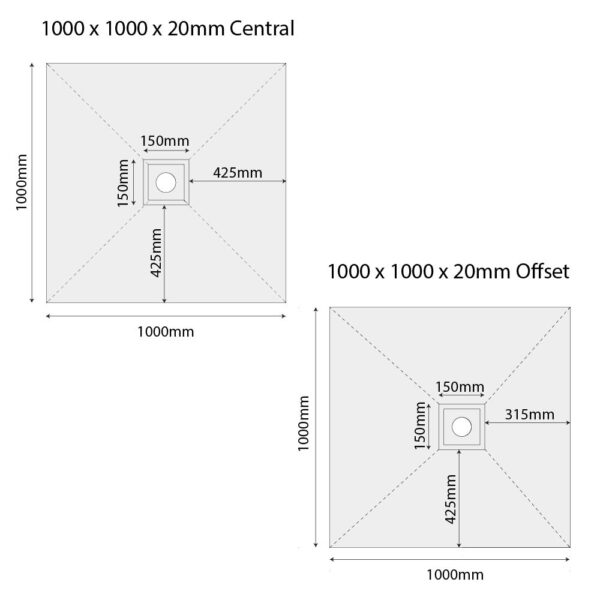

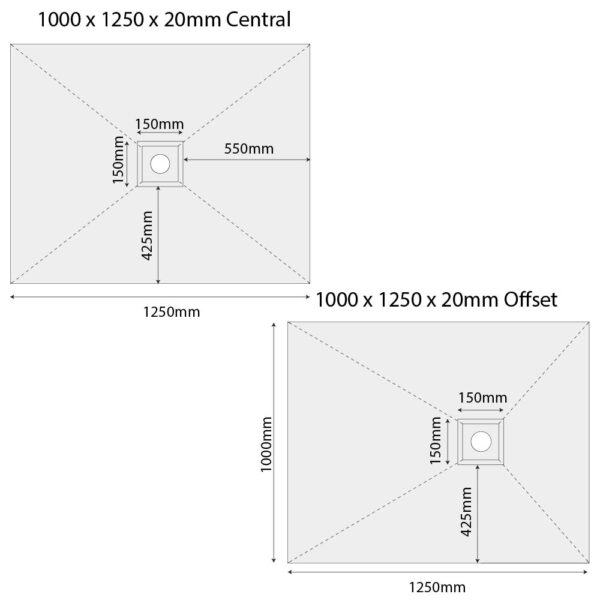

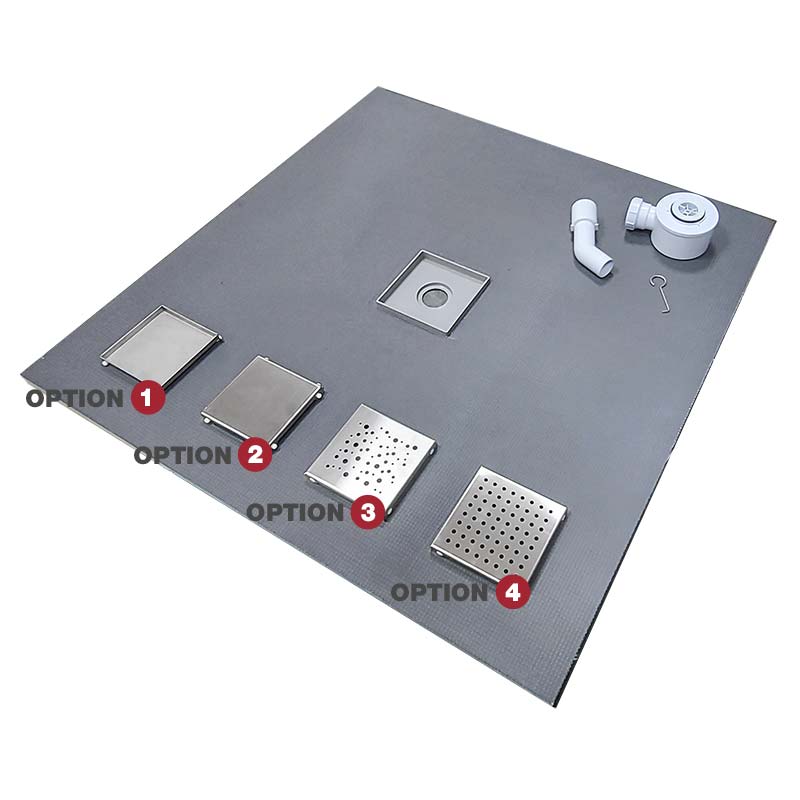

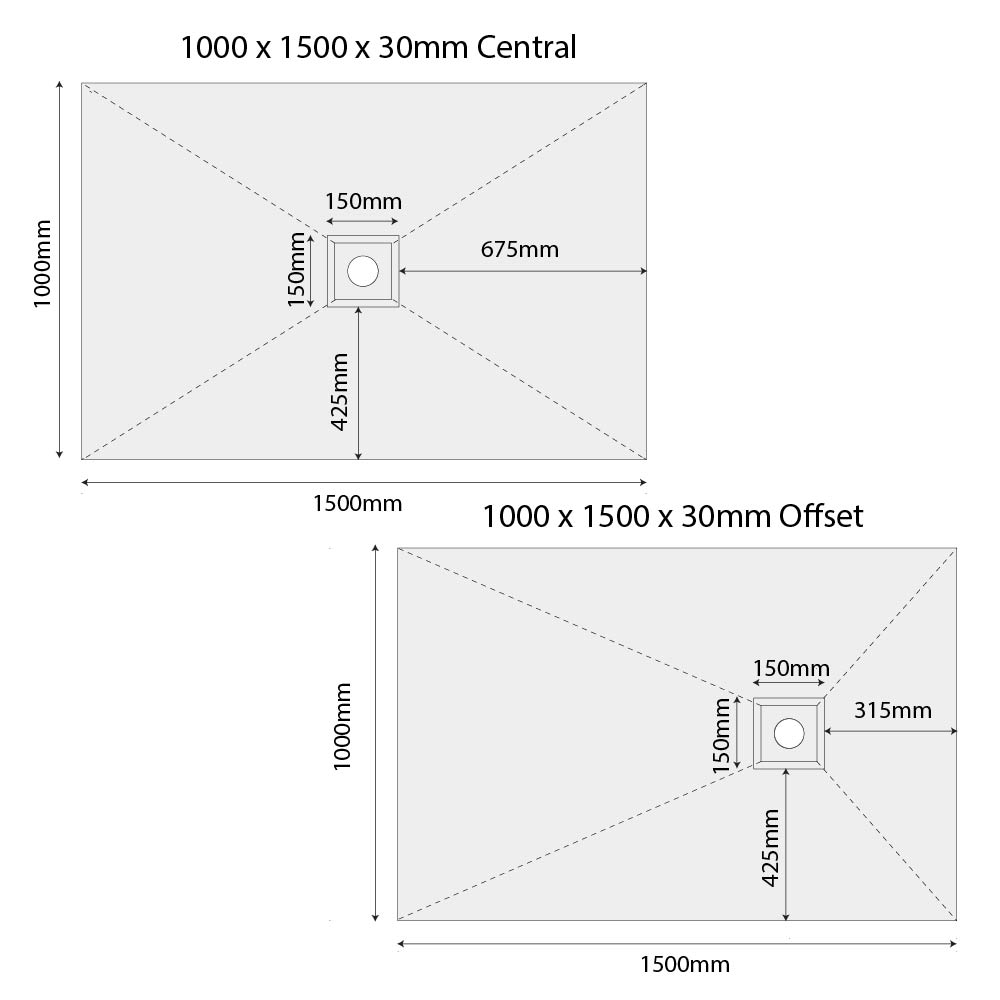

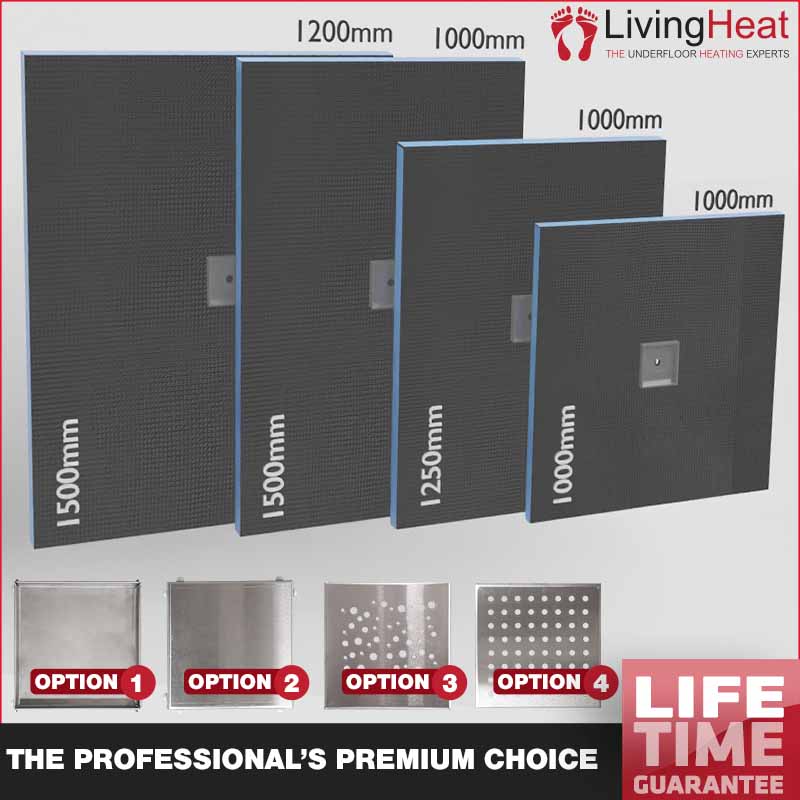

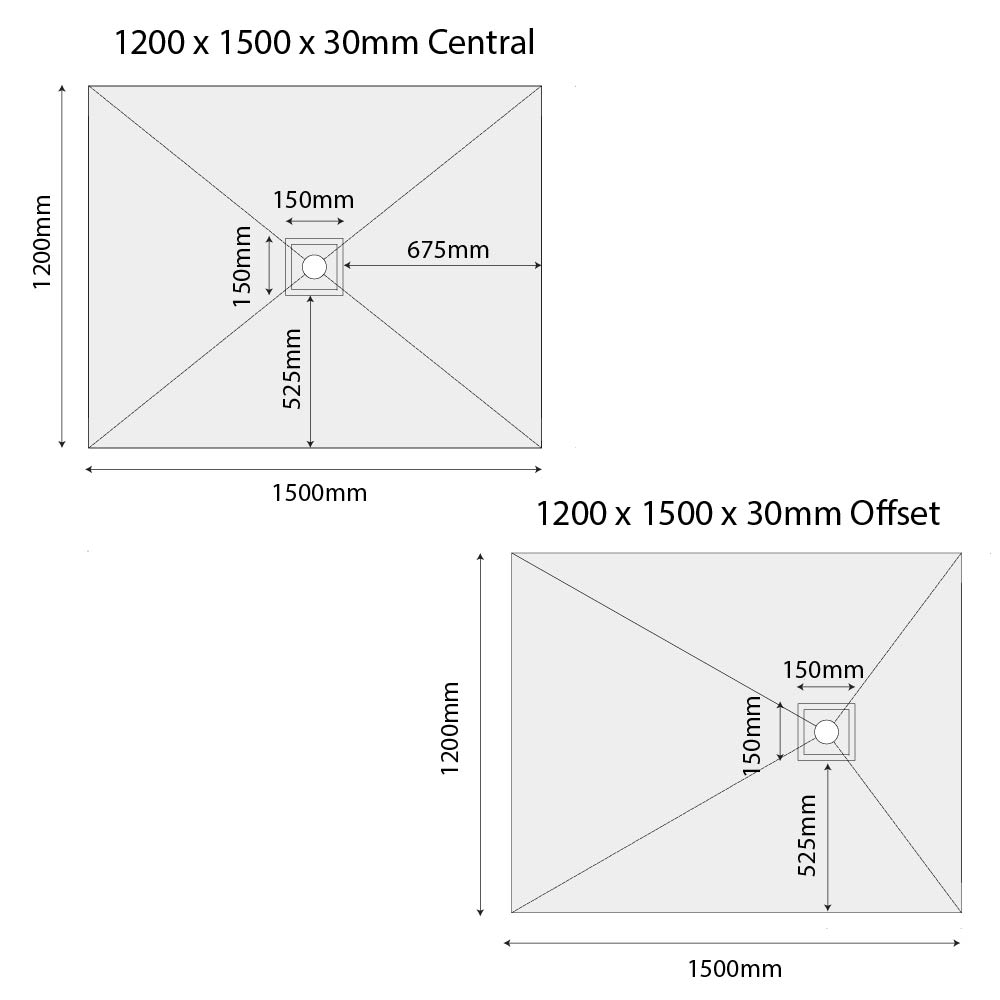

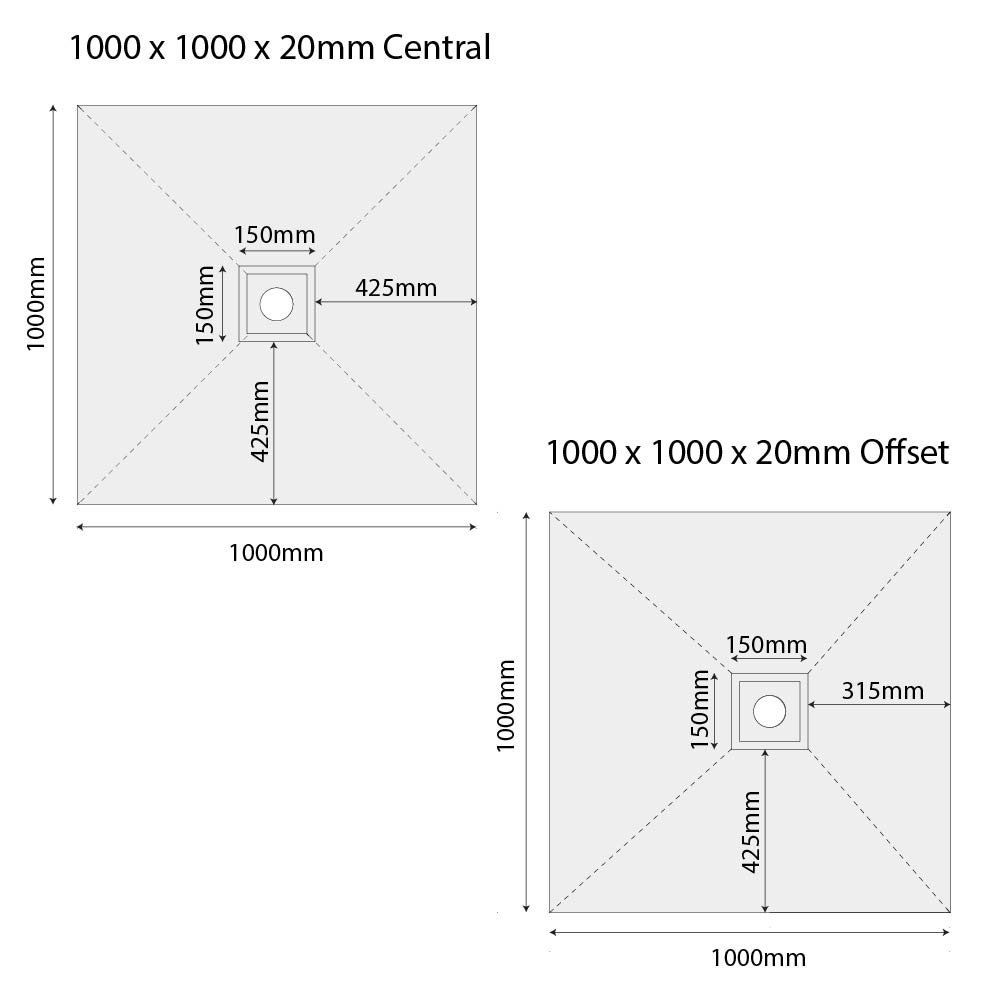

Four stylish options of stainless steel drain cover to finish off your shower tray in style! Living Heat wet room, bathroom, level access walk-in tile over shower tray base kits come complete with fast flow square drain and stainless steel drain cover. Available with centre and off-centre drain locations and in 4 different sizes to suit almost any size bathroom.

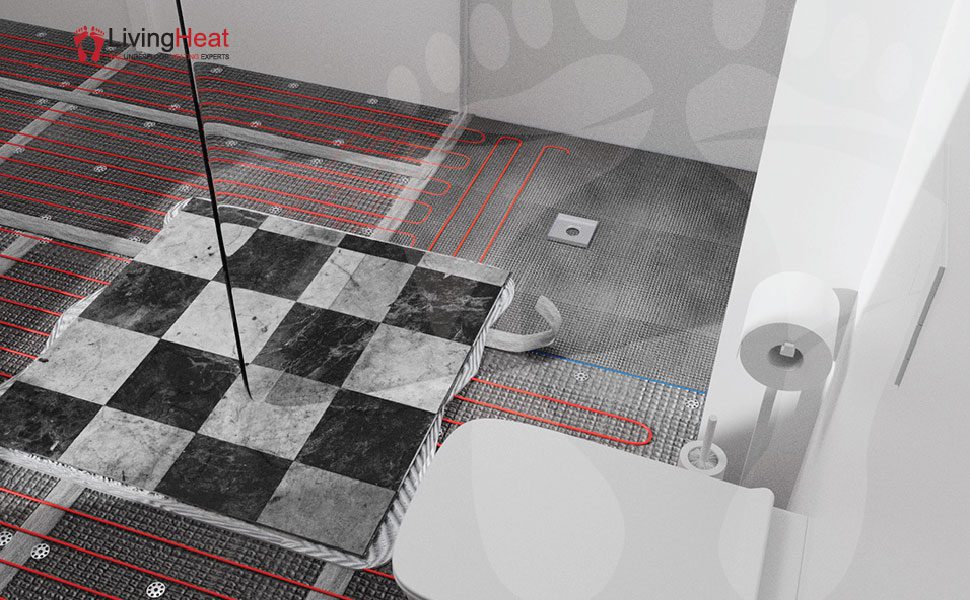

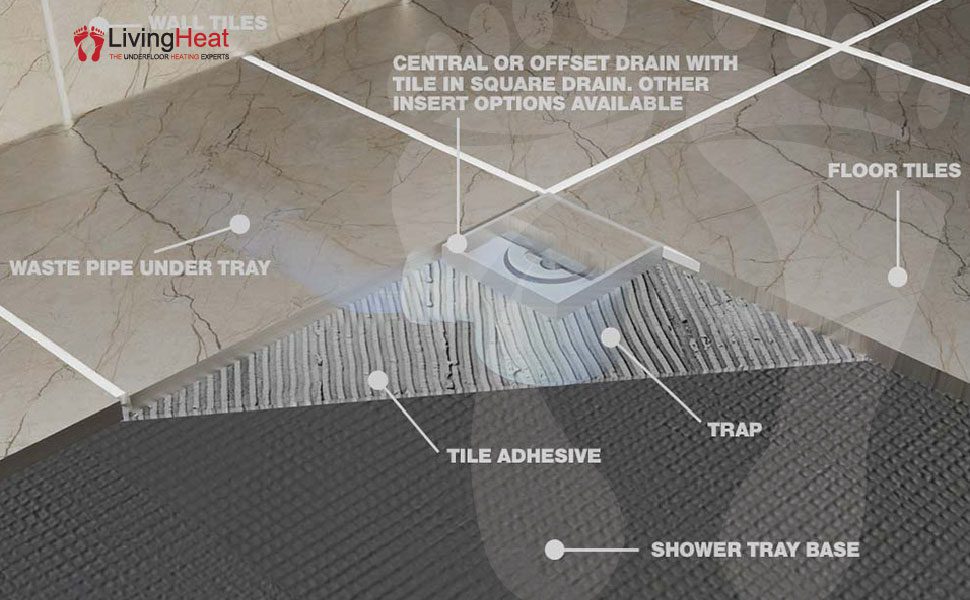

Once fitted this insulated shower tray is perfect for creating a luxury wetroom with level access across the floor. Designed primarily for wet-room installations with tiles fitted over. These wet room trays have pre-formed falls for easy tiling over and water drainage. They are also highly insulated and designed for use with Living Heat under tile heating systems.

The boards can be cut down in size if needed or increased in size using additional backer board pro tile backer boards. The boards are easy to fit and provide a level and unobstructed shower tray base, with pre-installed falls to guide water down toward the drain. Each tray comes complete with a free stainless steel fast-flow drain and a choice of four beautiful stainless steel grate options. Boards are backed up with a full manufacturer lifetime warranty, full fitting instructions, and a technical helpline.

  • High Compression Loading, (40 tonnes per sqm)
  • Completely waterproof
  • Safe and easy to handle
  • Easy to cut and install
  • Greatly reduces heat loss
  • Speeds up response rate of the heating system
  • Increases the efficiency of your heating system

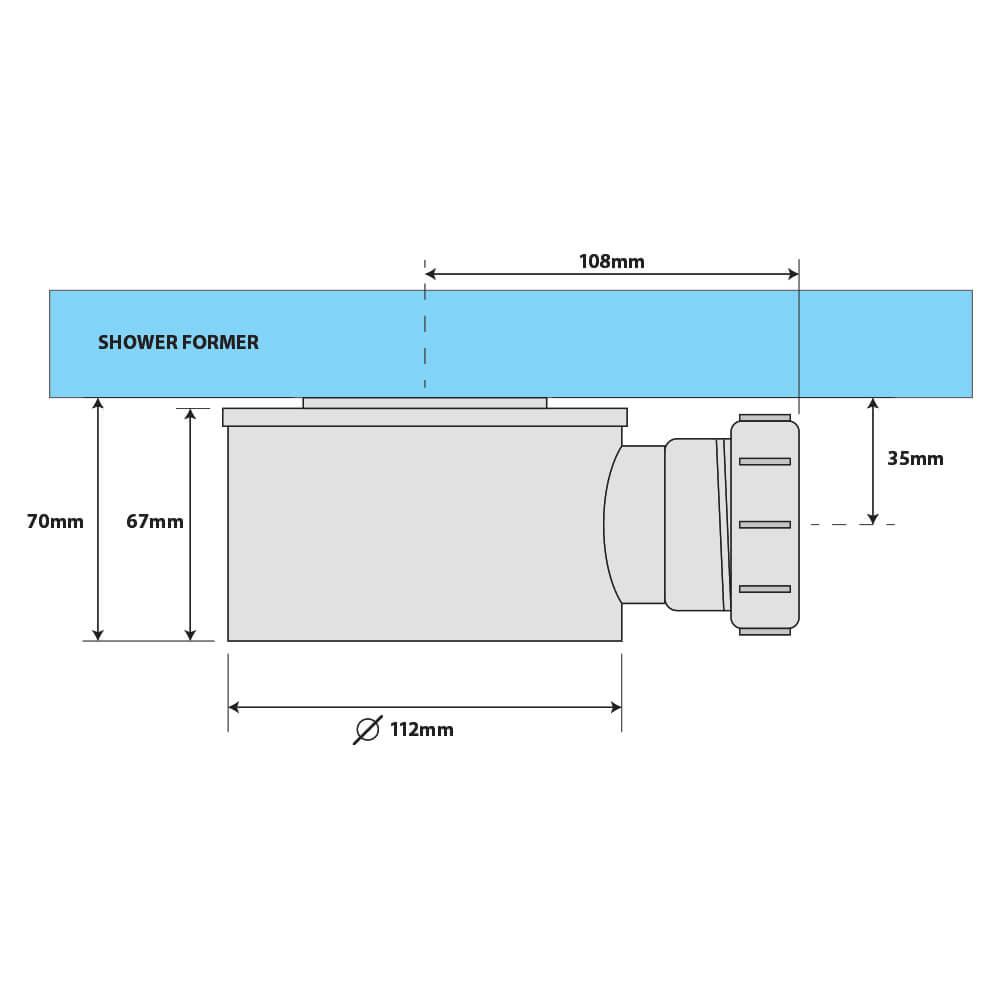

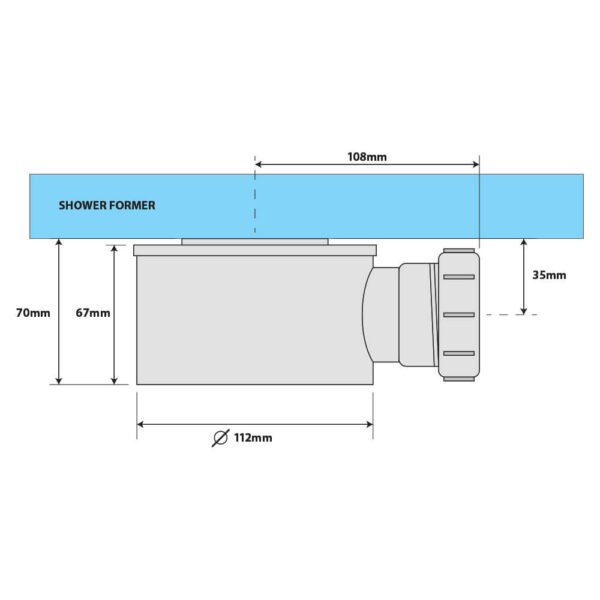

  • Comes with a ‘Fast-Flow’ drain kit
STEP 1Shower Lay Wetroom Base Tray + Fast Flow Linear Drain

Prepare your floor area and install drain bowl supplied.

STEP 2Shower Lay Wetroom Base Tray + Fast Flow Linear Drain

Install shower tray and additional backer boards alongside if required, before tiling. Connect shower tray drain to drain bowl.

STEP 3Shower Lay Wetroom Base Tray + Fast Flow Linear Drain

Use a flexible tile adhesive to install tiles as required and use a good even spread of adhesive. Ensure no excess adhesive enters the drain/bowl.

STEP 4Shower Lay Wetroom Base Tray + Fast Flow Linear Drain

Once tiling is complete and the adhesive has cured you can commence grouting as required.
