Wetroom Shower Tray Kit With Linear Drain

From: £131.99 Inc. VAT
£109.99 Ex. VAT

Loading...
Part No: N/A

Wetroom Shower Tray Kit With Linear Drain

Living Heat Linear Shower Tray with fast flow Linear Drain offer a sleek, ultra-slim profile at just 30mm in depth, crafted from high-quality XPS (extruded polystyrene) and finished with a durable cement coating.

Lightweight yet incredibly strong, these trays are designed for easy installation and long-lasting performance.

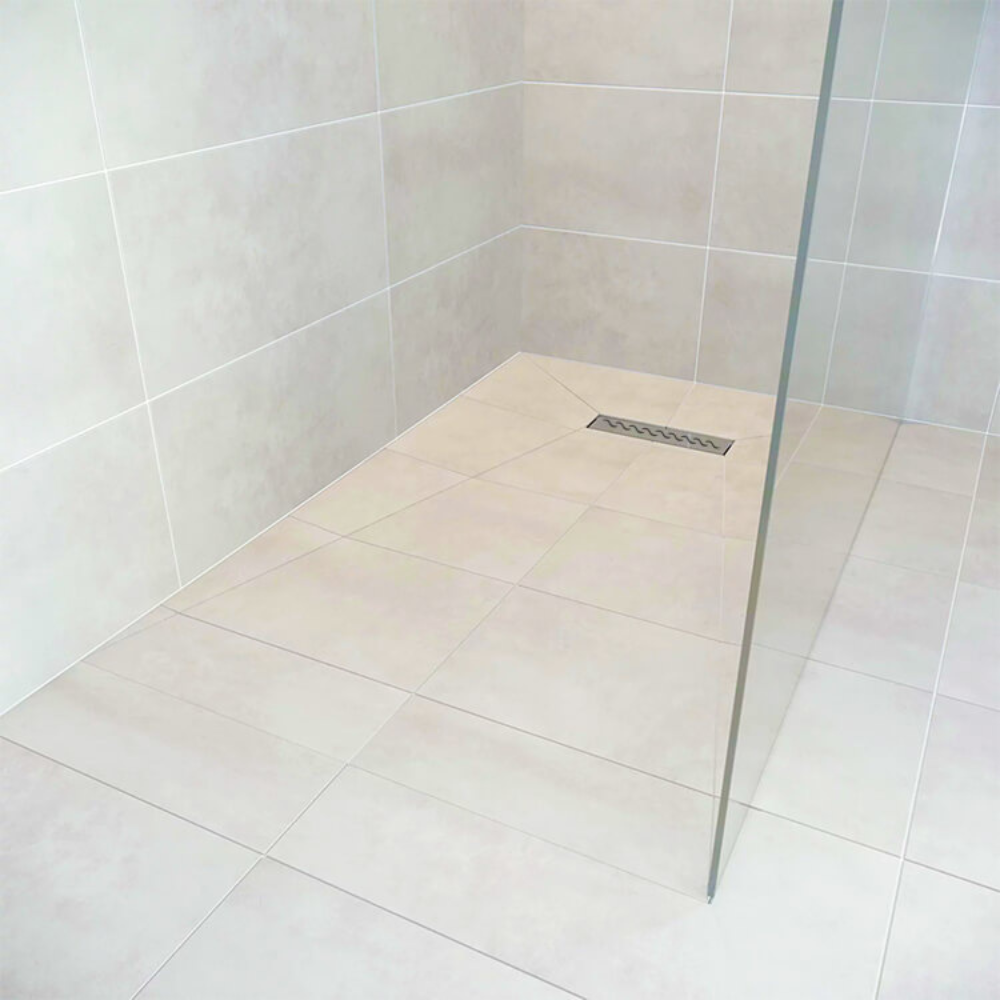

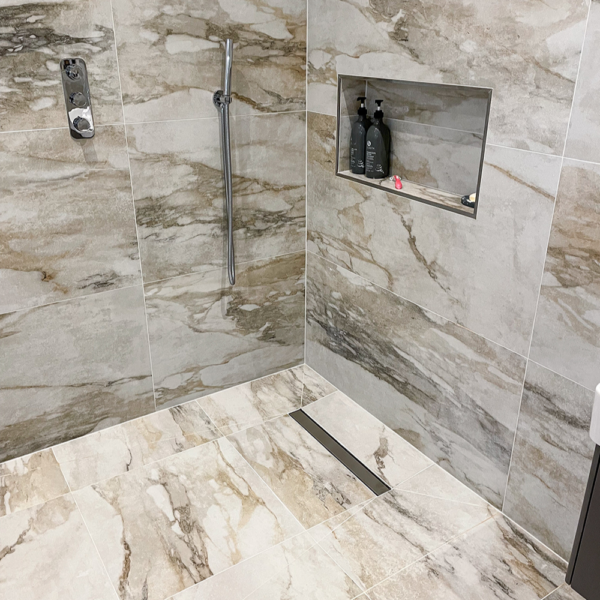

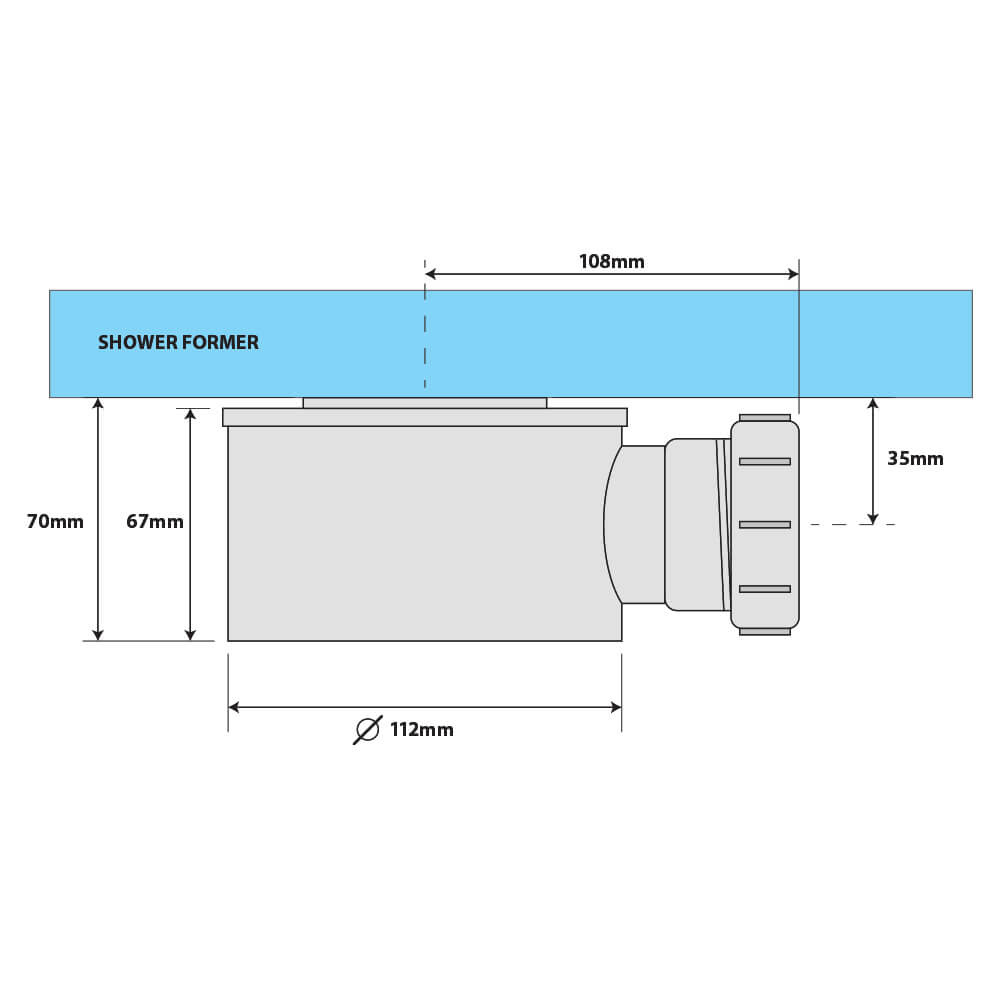

Designed for easy installation, the trays feature a natural fall to the drain for efficient water drainage and come complete with a high-quality waste trap. The popular Tile-In (option 6) allows tiles to seamlessly integrate with the tray, creating a sleek, minimalist look ideal for wet rooms or walk-in showers.

The trays can be easily trimmed to size, just like Living Heat Tile Backer Boards, using a standard Stanley blade. For optimal performance, they should always be fixed to a solid concrete or reinforced wood sub-floor using Flexible Tile Adhesive, ensuring a secure and durable installation.

The cement-coated surface provides excellent adhesion for tiles, making these trays the ideal choice for those seeking a stylish, durable, and professional solution.

Compatible with Living Heat Showerliner, Living Heat Tanking Tape, internal and external tanking corners, HC Decoupling Membrane, and Living Heat Electric Underfloor Heating Systems, these trays provide a comprehensive solution for waterproofing and heating your shower area, ensuring a durable, professional finish.
Information

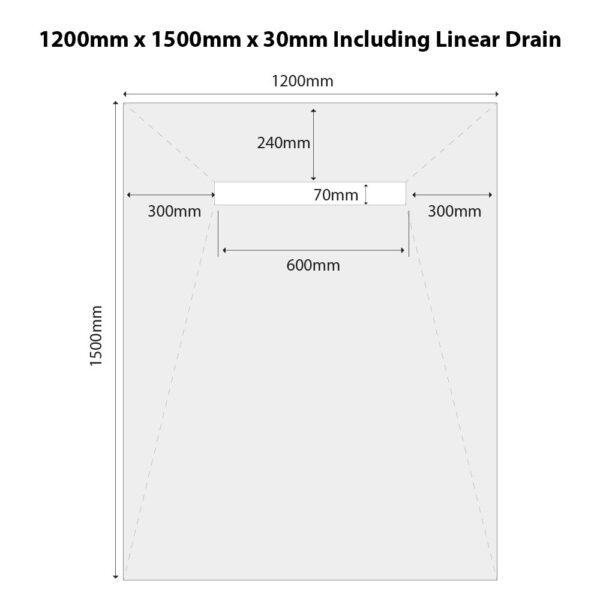

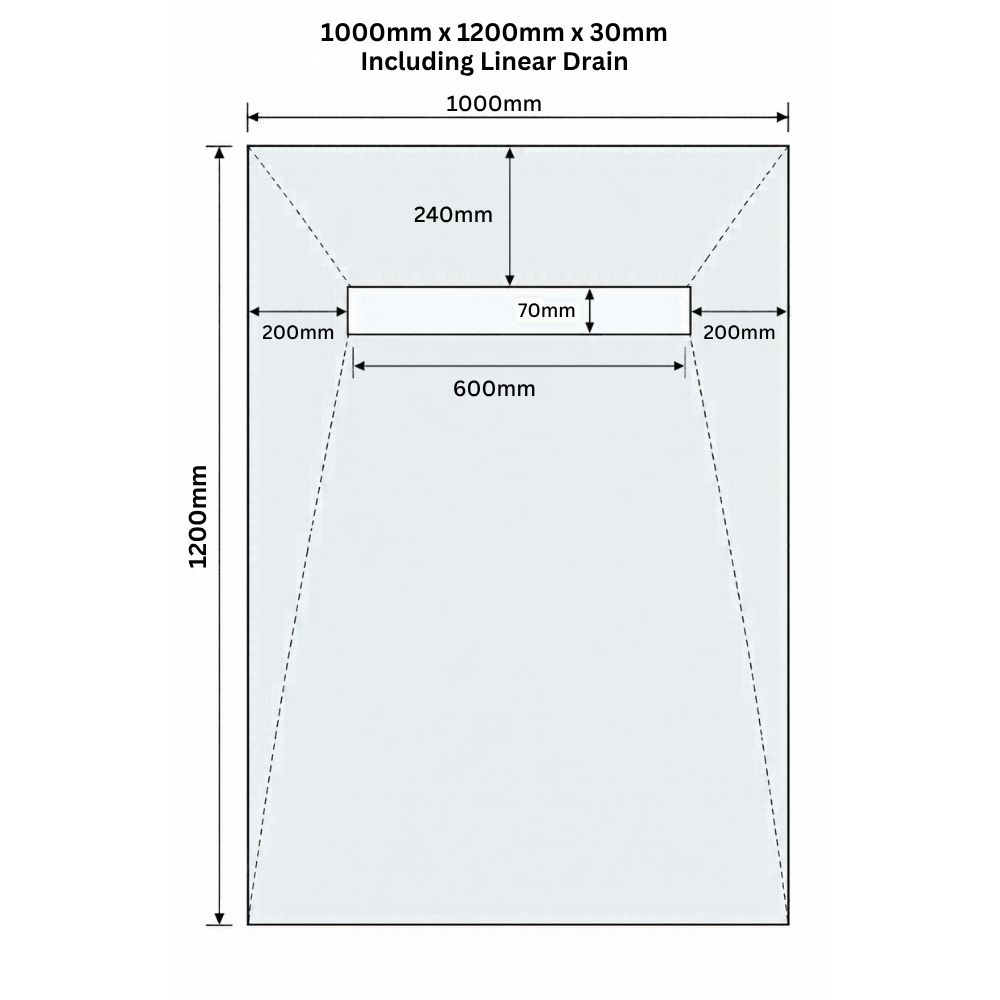

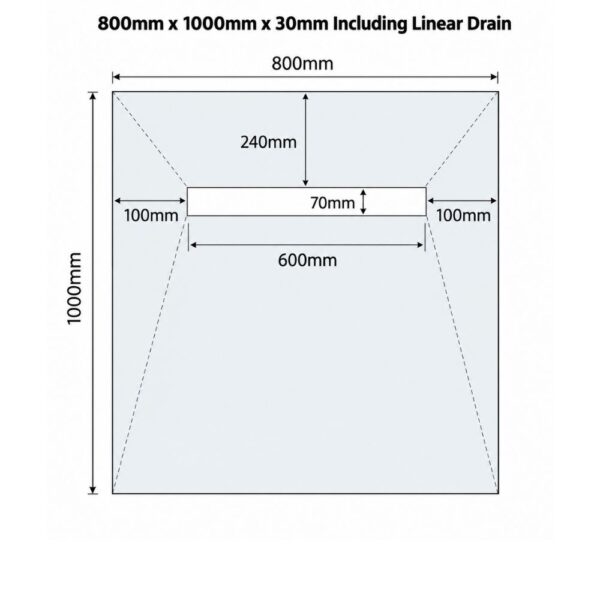

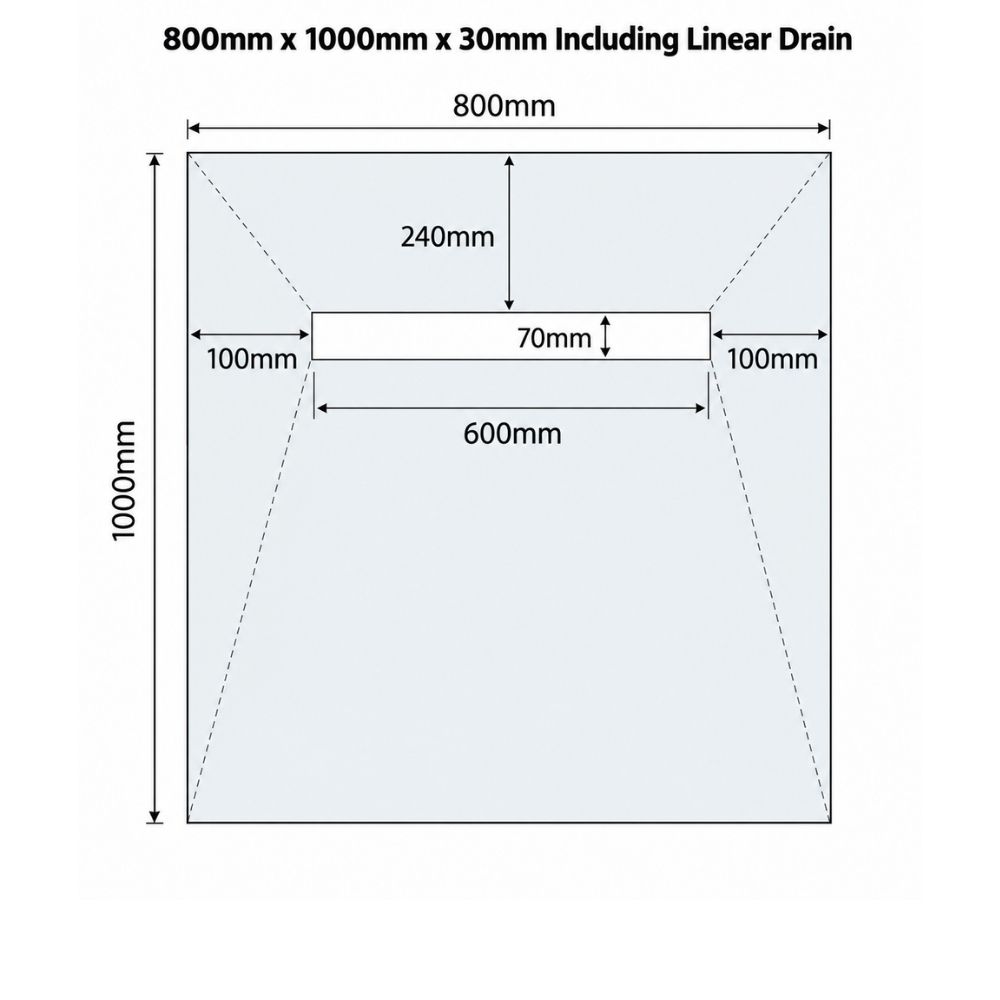

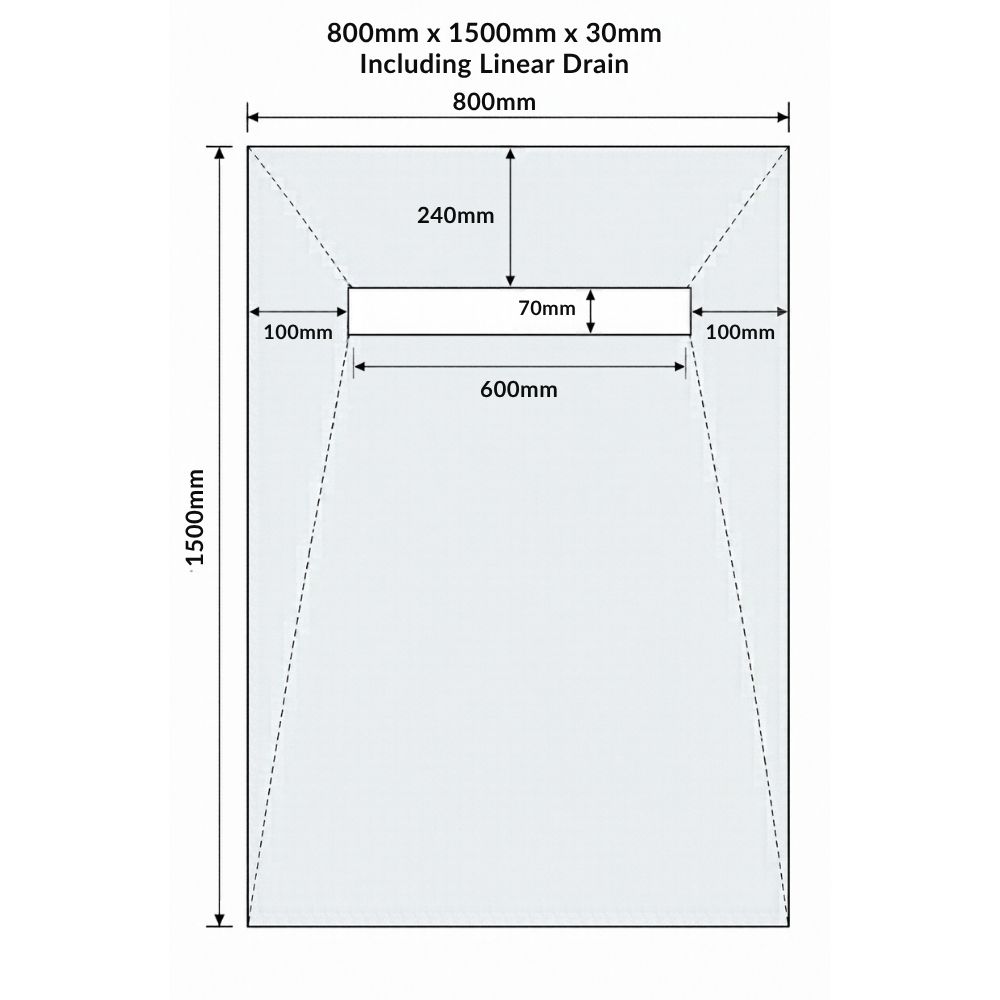

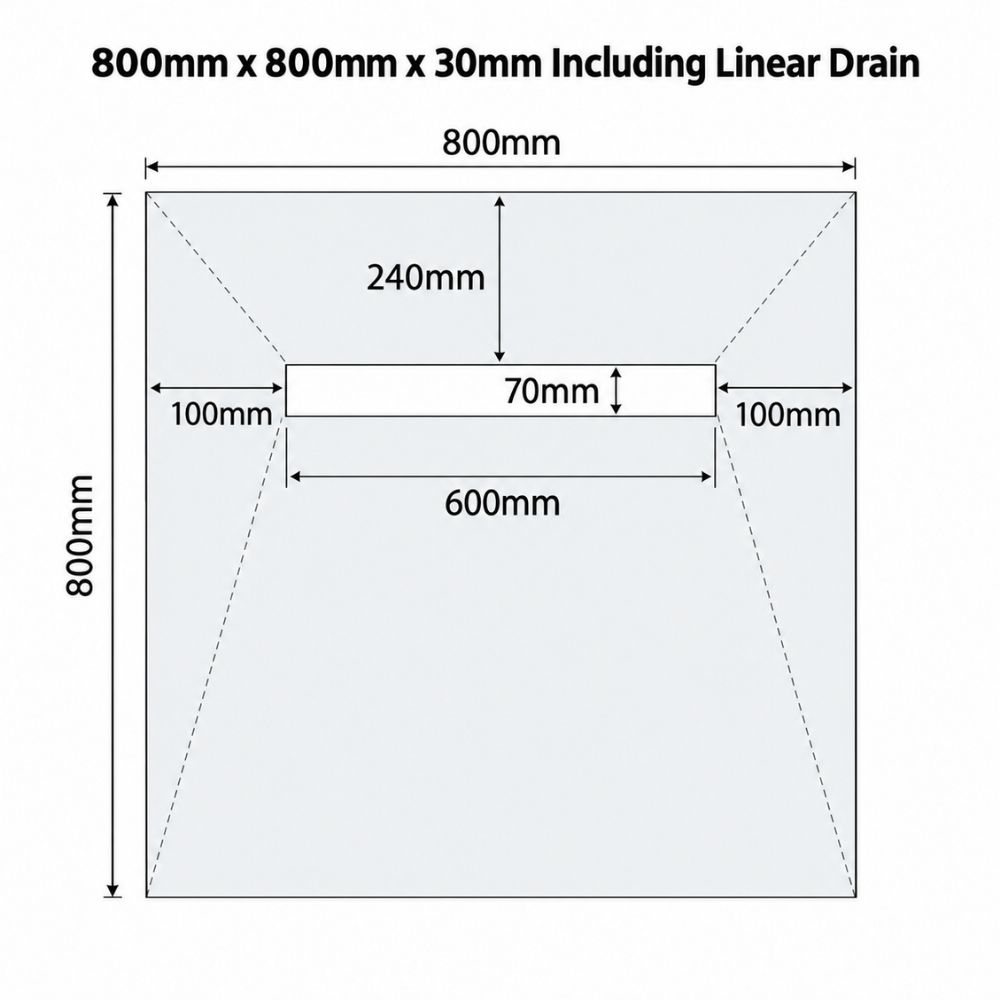

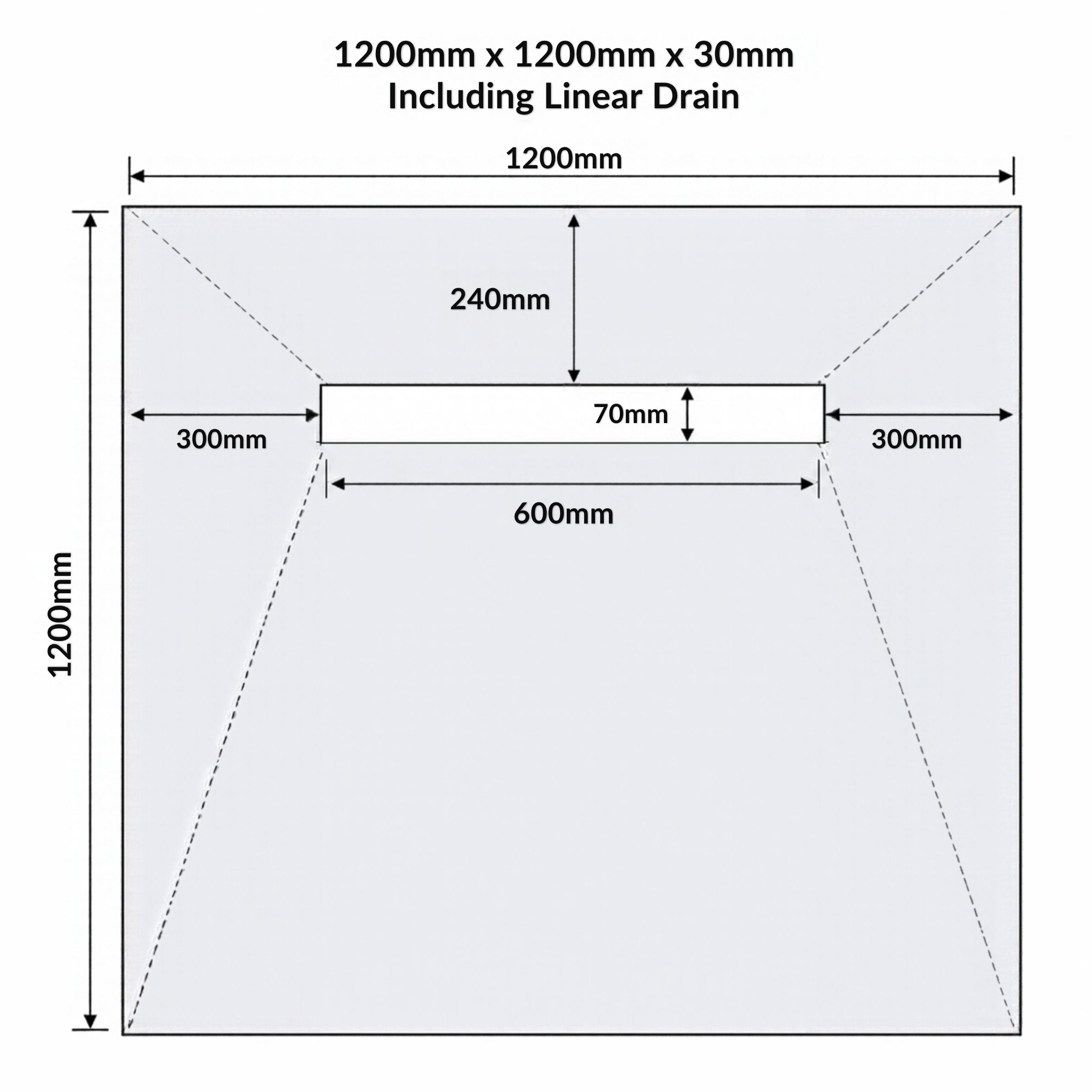

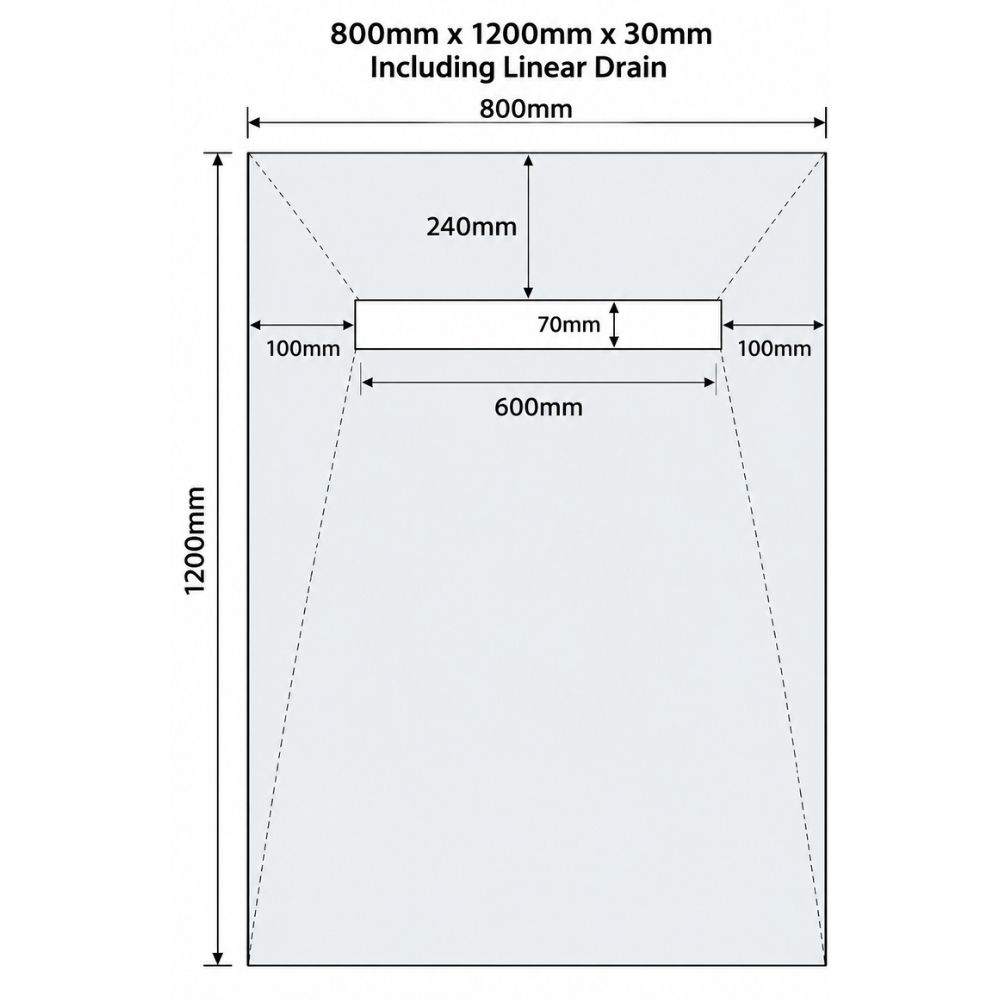

  • 9 Different Tray Sizes
  • 4 Drain Options
  • 30mm In Depth
  • Waterproof
  • Safe & Easy To Handle & Install
  • Reduces Heat Loss / Thermally Insulated
  • Increases Efficiency/Response Of UFH Heating System

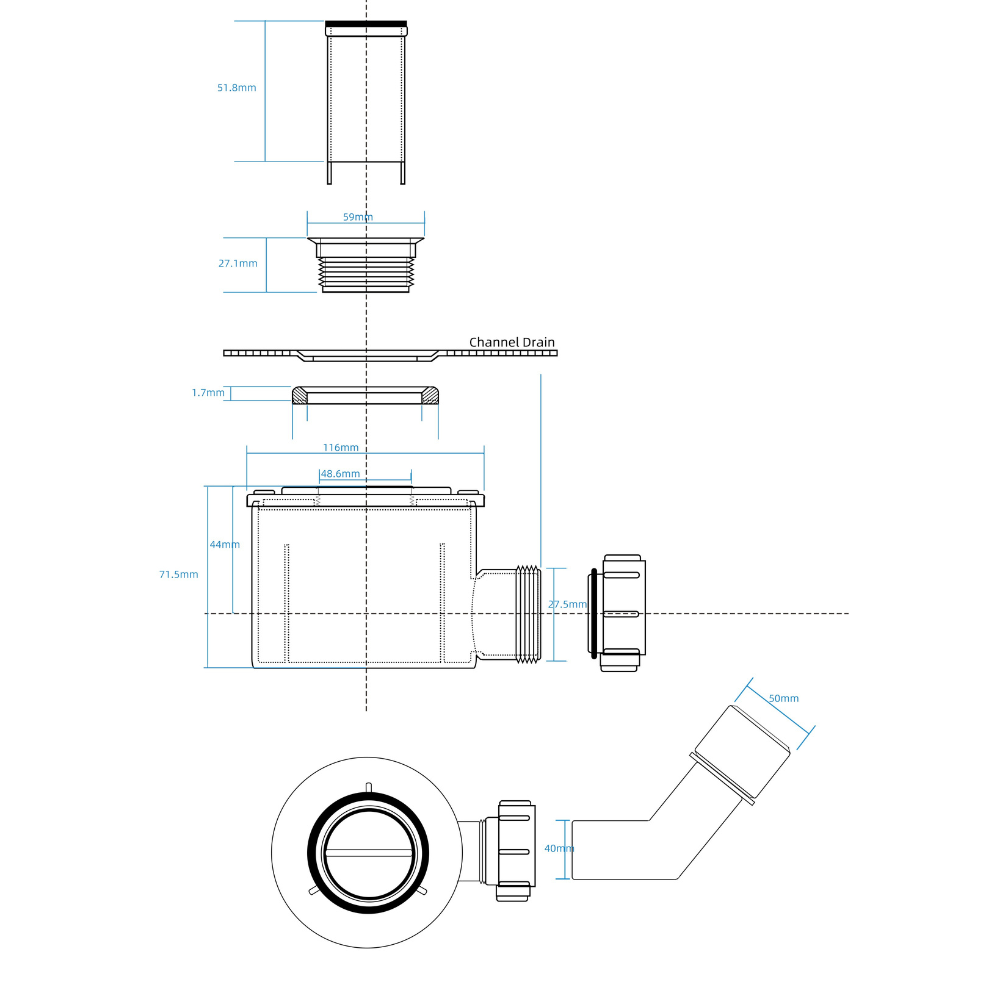

  • Comes With ‘Fast-Flow’ Drain Kit

Shower Drain Option 6

The drain allows for two types of tray a tile-in option and a plain stainless steel option
STEP 1Shower drain option 6 and 9 step onePop the clips off the drain using a screwdriver.
STEP 2Shower drain option 6 and-9 step twoRemove all the clips and flip the tray over.
STEP 3Shower drain option 6 and 9 step threeTo reveal the stainless steel side.
STEP 4Shower drain option 6 and 9 step fourAdd the clips back on.

Installation

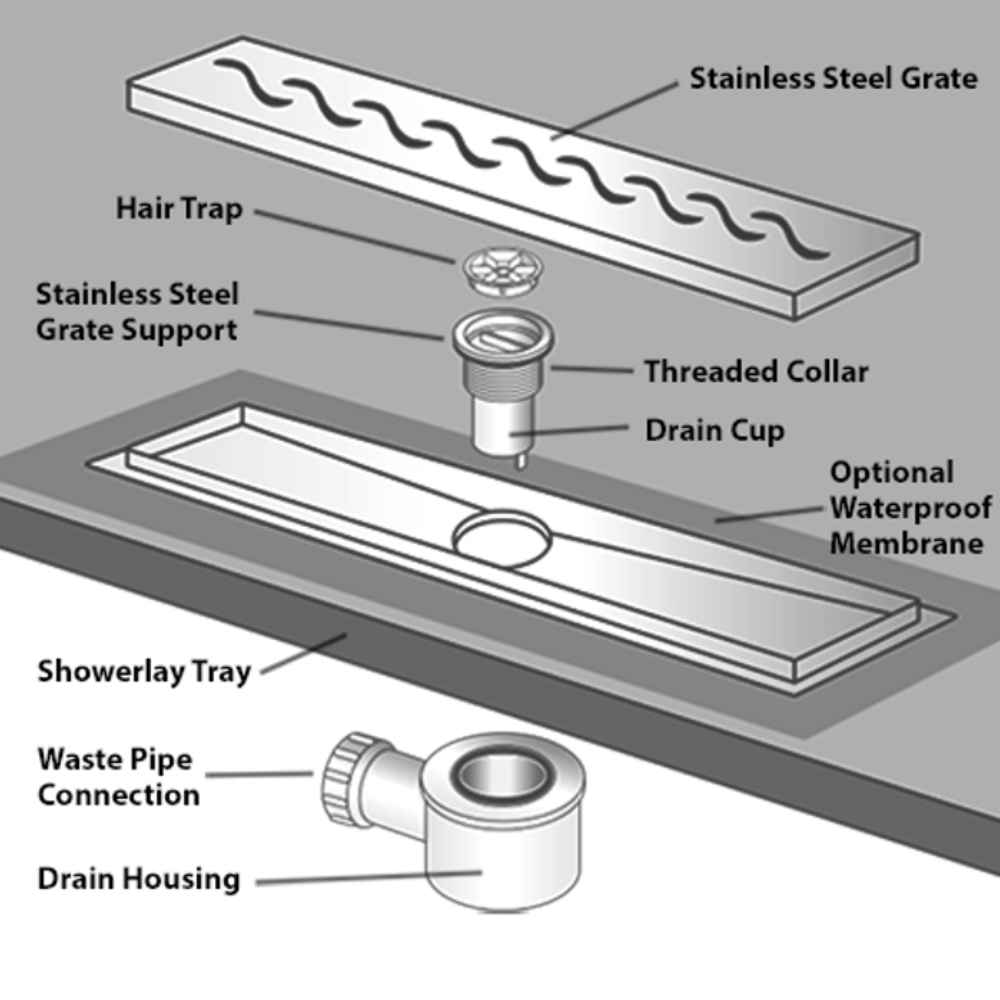

STEP 1Wetroom Shower Base Tray + Fast Flow Linear DrainPrepare your floor area and install the drain bowl supplied.
STEP 2Wetroom Shower Base Tray + Fast Flow Linear DrainInstall shower tray and additional backer boards alongside if required, before tiling. Connect shower tray drain to drain bowl.
STEP 3Wetroom Shower Base Tray + Fast Flow Linear DrainUse a flexible tile adhesive to install tiles as required, and use a good even spread of adhesive. Ensure no excess adhesive enters the drain/bowl.
STEP 4Wetroom Shower Base Tray + Fast Flow Linear DrainOnce tiling is complete and the adhesive has cured you can commence grouting as required.
Living Heat Underfloor Heating Design Service At Living Heat we offer a free design service to make the whole process a little easier. If you would like a free quote or just a little more information please feel free to get in touch with us at 01803 316131. Our time and advice are free and we can recommend the best underfloor heating system for you.

Additional information

Coverage

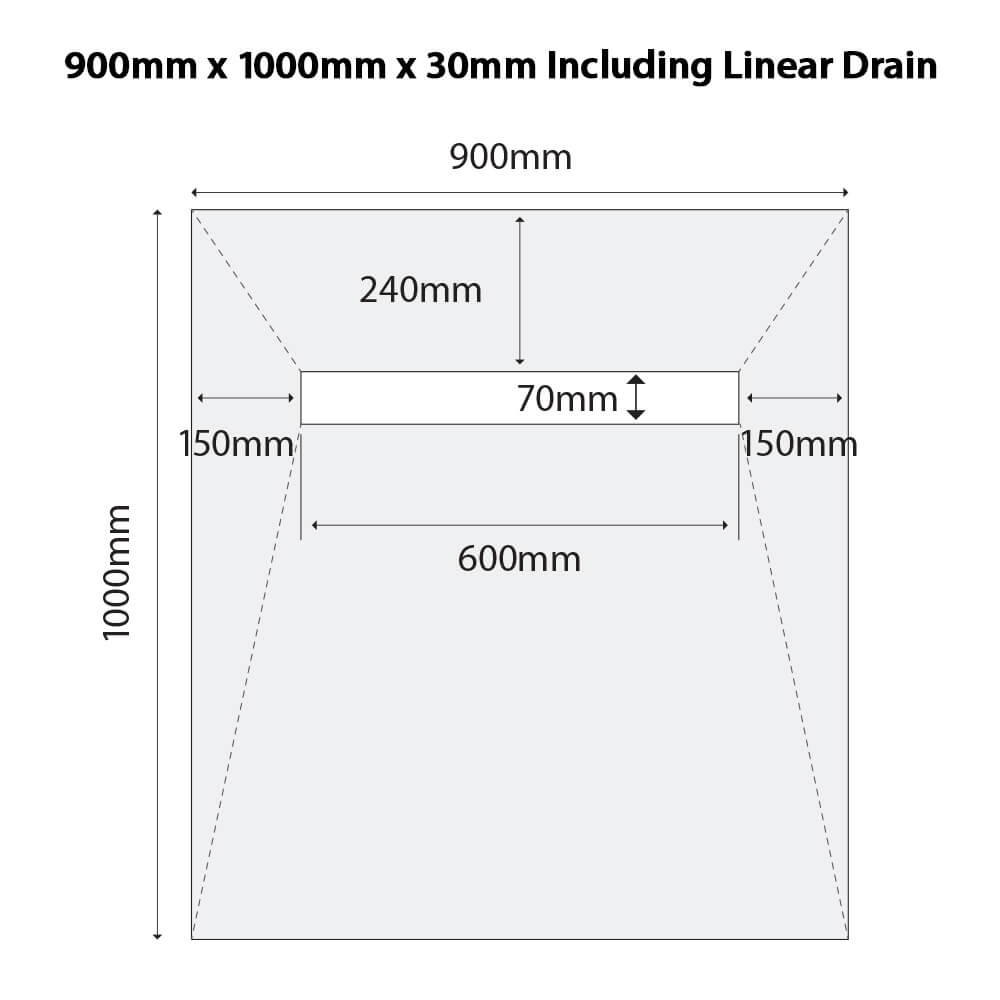

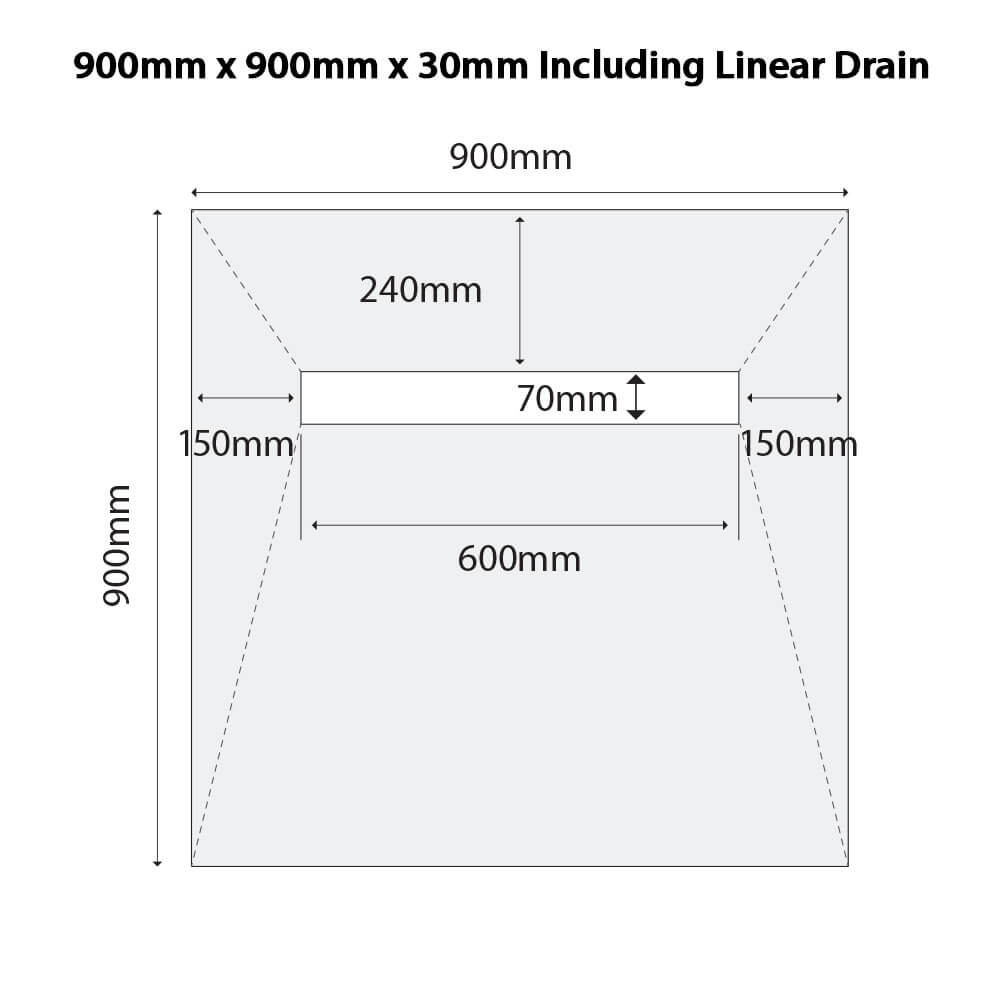

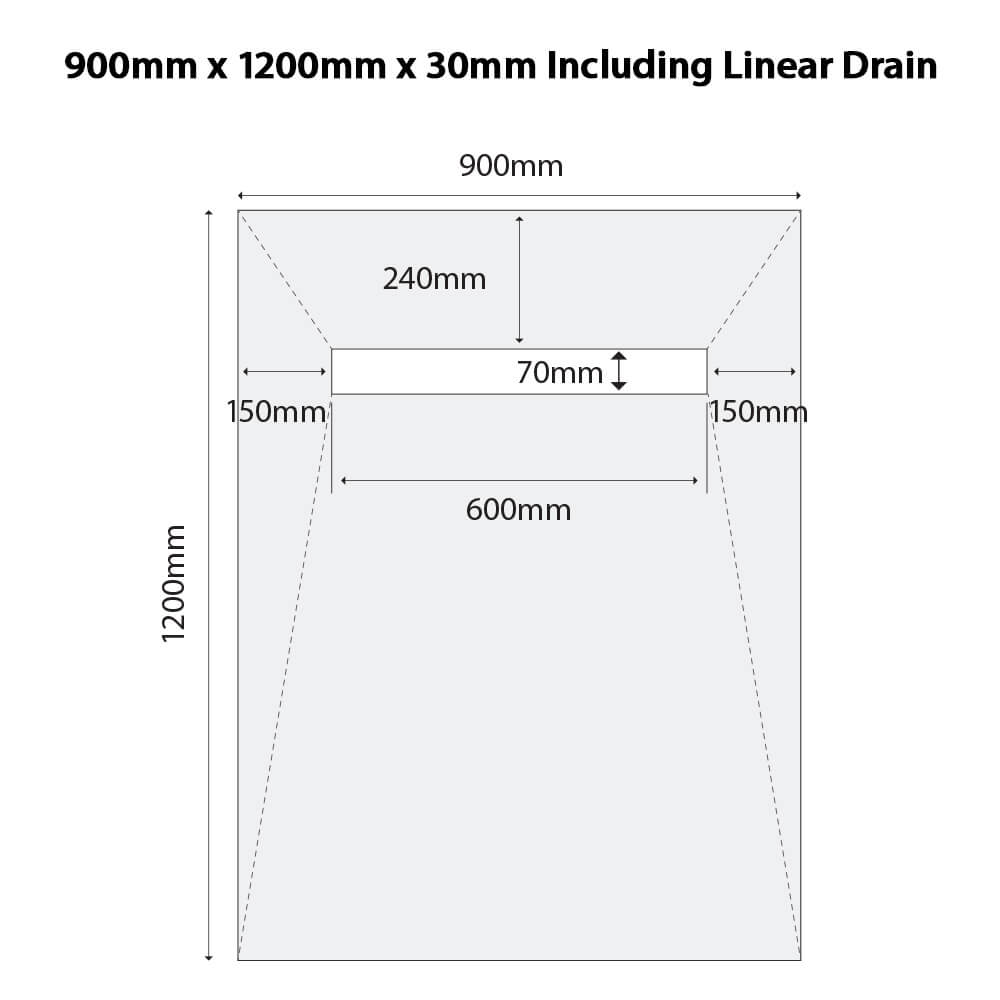

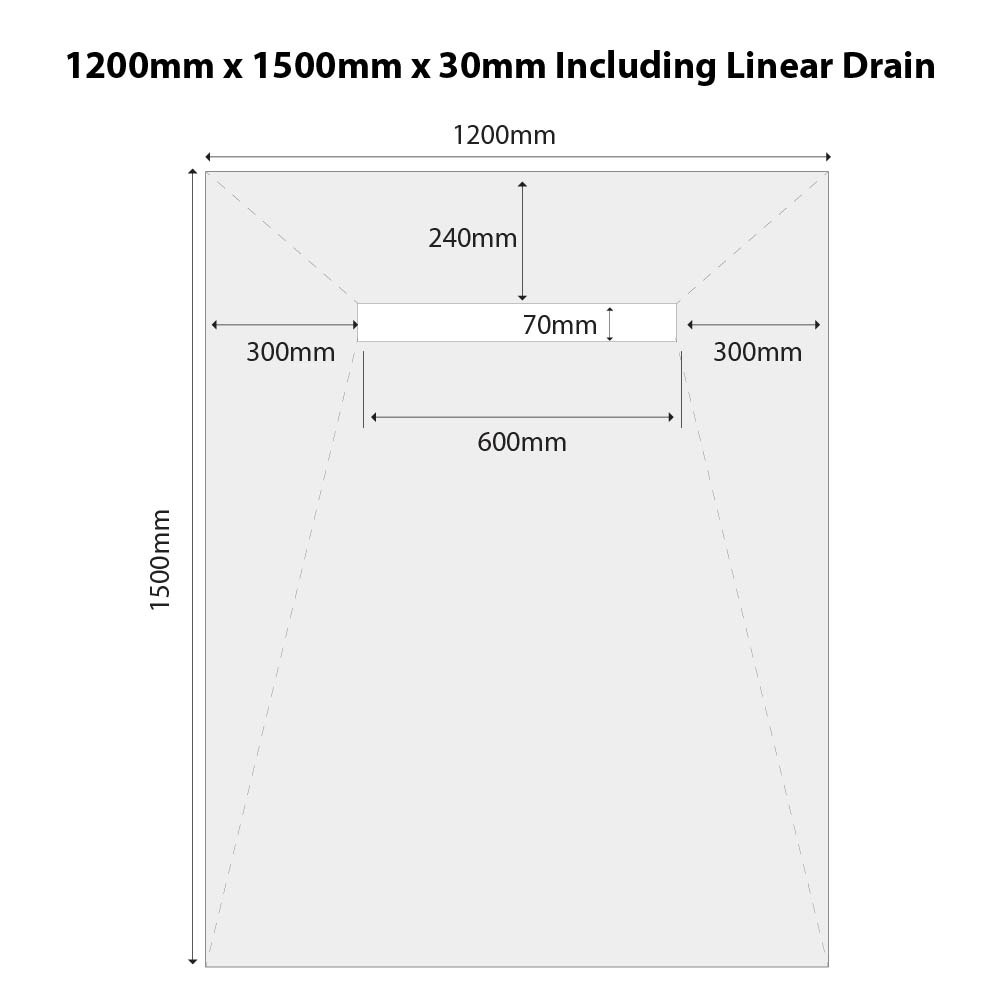

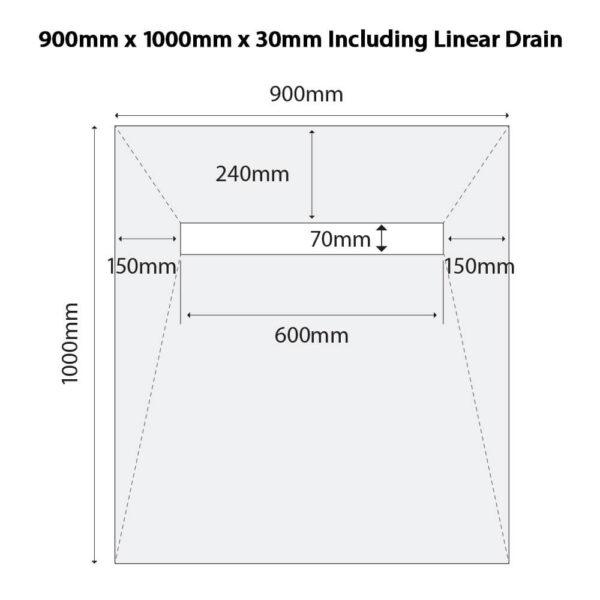

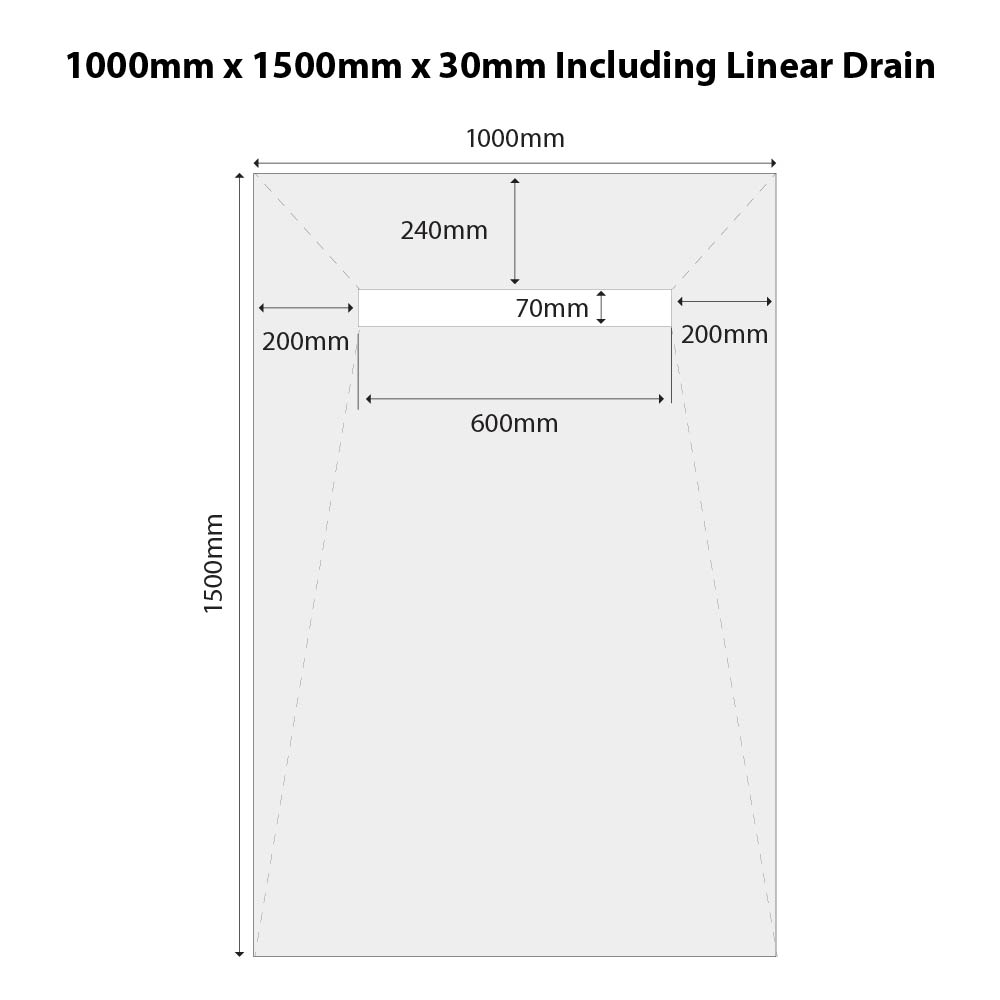

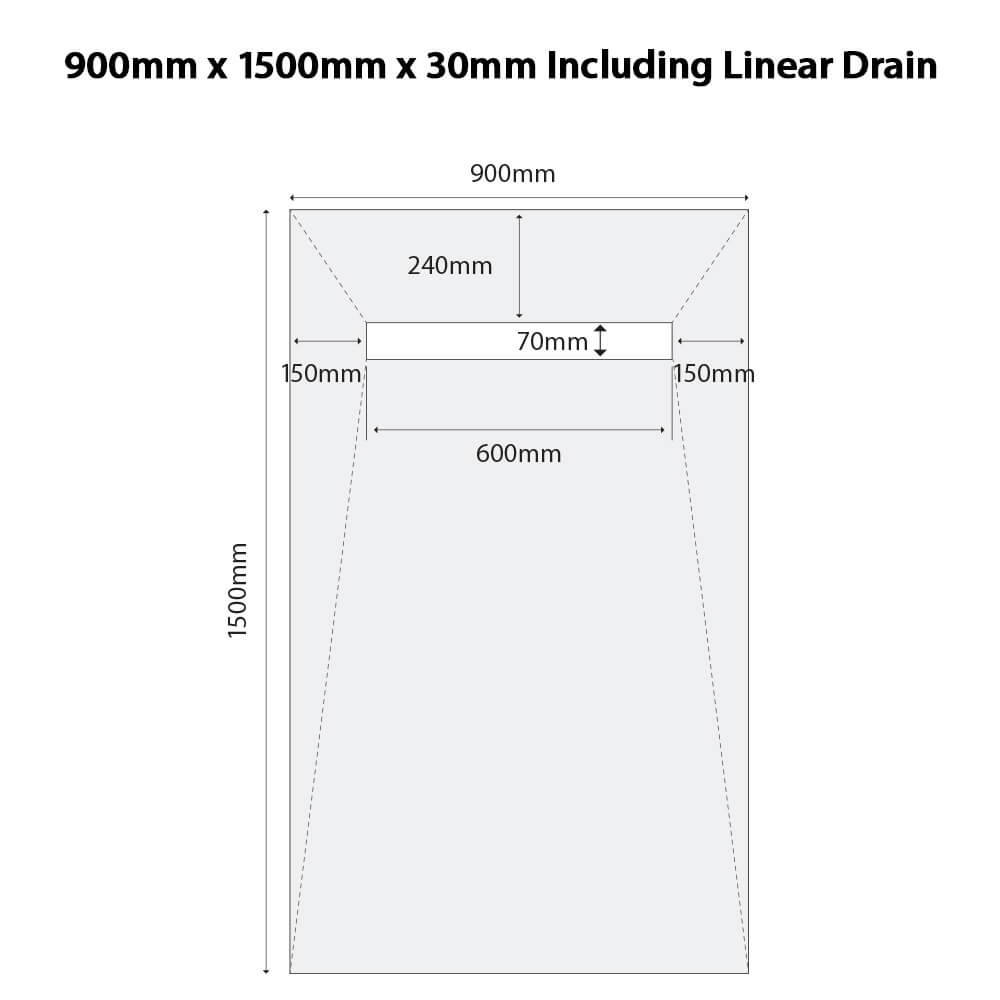

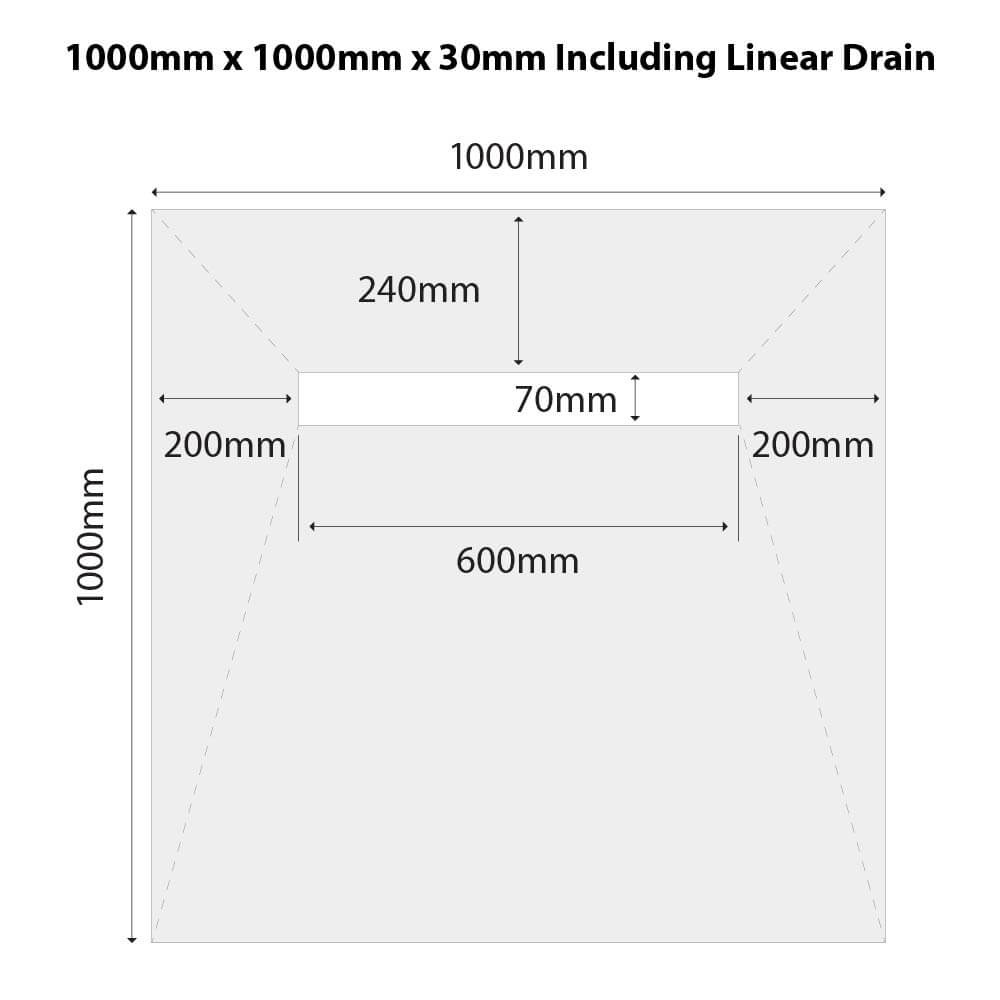

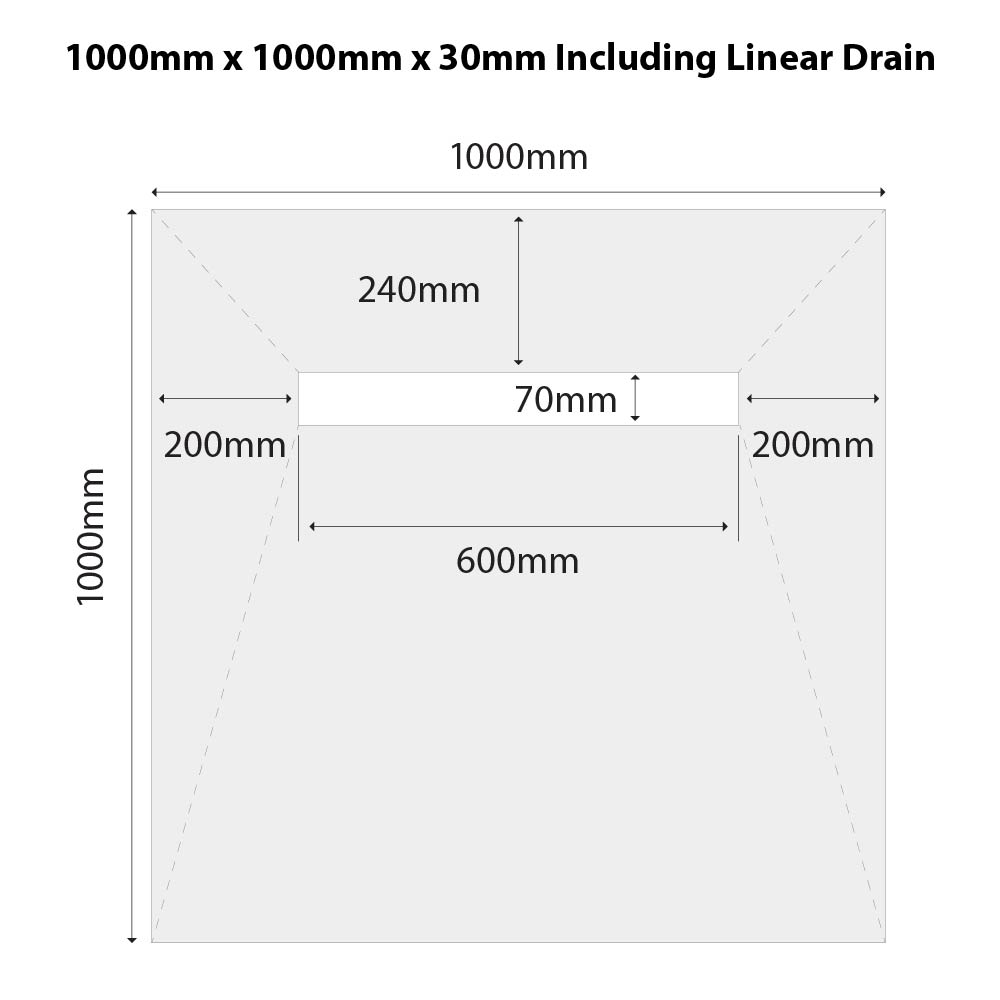

900 x 900 Offset Shower Tray, 900 x 1000 Offset Shower Tray, 900 x 1200 Offset Shower Tray, 900 x 1500 Offset Shower Tray, 1000 x 1000 Offset Shower Tray, 1000 x 1250 Offset Shower Tray, 1000 x 1500 Offset Shower Tray

Downloads

Shower Lay Wetroom Base Tray Instructions – DOWNLOAD (3.6mb / .pdf)

Delivery

We offer next working day delivery for virtually all products and standard UK mainland addresses. If you are not in a standard mainland address our delivery costs vary according to order size and location. For more information please feel free to send us an email or give us a call on 01803 316060. We are here to help.
Orders placed before 12:00 pm will be dispatched that day for a next working day delivery to all UK mainland addresses excluding, Channel Islands & Eire on our entire range of heating products.
