M1 Manual Thermostat
£14.99 Inc. VAT
£12.49 Ex. VAT
In Stock for Next Working Day Delivery

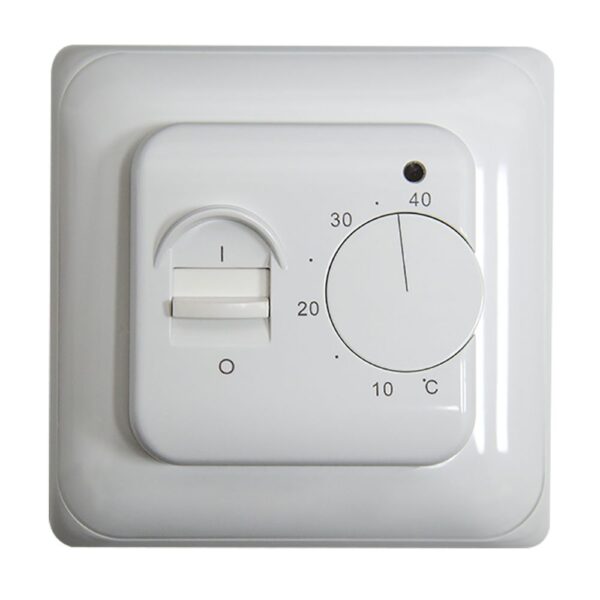

M1 Turn Dial Manual Thermostat
Reliable Analog Control for Electric Underfloor Heating
The M1 Turn Dial Manual Thermostat provides simple, effective control for virtually all types of electric underfloor heating systems. Its analog dial allows instant adjustment of floor temperature, making it easy to maintain the comfort level you desire.
The M1 thermostat comes complete with a floor temperature sensor and is supplied with a 1-year manufacturer’s warranty for peace of mind. Its low-profile design ensures it fits neatly on any standard single-gang back box.
What You Need to Know – Technical Overview
The M1 thermostat supports heating loads up to 16 amps (3600 watts). For larger areas or higher loads, additional relays or contactors may be required. Alternatively, multiple thermostats can be installed to split heating into separate zones for optimal performance.
Always connect the thermostat to a dedicated power supply from the main consumer unit and ensure suitable electrical protection, such as an RCD or spur switch, is installed by a qualified electrician.
Free Technical Support

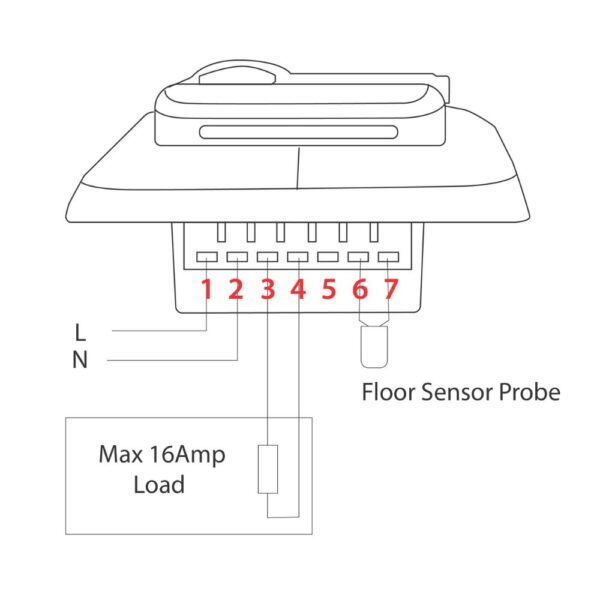

All Living Heat thermostats include comprehensive wiring diagrams and easy-to-follow installation instructions. Our friendly technical team is available to provide guidance if you need additional help.
Features & Technical Specifications
| M1 Thermostat Specifications | |
|---|---|
| On/Off Switch | Low-Profile Temperature Turn Dial |
| Full Fitting Instructions / Free Phone Helpline | Floor Temperature Sensor |

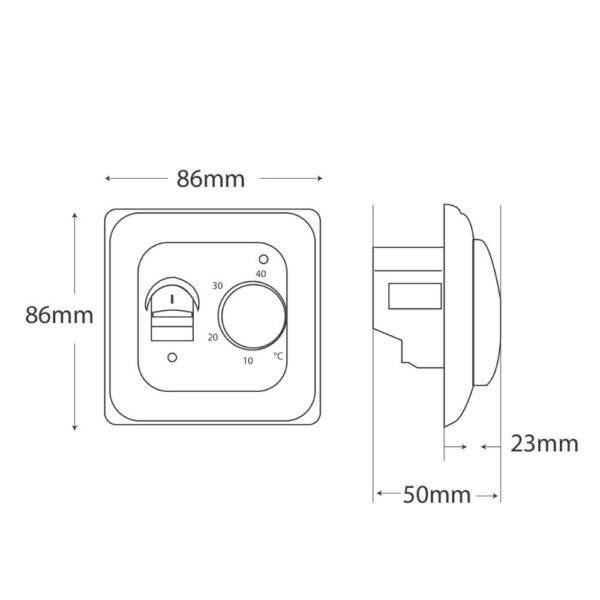

| Analog (Non-Digital) | Fits 35mm Depth or Above Single-Gang Electrical Box |
| 1-Year Manufacturer’s Warranty | Supply Voltage: 230/240V |
| 16 Amp / 3600 Watt Max Load | Temperature Range: 5°C – 40°C |
| Extendable 3–15m Floor Probe | Calibration Tool Behind Dial |
Free Underfloor Heating Design Service
Living Heat offers a free underfloor heating design service to simplify your project. Whether you are planning a new installation or upgrading an existing system, our team can provide expert advice, ensuring optimal layout and performance.
For a free quote or additional information, call 01803 316131. Our guidance is always free, and we will help you choose the most suitable underfloor heating system for your home or commercial space.
