Tile Backer Insulation Boards
From: £44.95 Inc. VAT
£37.46 Ex. VAT

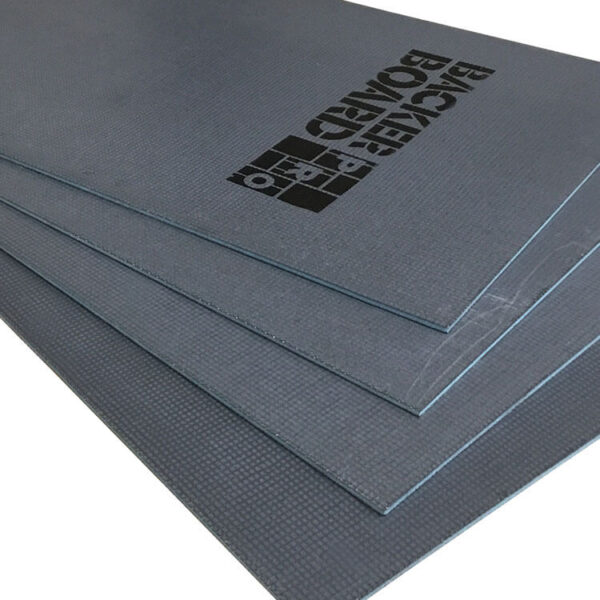

Tile Backer Insulation Board
Choice of the Professional
Tile Backer Thermal Insulation Boards come in 6mm, 10mm, 20mm, and 30mm thicknesses.
They insulate and resurface walls and floors while delivering a durable, high-performance finish.
Professionals prefer these boards for Underfloor Heating (UFH) systems and Wet Room installations.,/p>
You can tile, plaster, or render over them, making them highly versatile.
On overboarded or plywood subfloors, secure the boards using Cement Board Washers and suitable screws at a maximum of 300mm centers.
When installing on concrete floors, glue the boards down using Flexible Tile Adhesive in accordance with BS 5385-1: 2018.
Enhance UFH Efficiency with Insulation
Living Heat Tile Backer Insulation Boards significantly improve underfloor heating system performance.
Without insulation, UFH warm-up times on concrete floors can be long and inconsistent.
Installing these boards can reduce warm-up times to as little as 10 minutes, delivering faster heating and consistent comfort.
Faster heating reduces running costs, improves reliability, and ensures your UFH system operates efficiently.
The boards also provide additional acoustic insulation, helping reduce floor noise, and add structural support for your tiling or stone installation.
The boards are lightweight yet strong, making them easy to cut, handle, and install.
Their high-density structure ensures they remain flat and stable over time, preventing movement or unevenness in your finished floor or wall surface.
High-Performance Technical Construction
Living Heat Tile Backer Insulation Boards use a high-density extruded polystyrene (XPS) core, engineered to deliver excellent thermal insulation while maintaining exceptional compressive strength.
The closed-cell structure prevents water absorption, making the boards completely waterproof and ideal for wet rooms, bathrooms, and kitchens.
With a strong yet lightweight design, the boards resist deformation under load, providing a stable base for tiles, stone, and floor finishes without flexing or movement.
The insulation layer significantly reduces downward heat loss, directing warmth upwards into the room for faster response times and improved energy efficiency when used with underfloor heating systems.
Information
- Available in 6, 10, 20 & 30mm
- Ideal for Wet Rooms
- Suitable for Domestic or Commercial Installations
- 100% Waterproof
- Compatible with Most Floor Types
- Fix using Fixing Discs
- UFH Compatible
- Can be Tiled Directly
- Easy to Cut and Handle
- Free Technical Assistance
- After Sales Support
- Next Day Delivery Service
- All Types of Electric & Water UFH Systems
- Decoupling Membranes
- Concrete and Timber Sub-Floors
- Under Ceramic, Porcelain, Natural Slate, and Stone Floors
- Use on Walls and Floors, Ideal for Wet Rooms
Technical Information
Tile Backer Insulation Board – Technical Data
Product Name: Tile Backer Insulation Board
Application: Thermal insulation under tiles and stone floors, suitable for underfloor heating and general subfloor thermal management
Thickness / Depth
Available in 6 mm, 10 mm, 20 mm, 30 mm
Board Size
1200 mm × 600 mm
Coverage per Board / Pack
0.72 m² per board
7.2 m² per pack of 10 boards
Water Penetration (96 hours)
0.00 – Fully Waterproof
Thermal Properties
Thermal Conductivity: 0.027 W/mK – minimizes heat loss
Thermal Resistance: 0.85 sqmK/W – blocks cold from subfloor
Fire Protection
BS 3837 B1 DIN British Standard
Compression Strength
400 KPa (25% compression) – supports a minimum of 40 metric tonnes per m² without damage
Key Benefits
Ideal for under-tile insulation, including wetrooms and standard floors
Compatible with underfloor heating systems to improve efficiency and response
Provides a stable, durable base for tiles and stone
Waterproof and moisture-resistant, preventing subfloor damage
Reduces thermal loss and improves energy efficiency
High compression strength allows heavy loads without deformation
Additional Services
Free technical support for installation and system design
Free design and quotation service
Compatible with adhesive and self-levelling compounds for professional installation
