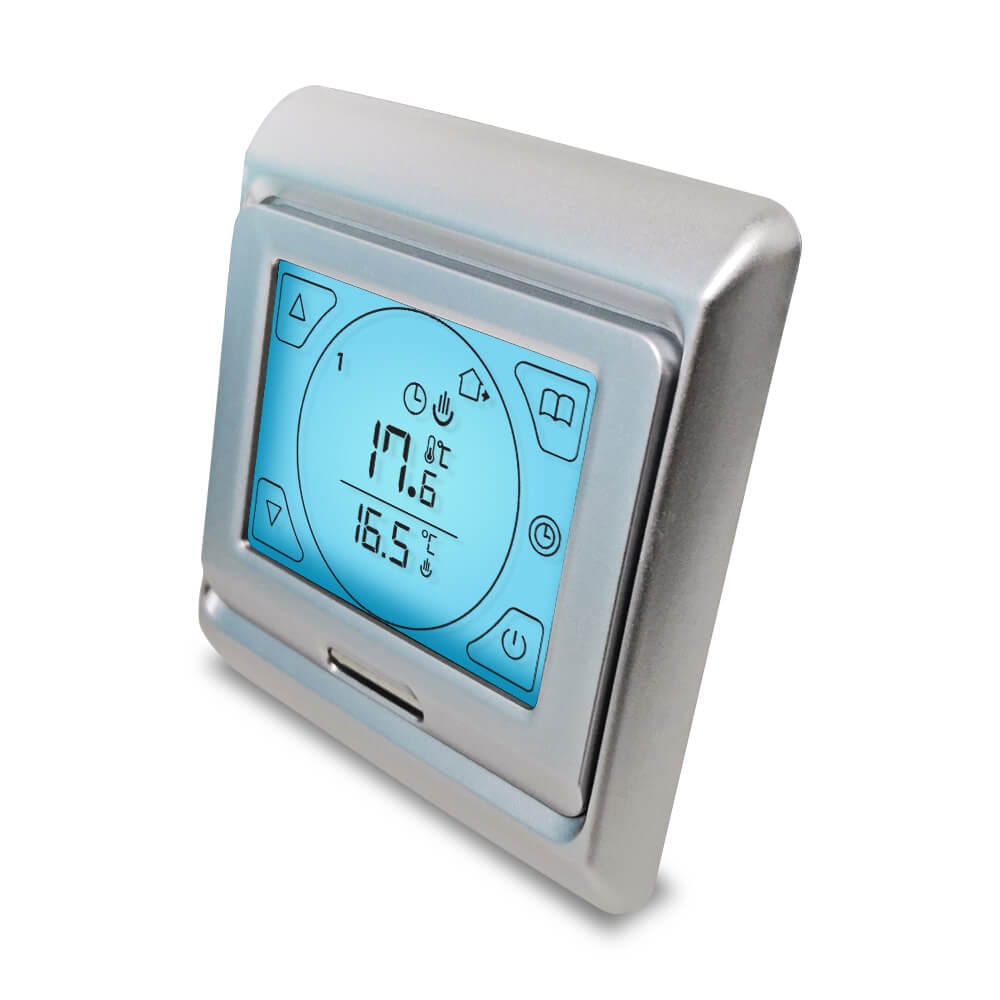

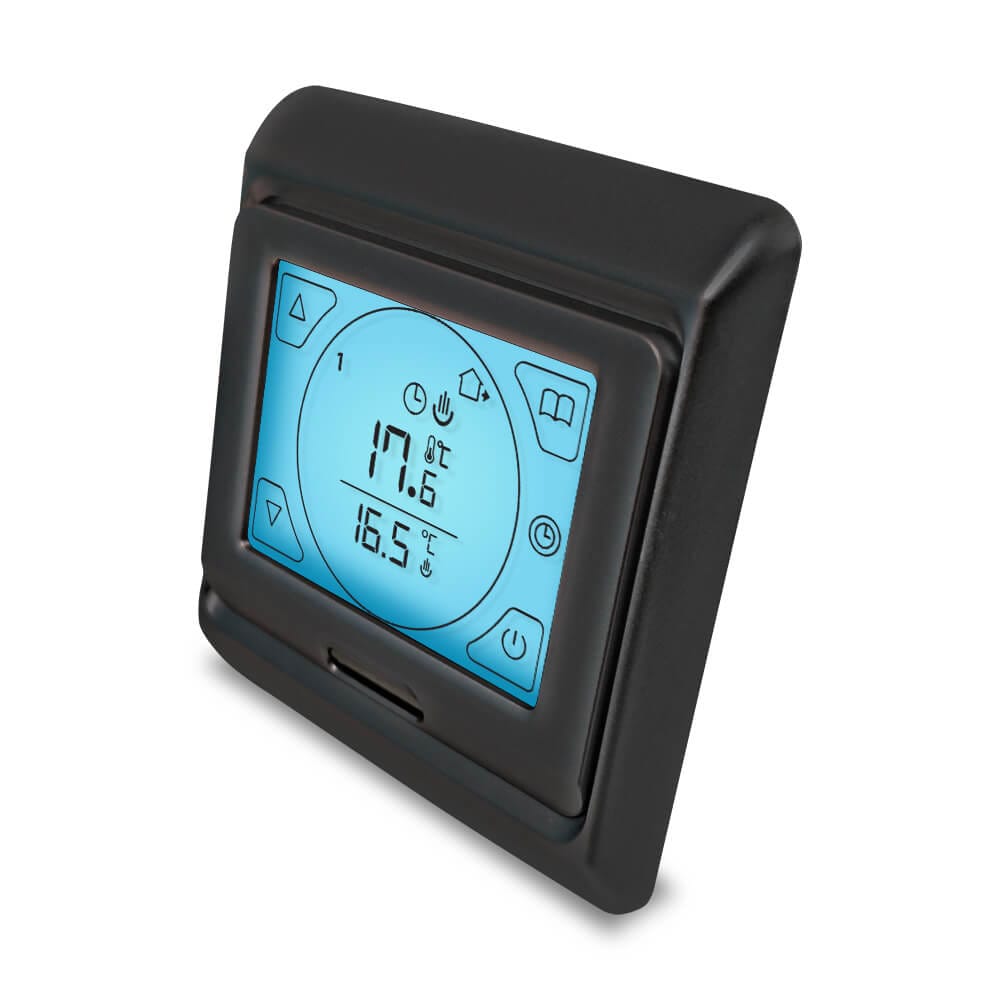

Touch Screen LCD Programmable Thermostat
Designed to control virtually all types of underfloor heating systems they have a modern low profile design but remain easy to operate and will allow the user to control the heating to suit their lifestyle. Touchscreen thermostats are programmable controllers with both air and floor sensors, and a large 2.8″ blue LCD screen.
With smart heating, and control features found in most modern thermostats but remain easy to use with all underfloor heating systems. Once installed they will add a stylish modern touch to any room. If you have any questions about the thermostat or would just like a little advice. Please feel free to get in touch with us our technical team will be happy to answer any questions you may have. T700 thermostat offers an easy-to-use way to control your heating system’s floor temperature. The T700 comes complete with a floor probe and a 1-year manufacturer’s warranty.
What You Need To Know & The Technical Bits!
A maximum of 16 amps or 3600 watts of heating can be installed onto this thermostat. Larger loads as a result will require either a relay switch. Another alternative is to have additional thermostats installed and split the heating into zones. Also, your heating system should be connected to a suitable residual current device or RCD, from the main fuse board within the property or as part of the underfloor heating power supply.
Free Technical Support
All Living Heat thermostats come with full wiring diagrams and full fitting instructions. If you would like any further information, please do not hesitate in contacting our technical team.
|Features / Technical Specifications|
|Easy To Use & Program||Manual override facility|
|Full fitting instructions and a Free Phone Help Line||Floor temperature sensor|
|Low Profile Design||Fits a min 35mm deep 1 gang electrical wall box|
|1-Year manufacturer’s warranty||Supply Voltage 230/240v|
|16amp / 3600watt max load||Temperature Range 5°c – 50°c|
|Extendable 3-15m floor probe||Holiday and economy power settings|
|4 Timed events per day and 7-day programmable cycle||Air and Floor temperature sensors|
Living Heat Underfloor Heating Design Service At Living Heat we offer a free design service to make the whole process a little easier. If you would like a free quote or just a little more information please feel free to get in touch with us at 01803 316131. Our time and advice are free and we can recommend the best underfloor heating system for you.
