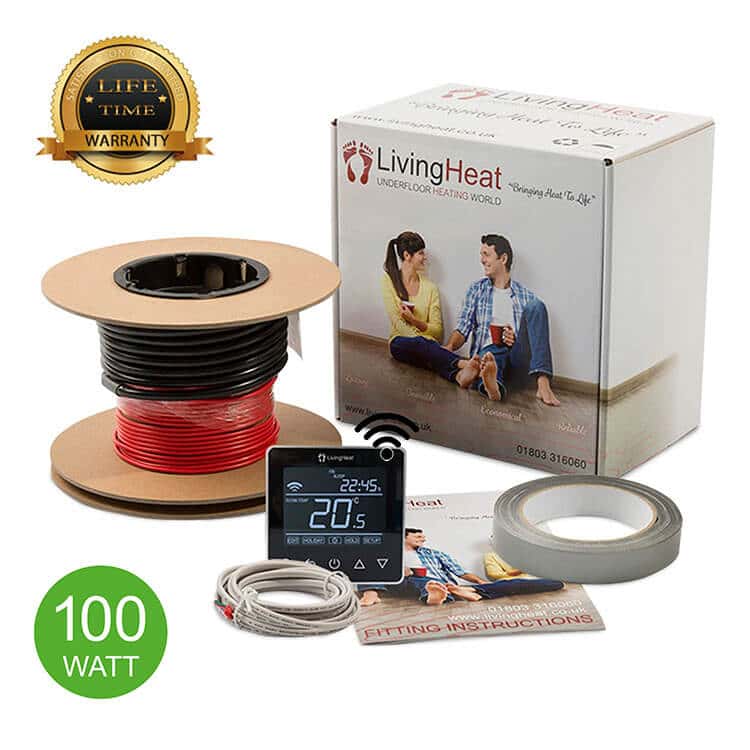

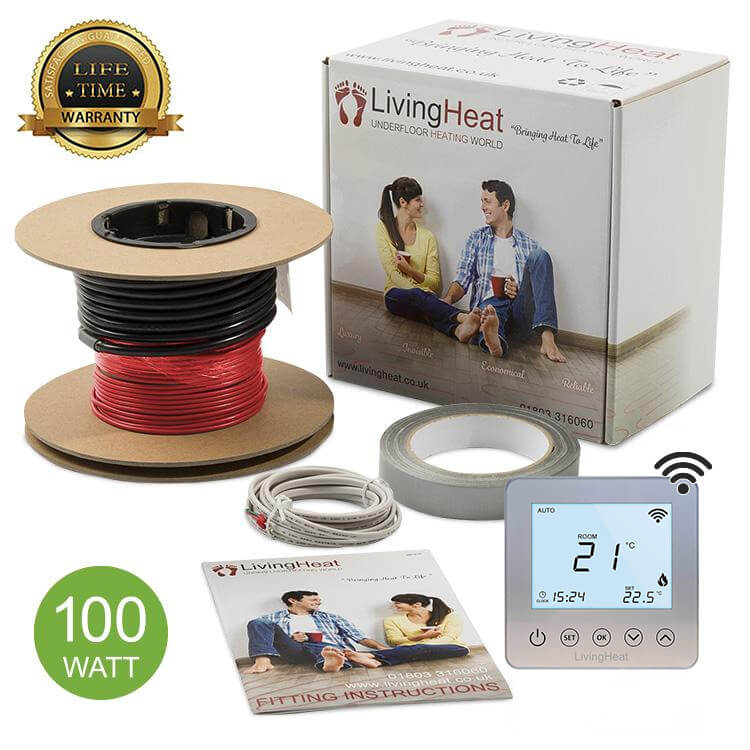

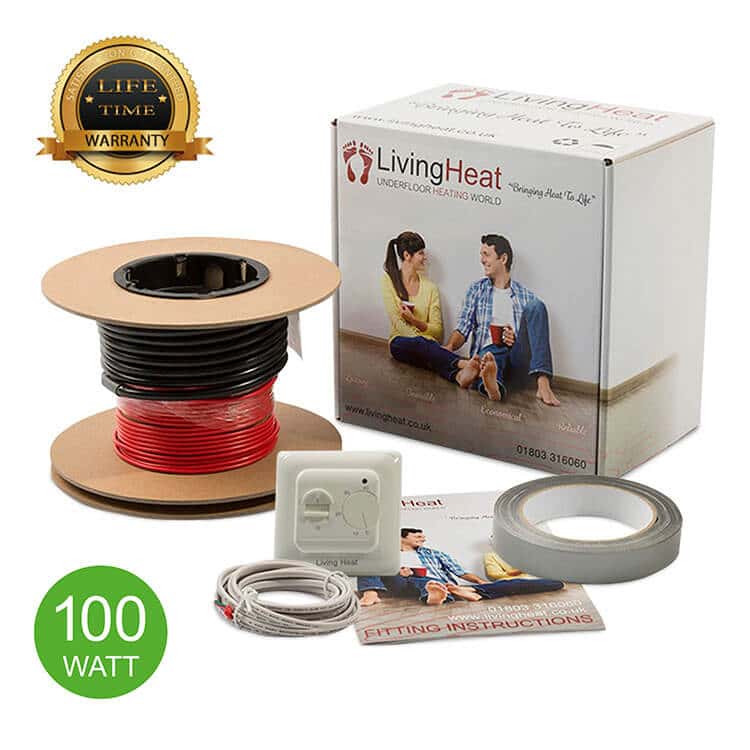

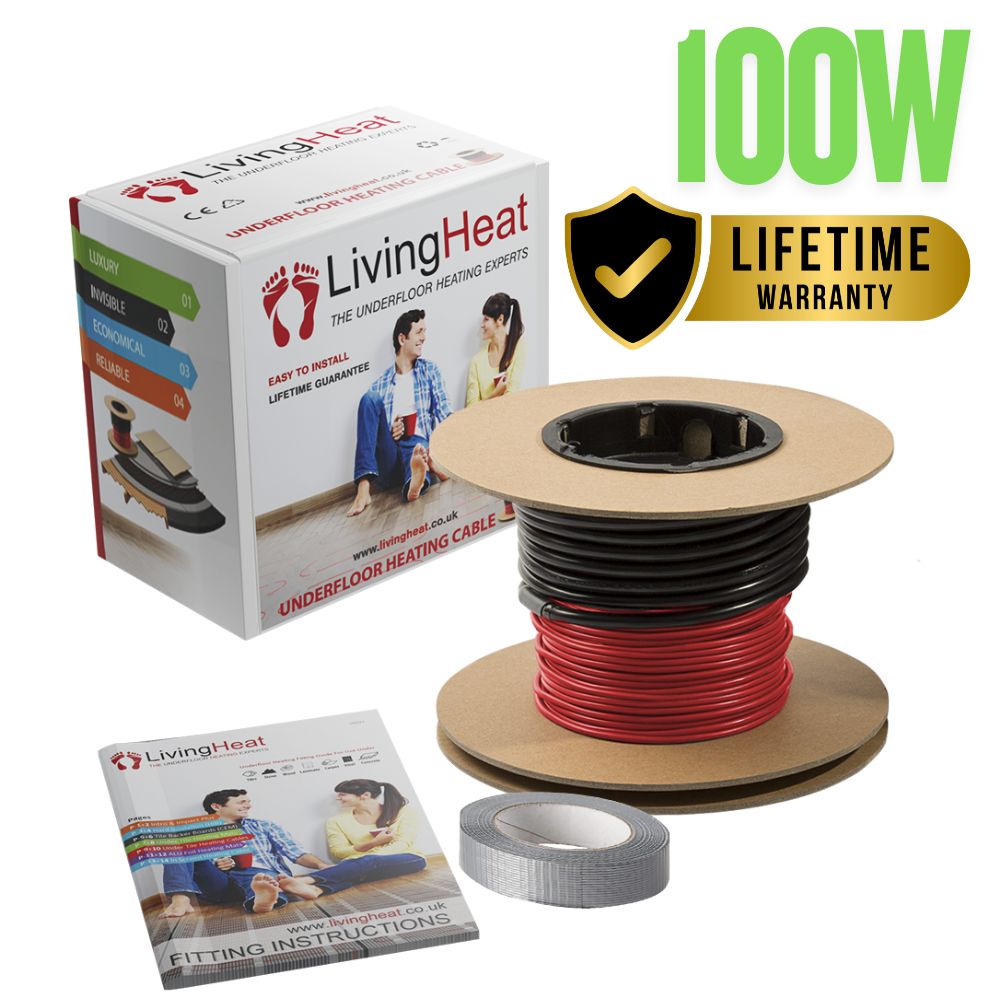

Underfloor Heating Cable 100w

From: £17.99 Inc. VAT
£14.99 Ex. VAT

Loading...
Part No: N/A
IMPORTANT! All our electric underfloor heating systems must be run via suitable 'Fused Spurs'. Please consult an electrician if in doubt.
LARGE AREAS: Multiple mats or cables can be combined to cover any sized area for sizes greater than 12sqm.
Insulation is especially important on concrete floors however we would highly recommend it in any situation. XPS Boards(Adhesive) or Tile Backer Boards(Screws & Washers)

Underfloor Heating Cable 100w

Underfloor Heating Cable 100w/m2. Designed to be a background heat source in common areas of your home. If more than 80% of the available floor area is covered.

It is also recommended that an insulation layer is installed under the heating system. This is especially relevant on a concrete subfloor because the concrete floor will absorb the heat.

As a rule of thumb, we would recommend heating between 70 and 90% of your total floor area for maintaining a primary heat source. Most of all if you have any questions or would just like a little advice take a look at our installation guides. Finally, give us a call for a personal and also free design service on 01803 316060.

Features.

  • 100w/m2 When Spaced At 120mm
  • For Domestic Or Commercial Installs
  • IPX7 Waterproof Rating
  • Suitable As Background/Comfort Heat
  • Compatible With Most Floor Types

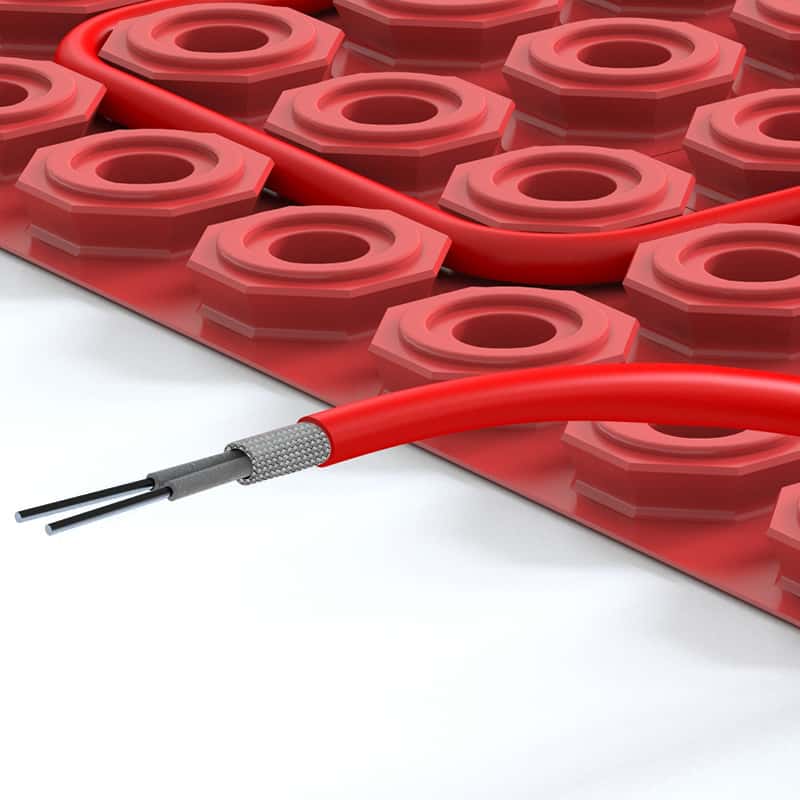

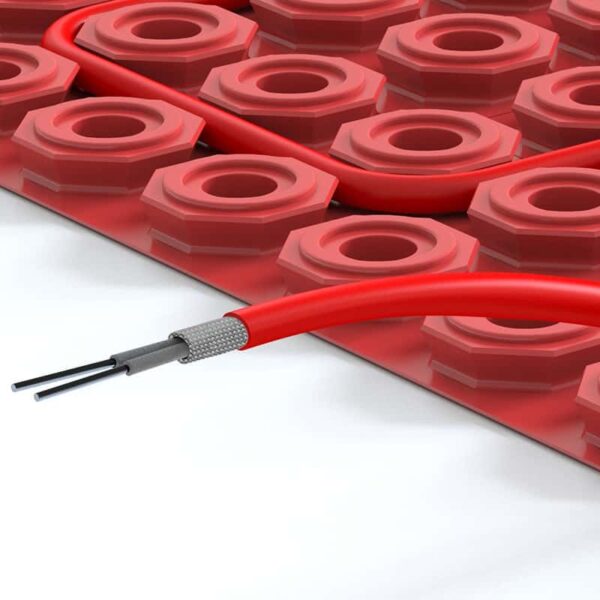

  • Designed To Be Used With HC Decoupling
  • Compatible With XPS & Tile Backers
  • Embed In Flex Adhesive Or Self Level
  • Multiple Wire Sizes Available
  • Largest Wire In UK At 200LM
  • Free Technical Assistance
  • After Sales Support
  • Lifetime Guarantee
  • Next Day Delivery Service

Underfloor Heating Cable Floor Build-up

Starting at the subfloor which can be either wood or concrete. The following layer will be a thin bed of flexible adhesive about 4mm thick to stick down your insulation boards.

Next, you will have your insulation board, creating a base to lay your underfloor heating cable. Once the cable is laid you have two options. In this example we have shown the tiles being laid directly onto the heating cable, however, a self-levelling compound can also be poured over the cables before tiling, providing even conduction of heat and a protective layer whilst tilling.

Finally, the tiles can be stuck down with a standard 6mm bed of flexible adhesive. Please also ensure that the tiles are laid with an even bed of adhesive for equal heat distribution and cable coverage. So, in conclusion, the floor will be raised dependent on a few variables:

  • 4mm Bed of flexible adhesive
  • 6mm Insulation board. (10mm & 20mm insulation also available)
  • 2.5mm Underfloor Heating Cable 100w. Enveloped into leveling or tile adhesive
  • 6mm Bed of tile adhesive
  • Tiles in this example 10mm tiles
Underfloor Heating Cable Floor Build Up

Living Heat Underfloor Heating Design Service At Living Heat we offer a free design service to make the whole process a little easier. If you would like a free quote or just a little more information please feel free to get in touch with us at 01803 316131. Our time and advice are free and we can recommend the best underfloor heating system for you.

Additional information

Thermostat

, , , , , , , , , , ,

Supply Voltage

220-240v Electric Underfloor Heating System.

System Power

100 Watts per square meter.

Warranty

Life Time Warranty.

Installation

Full Fitting Instructions.

Technical

Free Technical Help Line.

Thermostats

Instructions

This PDF (1.85mb) instruction guide covers Living Heat Underfloor Heating Mats and Loose Cable Systems as well help and advice regarding installation of suitable hard and tile backer board insulation boards. This guide should answer most questions you may have regarding installing electric underfloor heating systems, but if you still have questions please feel free to contact us and one of our technical team will be happy to help.

DOWNLOAD

Delivery

We offer next working day delivery for virtually all products and standard UK mainland addresses. If you are not in a standard mainland address our delivery costs vary according to order size and location. For more information please feel free to send us an email or give us a call on 01803 316060. We are here to help.
Orders placed before 12:00 pm will be dispatched that day for a next working day delivery to all UK mainland addresses excluding, Channel Islands & Eire on our entire range of heating products.
