Inscreed Heating Cable 180w

From: £25.99 Inc. VAT
£21.66 Ex. VAT

Part No: N/A

Electric Underfloor Heating InScreed Heating Cable

Inscreed, electric underfloor heating cables are an in-floor heating system. Our heating cables are designed to be buried under a 50-75mm thick bed of concrete screed. Consequently, the heating cable is ideally installed on a new build project during the construction stage. Working just like a water underfloor heating system does, once installed the cable requires little to no maintenance.

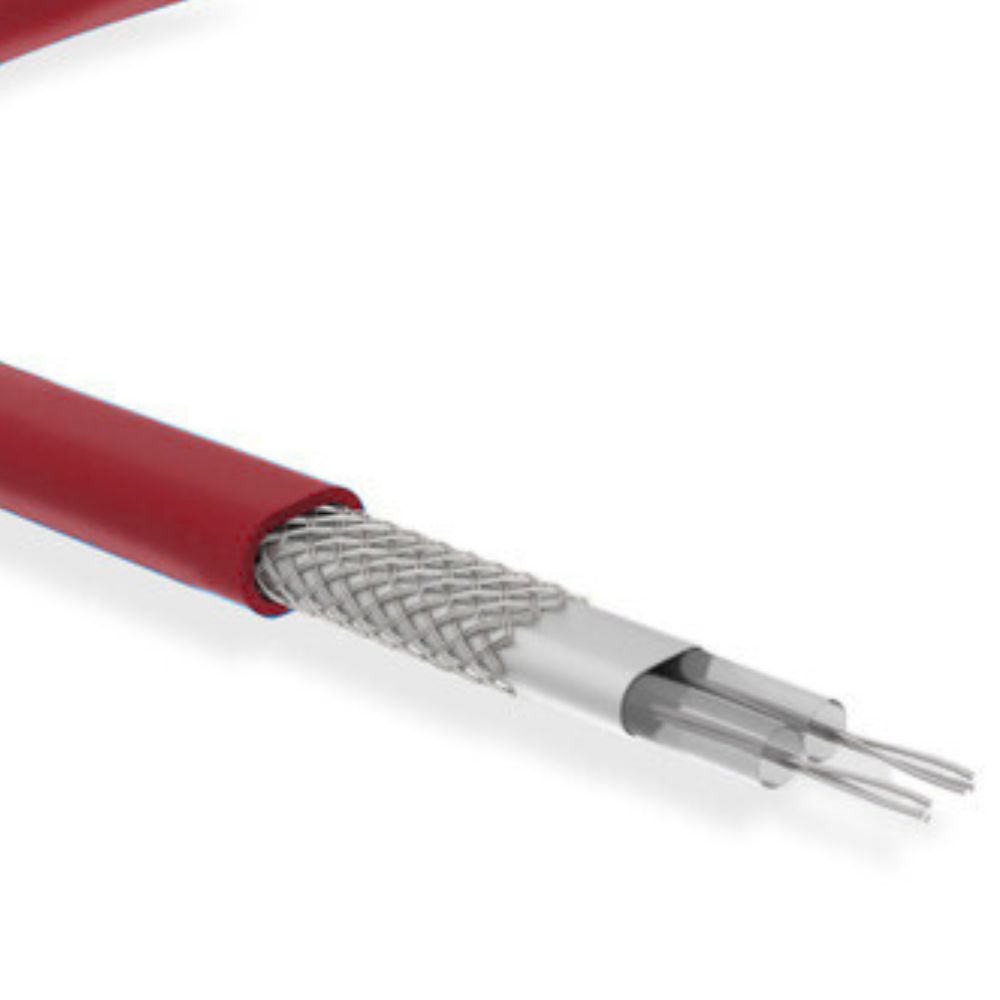

The Inscreed cable is an ultra-powerful and very durable heating cable, which is very easy and quick to lay. The Inscreed cable has a ‘Life Time’ warranty and is suitable for under all floor coverings. Making it an especially adaptable heating cable, for new build properties, as the final floor covering may not have been decided upon. Please feel free to call or email us directly at 01803 316060 if you wish to discuss your project.

  • For New Builds Or Extensions
  • Domestic Or Commercial Installs
  • IPX7 Waterproof Rating
  • Suitable As Primary Heat / Secondary
  • Compatible with all floor coverings

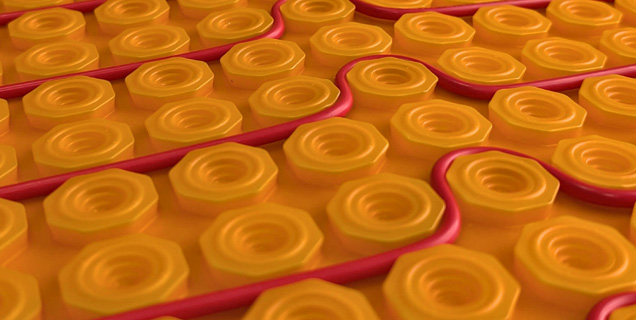

  • Can Be Used With HC Decoupling
  • Compatible With XPS Insulation Boards & Tile Backers
  • Can Be Used With Kingspan Or Celotex
  • Embed In 50-75mm Concrete Screed
  • Multiple Wire Sizes Available
  • Free Technical Assistance
  • After Sales Support
  • Lifetime Guarantee
  • Next-Day Delivery Service

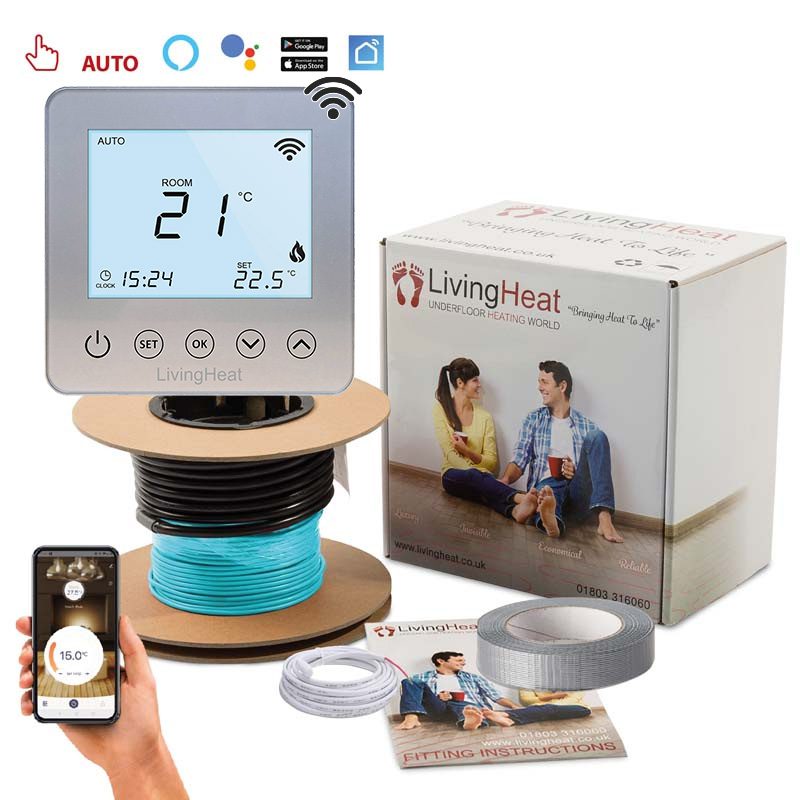

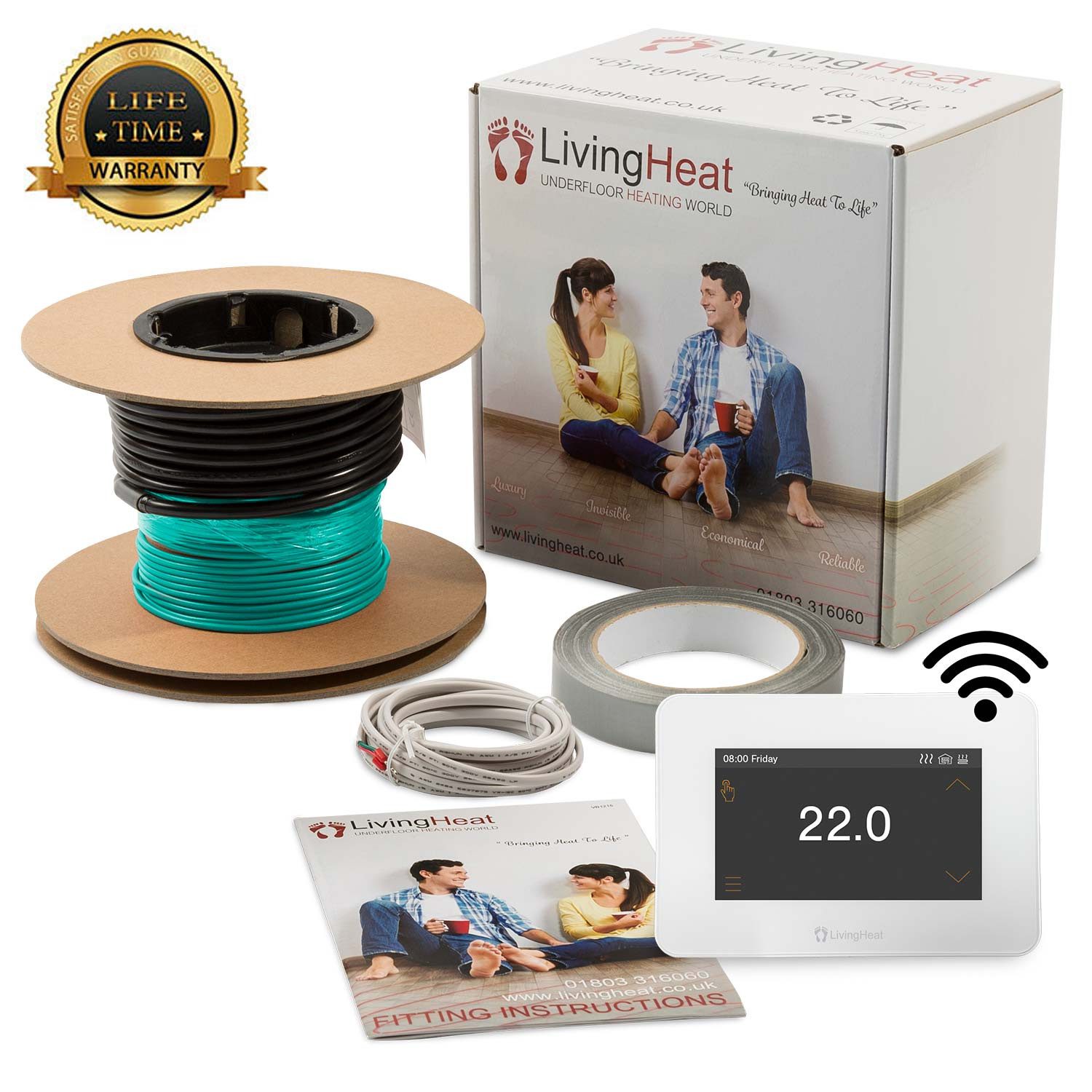

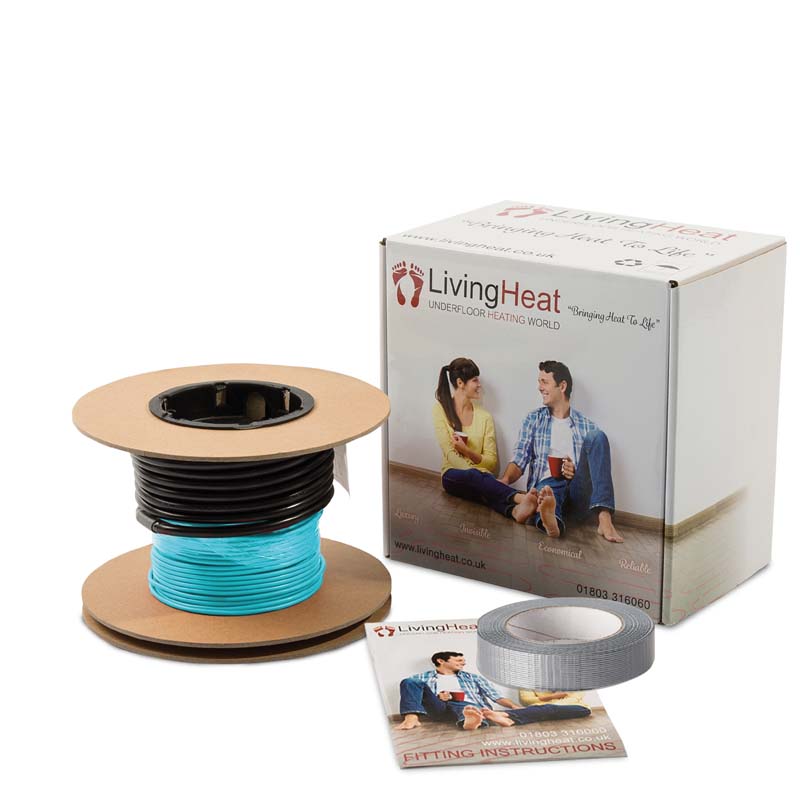

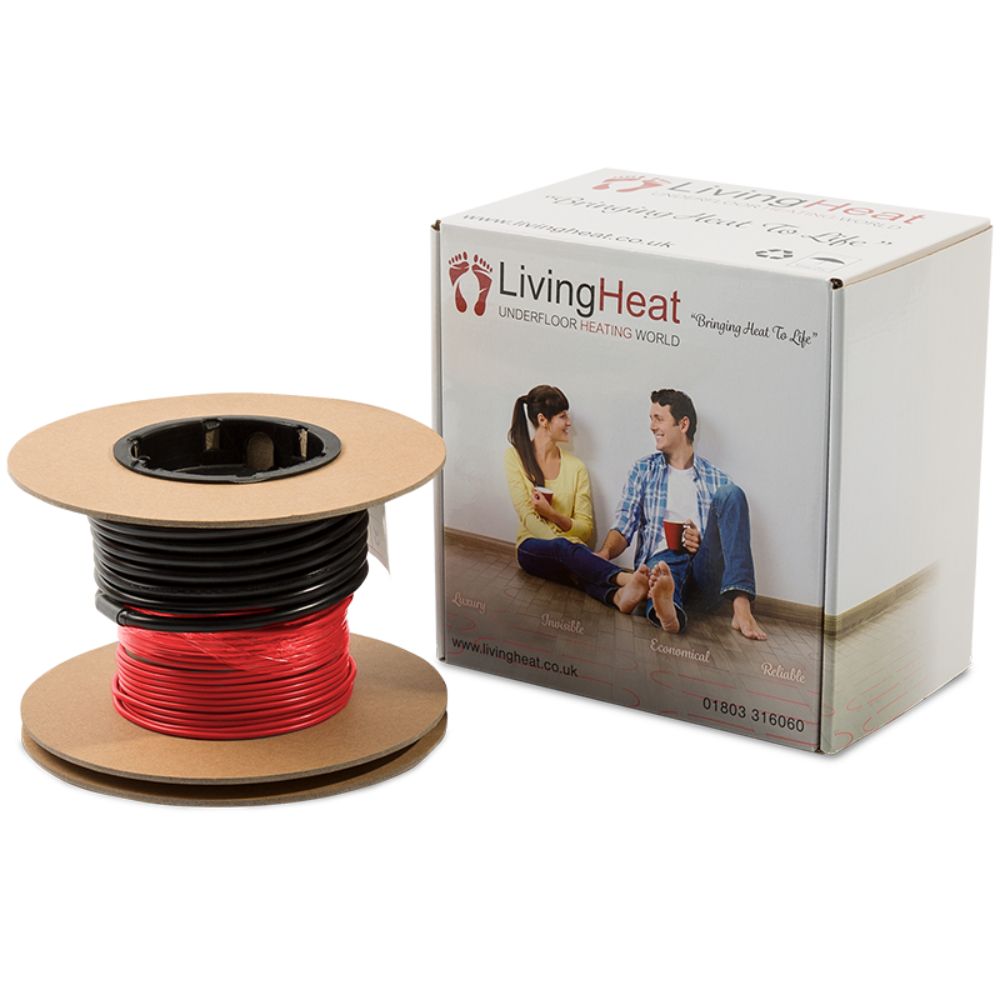

Inscreed Heating Cable Kits Come With
Heating CableProgrammable air and floor thermostat (optional)
Floor Probe included with ThermostatHigh adhesion fixing tape
Life Time Warranty (thermostat 1 year)Full fitting instructions
Technical Free Phone HelplineFREE next working day delivery service

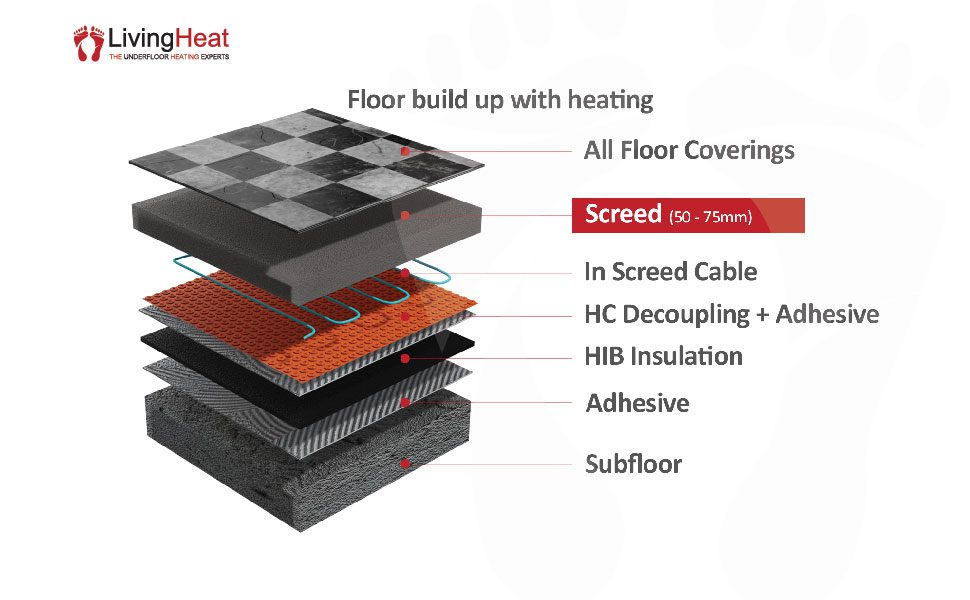

Electric Underfloor Heating Cable Floor Build Up

Starting at the bottom of your installation with the subfloor being either wood or concrete. The first layer would be a thin bed of flexible tile adhesive about 4mm thick. Stick down your insulation boards much like with the under-tile heating systems. Next, you’re underfloor heating insulation board, to reflect the heat into the concrete screed floor. This will also create a flat solid base to lay your underfloor heating cable onto.

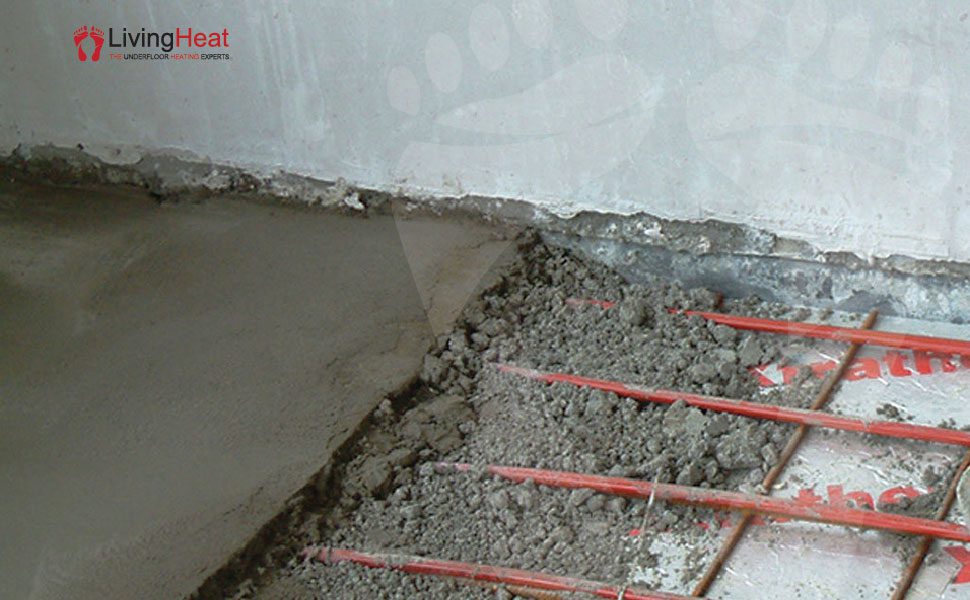

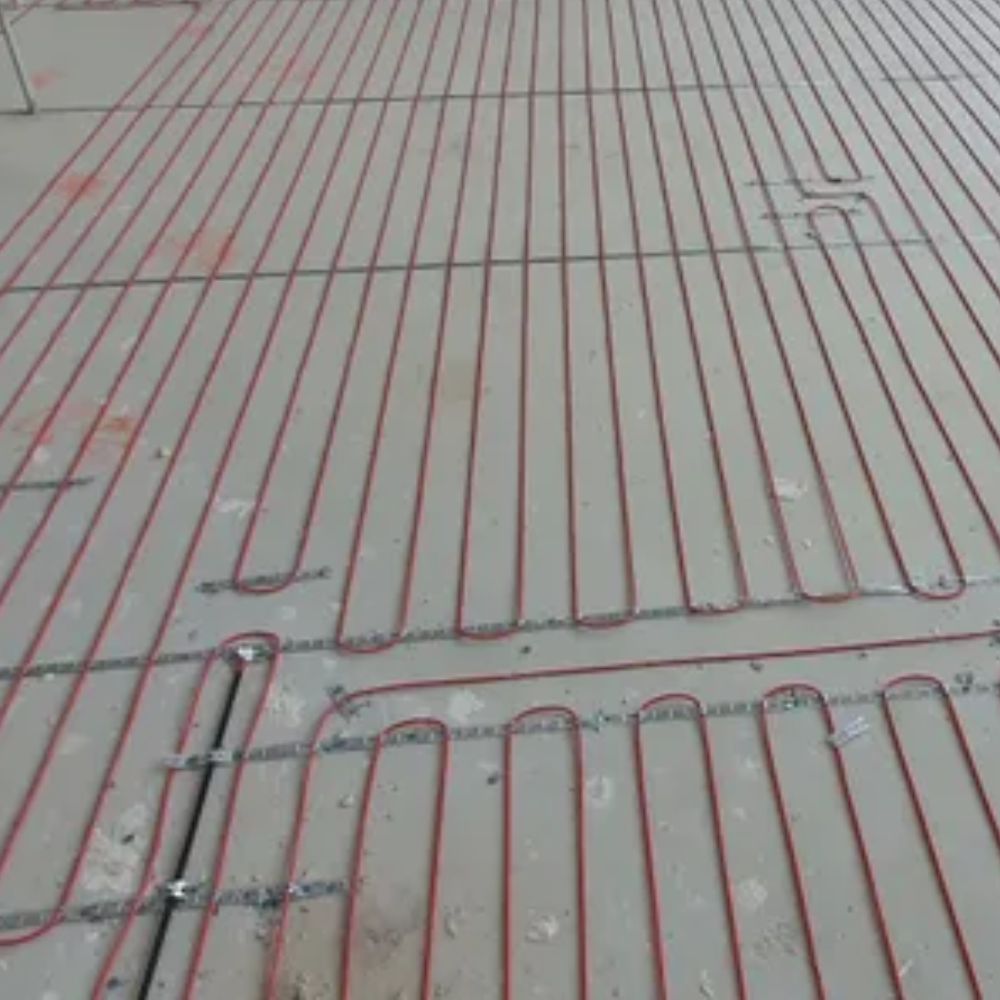

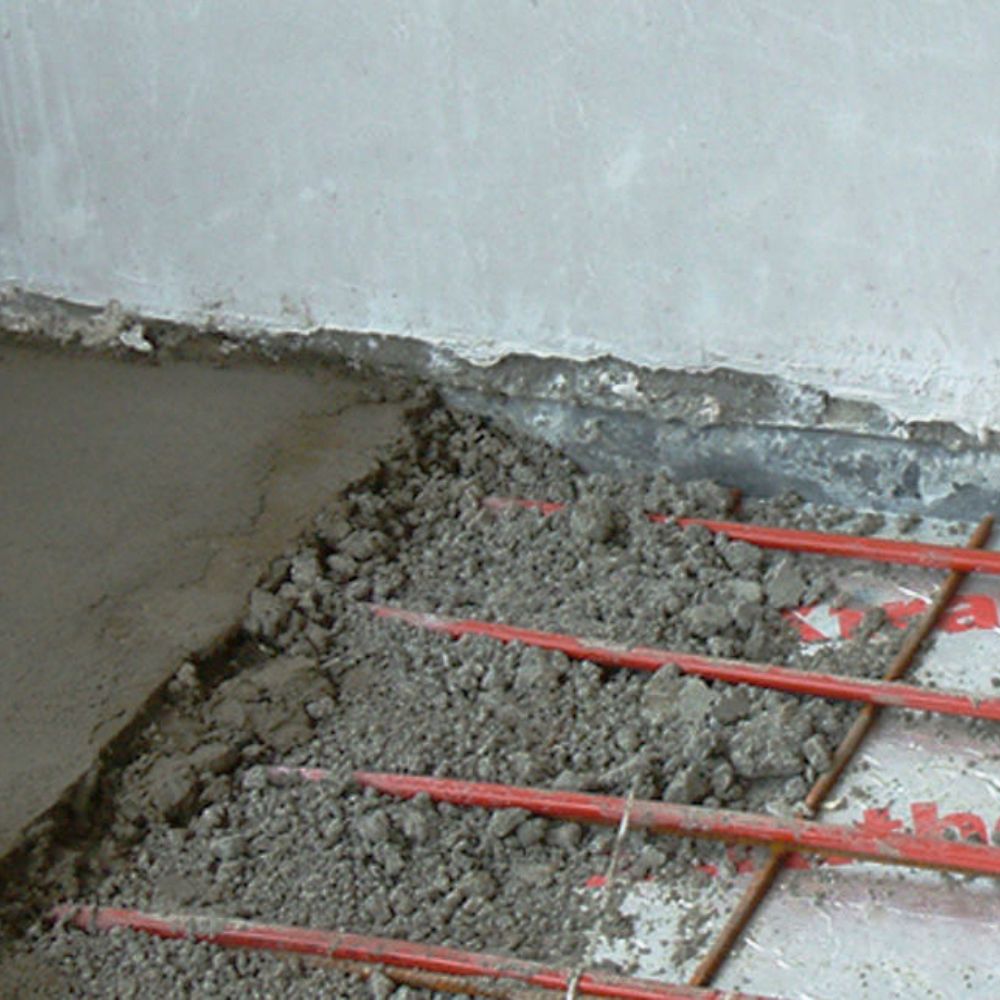

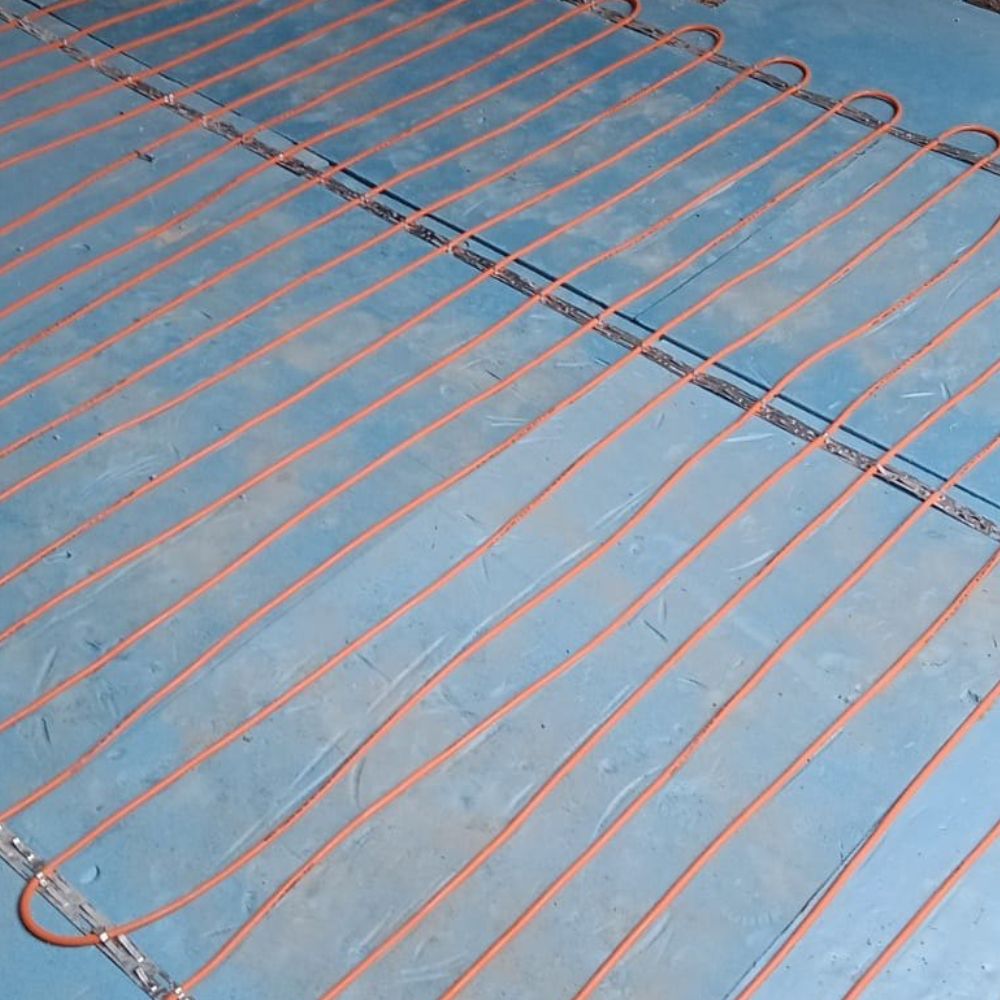

The cables are now laid and you will then need to pump 50-75mm of concrete screed over the top of the heating cables. And finally, the tiles can be stuck down with a standard 6mm bed of flexible adhesive. Please also ensure that the tiles are laid with an even bed of adhesive for equal heat distribution. So, in conclusion, the floor will be raised, dependent on a few variables by approximately:

  • 4mm Bed of flexible adhesive
  • 6mm Insulation board. (10mm & 20mm insulation also available)
  • 2.5mm In Screed Heating Cable. Enveloped into the concrete screed
  • 50-75mm Concrete screed
  • 6mm Bed of tile adhesive
  • Tiles in this example 10mm tiles

Making a total of an additional Inscreed electric underfloor heating floor height of 76mm thick, dependent on your chosen variables of insulation and tile heights.

Living Heat Underfloor Heating Design Service At Living Heat we offer a free design service to make the whole process a little easier. If you would like a free quote or just a little more information please feel free to get in touch with us at 01803 316131. Our time and advice are free and we can recommend the best underfloor heating system for you.

Additional information


, , , , , , , , , , , , , , , , , , , , , , ,


, , , , , , , , ,

Power Rating

180 Watts sqm
