In screed Heating Cable 180W/M²
From: £25.99 Inc. VAT
£21.66 Ex. VAT
Electric Underfloor Heating In Screed Cable
Our In Screed electric heating cables are designed to be embedded under a 50–75mm concrete screed, making them ideal for new builds or extensions.
Once installed, they require minimal maintenance, similar to water-based UFH systems.
The cable is powerful, durable, and quick to lay. Suitable for all floor coverings and backed by a lifetime warranty, it adapts well when the final floor finish is undecided.
- For new builds or extensions
- Domestic or commercial use
- IPX7 waterproof rating
- Primary or secondary heating
- Compatible with all floor coverings
- Use with HC Decoupling
- Use with XPS Boards & Tile Backers
- Compatible with Kingspan or Celotex
- Embed in 50–75mm concrete screed
- Multiple wire sizes available
- Free technical assistance & after-sales support
- Lifetime guarantee
- Next-day delivery
| InScreed Heating Cable Kits Include | |
|---|---|
| Heating Cable | Programmable air/floor thermostat (optional) |
| Floor Probe included with thermostat | High adhesion fixing tape |
| Lifetime warranty (thermostat 1 year) | Full fitting instructions |
| Free technical helpline | Next working day delivery |
In Screed Heating Cable Floor Build-Up
Start with a timber or concrete subfloor. Apply a 4mm flexible tile adhesive bed and fix the insulation boards.

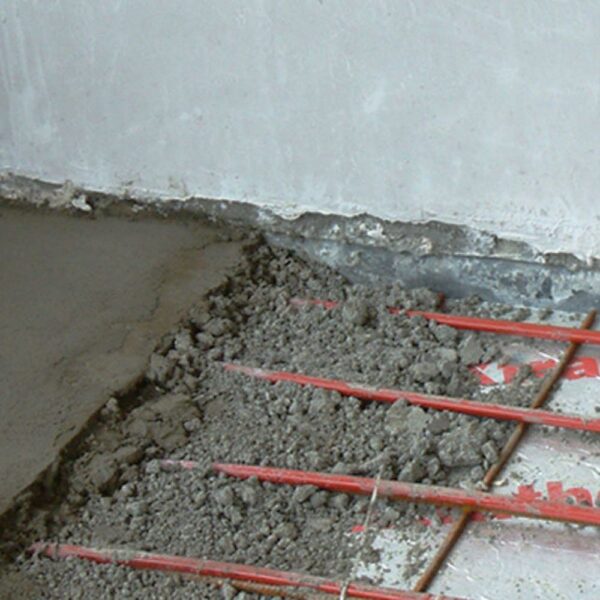

Lay the heating cables on the boards, then cover with 50–75mm concrete screed. Finish with a 6mm tile adhesive bed and tiles, ensuring even coverage for consistent heat.
- 4mm flexible adhesive
- 6mm insulation board (10mm & 20mm options available)
- 2.5mm InScreed heating cable embedded in concrete
- 50–75mm concrete screed
- 6mm tile adhesive
- 10mm tiles (example)
Total additional floor height: approx. 76mm (varies with insulation & tile thickness).
Free UFH Design Service: Living Heat offers a free design service to simplify your project. For a quote or advice, call 01803 316060.
Our expert guidance ensures the best underfloor heating system for your home or project.
Technical Information
Product Overview
Product Name: Electric Underfloor Heating InScreed Cable
Brand: Living Heat
System Type: In-floor electric underfloor heating
Installation Method: Embedded under concrete screed
Primary Use: New builds and extensions during construction
Electrical & Thermal Performance
Heating Type: Electric heating cable
Heat Delivery: Radiant heat from embedded cable in screed
Maintenance: Minimal (comparable to water-based UFH once installed)

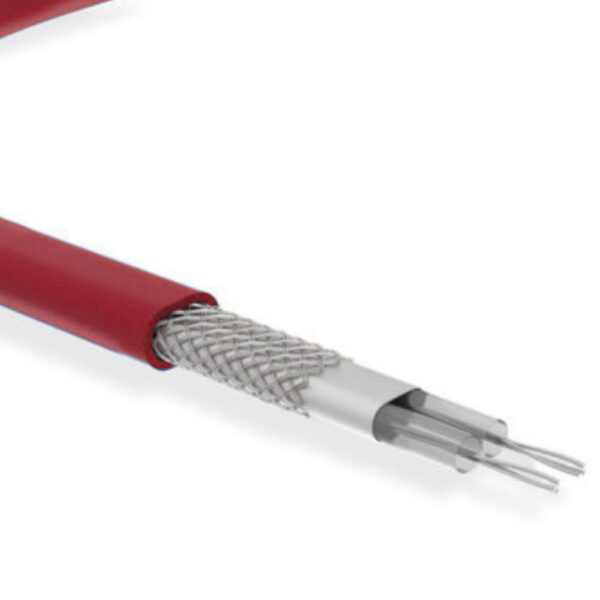

Cable Construction
Cable Type: InScreed heating cable
Durability: Ultra-powerful and highly durable
Wire Sizes: Multiple wire sizes available to suit different room sizes and requirements
Installation Requirements
Screed Embedment: 50–75 mm concrete screed over cable
Subfloor Compatibility: Timber or concrete subfloors
Installation Steps:
Apply 4 mm flexible tile adhesive to subfloor
Fix insulation boards
Lay InScreed heating cable on boards
Pour 50–75 mm concrete screed over cable
Apply 6 mm tile adhesive and finish with tiles
Floor Build-Up Example
Indicative floor build-up from subfloor up:
4 mm flexible adhesive (for insulation boards)
6 mm insulation board (10 mm & 20 mm options available)
2.5 mm InScreed heating cable (embedded in concrete)
50–75 mm concrete screed
6 mm flexible tile adhesive
10 mm tiles (example thickness)
Approximate floor height increase: ~76 mm (varies with insulation and tile thickness)
Compatibility
Floor Coverings: Compatible with all floor coverings
Systems & Accessories:
Works with HC decoupling matting
Compatible with XPS insulation boards and tile backers
Can be used with external insulation brands (e.g., Kingspan, Celotex)
Ratings & Standards
Water Resistance: IPX7 waterproof rating
Suitability: Domestic & commercial applications
Heating Role: Suitable as primary or secondary heat source
Warranty & Support
Warranty: Lifetime guarantee on heating cable
Thermostat Warranty: 1-year (when included)
Technical Support: Free dedicated helpline
After-Sales Support: Included
Delivery: Next working day available
Kit Contents (where applicable)

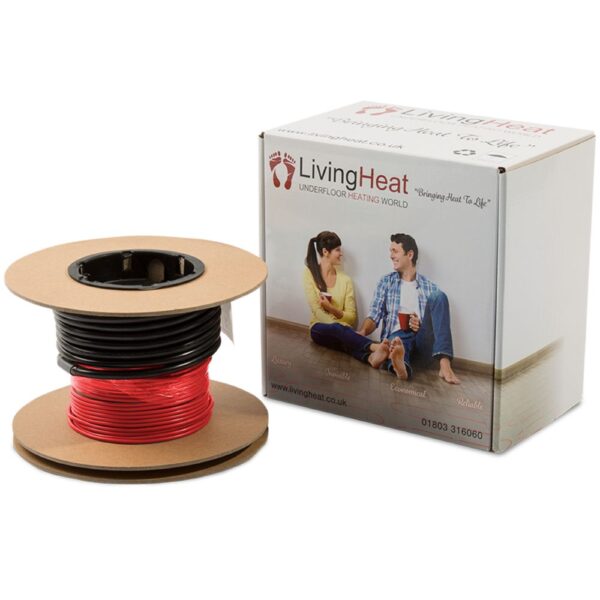

Heating cable
Optional programmable air & floor thermostat
Floor probe with thermostat
Fixing tape
Full fitting instructions
Free technical helpline
Next working day delivery
