XPS Hard Underfloor Heating Insulation Boards

From: £2.19 Inc. VAT
£1.83 Ex. VAT

Loading...
Part No: N/A

XPS hard underfloor heating insulation boards are perfect for use with all underfloor heating mats and cables. Suitable for use under tiles, wood laminate, carpet and vinyl flooring. They block the cold from below and make sure the heat is sent up into the floor covering and room above. They are light weigh, easy to cut and simple to install. Starting at only 6mm thick they will also not build up your floor levels to much.

XPS Hard Insulation Boards

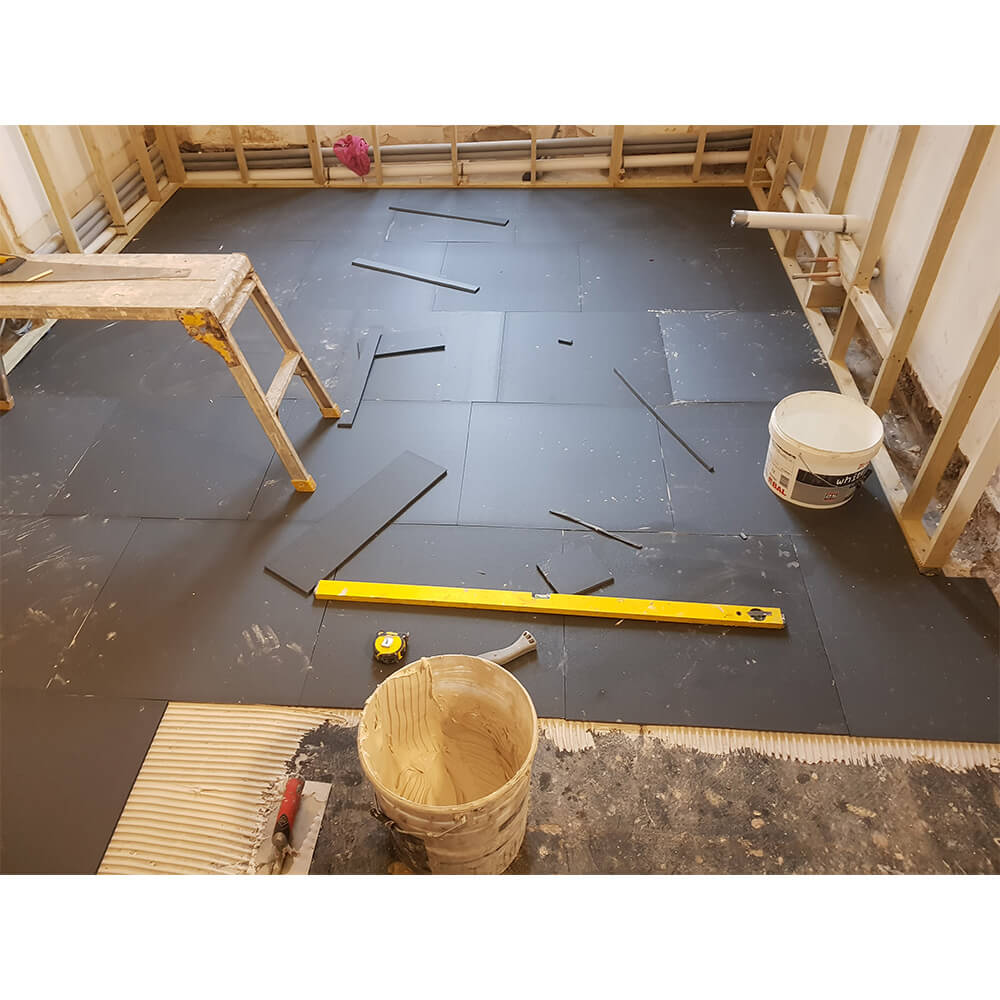

Living Heat XPS Insulation boards can be stuck down with the same flexible tile adhesive being used to complete your tiling. We would recommend that you use the 10mm, thick insulation boards. However, if you do have any height restrictions, as a result the 6mm hard insulation boards will deflect most of your heat upwards.

Increasing both the efficiency and the response rate of your underfloor heating system. Our hard insulation boards measure 620 x 600mm or 600 x 600mm for 20mm boards, making them super easy to handle.

They have been specially designed for use with our underfloor heating systems. The insulation boards provide a high thermal barrier between the subfloor and also the final floor covering.

This greatly increases the efficiency of the system and reduces any heat loss. Available in 6, 10, 20 & 30mm depths these insulation boards are designed for use under tile and stone floors, and can also be used under wooden or laminate floors.

Information
  • Available in 6, 10, 20 & 30mm
  • Zero Ozone Depletion Certified
  • Domestic Or Commercial Installs
  • 100% Waterproof
  • Compatible With Most Floor Types
  • Fixed Down With Adhesive
  • Can Be Used With Self Level
  • View Data Sheet Here
  • Aids Efficiency & Response
  • Free Design & Quotation Service
  • Free Technical Assistance
  • After Sales Support
  • Next Day Delivery Service
Features
High Compression Loading. 35tons/m 2Waterproof
Safe and easy to handleEasy to cut and install
Greatly reduces heat lossSpeeds up response rate of the heating system
Increases efficiency of the heating system Not suitable with mosaics
Underfloor Heating Insulation
Underfloor Heating & Flexible Adhesive for Underfloor Heating Insulation

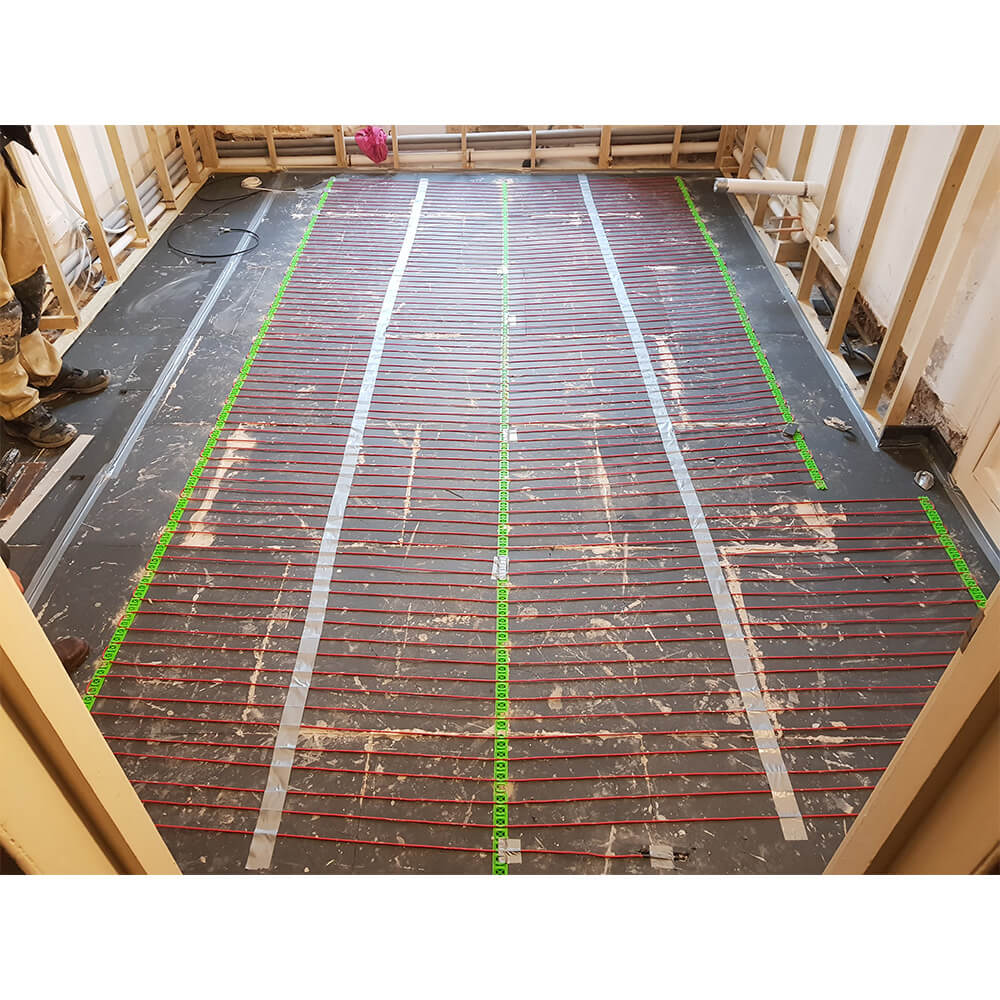

Our under tile underfloor heating cables and under floor heating mats can go directly onto these heating insulation boards.

Our rapid setting flexible adhesives are readily available and are suitable for under-tile, underfloor heating systems. If you have any questions or would just like a little advice please feel free to give us a call our time and advice is free and we are always here to help.

Underfloor Heating Insulation
Underfloor Heating Leveling Compound

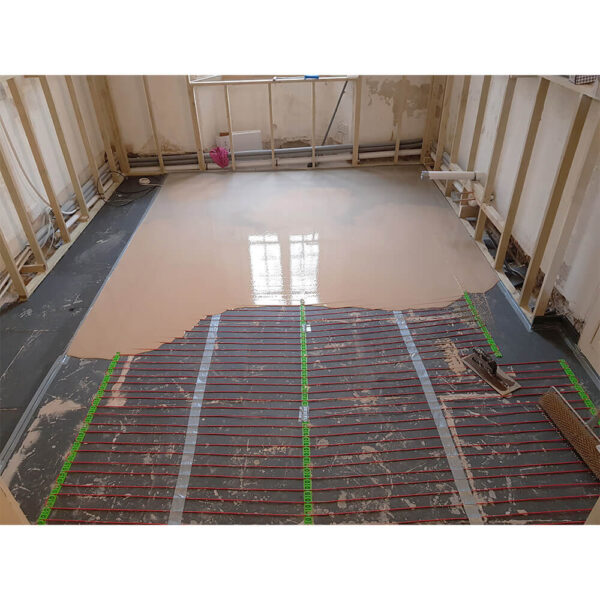

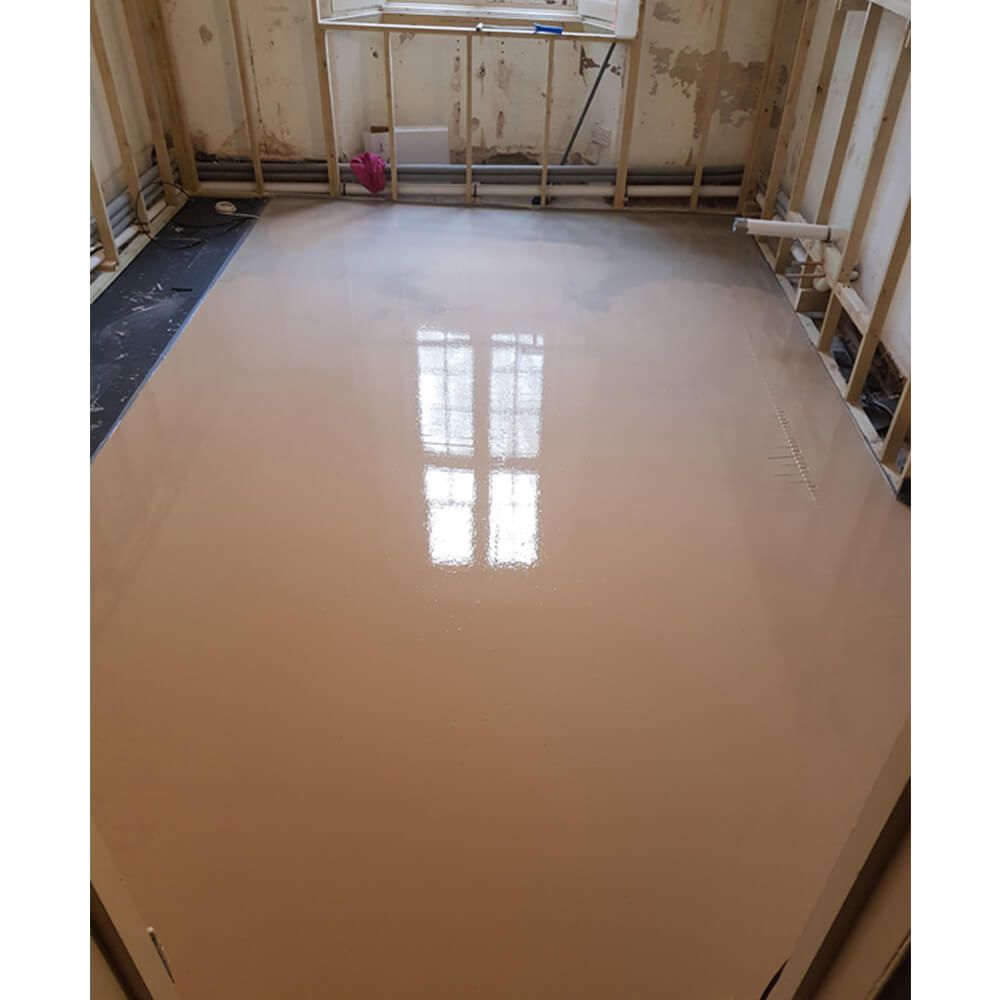

We also offer fantastically innovative levelling compounds. You simply mix the bag and bottle and it creates the perfect consistency to level your floor.

It also has some benefits when laying underfloor heating in that it creates a super even conduction of heat and protects the cable whilst tiling.

Additional information

Thickness

6mm, 10mm, 20mm, 30mm

Board Size

620 x 600mm

Covers

0.37sqm

Delivery

We offer next working day delivery for virtually all products and standard UK mainland addresses. If you are not in a standard mainland address our delivery costs vary according to order size and location. For more information please feel free to send us an email or give us a call on 01803 316060. We are here to help.
Orders placed before 12:00 pm will be dispatched that day for a next working day delivery to all UK mainland addresses excluding, Channel Islands & Eire on our entire range of heating products.
DPD Courier Services
Click Logo for DPD Tracking
DX EXPRESS Courier Services
Click Logo for DX EXPRESS Tracking
PALLEX Palletised Courier Services
Click Logo for PALLEX Tracking

Downloads

Download XPS Insulation Boards Data Sheet
