Underfloor heating Insulation

Living Heat underfloor heating insulation boards have been specially designed to provide a high thermal barrier between sub-floors and floor coverings. When used in conjunction with all under floor heating systems it greatly increases efficiency and reduces heat loss.

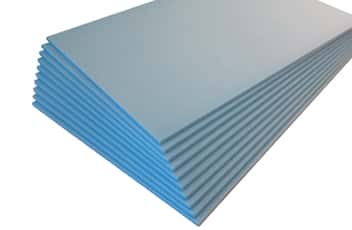

Hard thermal insulation

For use under

Tile

Natural Stone

Characteristics

# High thermal insulation capacity, (blocks out cold).

# Totally inert, (doesn't degrade with time or conditions).

# Light easy and safe to handle.

# Easy to cut with sharp knife / fine tooth saw.

# Resistant to tile, building cement and most other building compounds.

# Water and damp proof.

# High compression ratio. (minimum 30 tonnes, (yes tonnes!) per m2)

# Environmentally friendly.

Technical Specifications

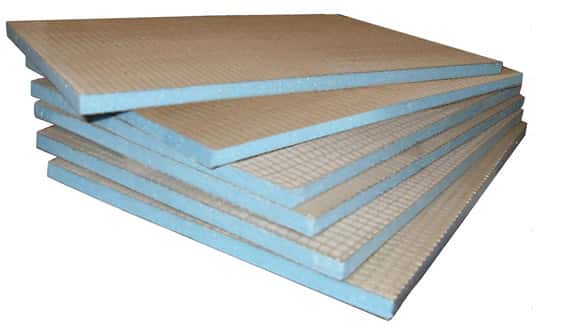

Cementatious insulation

For use under

Tile

Natural Stone

Characteristics

# High thermal insulation capacity, (blocks out the cold).

# Totally inert, (does not degrade with time or external conditions).

# Light easy and safe to handle.

# Easy to cut with sharp knife / fine tooth saw.

# Resistant to tile cement, building cement and most other building compounds.

# Water and damp proof.

# High compression ratio, (40 tonnes, yes tonnes! per m2).

# Environmentally friendly.

# dimensionally stable, (will not twist or buckle when exposed to moisture of heat).

#Excellent sound insulation, (reduces sound reverberation / impact sound).

Technical Specifications

Impact + Thermal insulation

For use under

Tile

Natural Stone

Characteristics

# High thermal insulation capacity, (blocks out cold).

# Totally inert, (does not degrade with time or external conditions).

# Light easy and safe to handle.

# Easy to cut with sharp knife / fine tooth saw.

# Closed Cell, Cross linked cell construction, (Increased strength, compression and thermal properties)

# Water and damp proof.

# Environmentally friendly.

Technical Specifications

Heatsave insulation is manufactured in compliance with BS EN ISO 9001:2001 and certified by BBA Certificate 04/4186. Heatsave insulation also complies with BS EN 13164: 2001 Thermal insulation products for buildings

Thermal Conductivity W/mK	0.029	Prevents heat loss
Thermal Resistance m2K/W	0.85	Blocks out cold
Soft insulation Nominal Density Kg/m3	33	weight of 1 cubic meter
Soft insulation Compression Strength KPa 25%	24	Will compress by no more than 25% with loads of up to 2.4tones per m2.
hard insulation Nominal Density Kg/m3	35	weight of 1 cubic meter
Hard insulation Minimum / maximum compression strength KPa	300/400	A minimum of 30 metric tonnes, (yes tonnes!) can be placed on 1 square meter without damage
Water penetration (96 hours)	0.00	Waterproof.
