Living Heat Thermostats
Digital Thermostat |
Touch Screen Thermostat |
Manual Thermostat |
Underfloor heating Digital Programmable Air / Floor Thermostats are simple to install and use with a large LCD display. They are designed to be used with almost all standard underfloor heating systems.
Digital Thermostat
|
Key Features# 4 Timed Events x 7 day programmable cycle. # Holiday and economy power settings. # Manual over ride facility. # Air and Floor temperature sensors. # Blue LED back light for easy viewing. # Low Profile Design. # Fits standard 1G electrical wall box. # 1 years manufacturer's warranty. |
Technical Specifications# Supply Voltage 230/240v # 16amp / 3600watt max load* # Temperature Range 5oc - 45oc # Extendable 3-15m floor probe. |

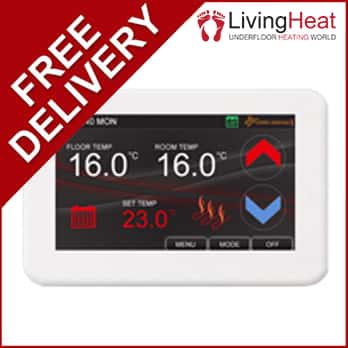

Touch Screen Thermostat
|
Key Features# 4 Timed Events x 7 day programmable cycle. # Large easy view Touch Screen. # Holiday and economy power settings. # Manual over ride facility. # Air and Floor temperature sensors. # LED back light for easy viewing. # Low Profile Design. # Fits standard 1G deep electrical wall box. #1 years manufacturer's warranty. |
|
Technical Specifications# Supply Voltage 230/240v # 16amp / 3600watt max load* # Temperature Range 5oc - 45oc # Extendable 3-15m floor probe. |
Manual Thermostat
|
Key Features# # # # # # # # |
Technical Specifications# # # # |
Please note that the underfloor heating thermostat can run a maximum of 16amps or 3600watts of heating. If larger loads are required a relay switch should be incorporated into the system or an additional thermostat should be fitted.
All under floor heating systems should be connected through a suitable RCD (residual current device). This can be from the main fuse board within the property or as part of the under floor heating power supply.
All our thermostats come with full wiring and fitting instructions. If you would like further information on our thermostats or about what type of under floor heating systems they are suitable for use with, please do not hesitate to contact living heat where one of the team will be happy to help.
